Photometric
- Item code
- LP-DL181718
- Output
- 2,160 lm · 18 W
- Beam angle
- 38°
- Peak intensity
- 4,998 cd
- Centre lux at 2 m / 3 m
- 1,249 / 555 lx
- Beam width at 3 m
- 2.07 m
- UGR
- <19
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Down Lights
Serie
White RAL 9010

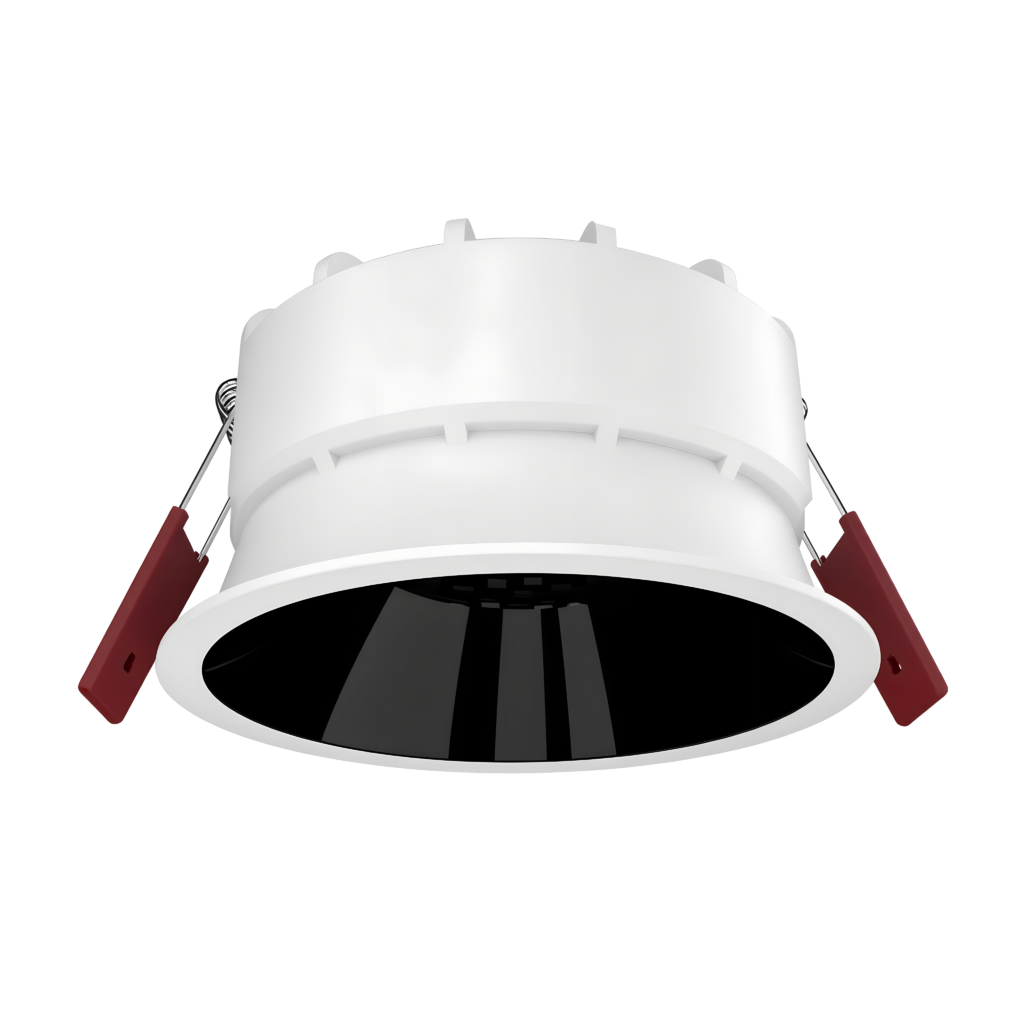

Serie LED Down Light is recessed downlight with die-cast aluminium body, die-cast aluminium heat sink, solid springs and chrome reflector. COB high power LED chip provides perfect combination of high lighting efficiency, comfortable lighting and humanization design, made by high quality Aluminum profile. The item is very professional and it has all the characteristics to be involved in any kind of architectural or design project, it is designed for general lighting applications in office, supermarket, shop, school, hotel, etc.. it is also widely used for public areas, such as stairway, lobby, reception.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-DL181712 | 12W | LED | 1440lm | A84 x B52 x C75 mm |
| LP-DL181718 | 18W | LED | 2160lm | A100 x B64 x C90 mm |
| LP-DL181724 | 24W | LED | 2880lm | A126 x B70 x C115 mm |
Technical Specification
Construction
HousingDie-casting Aluminum
DiffuserTempered Glass Diffuser
Color AvailableWhite RAL 9010
ReflectorAluminium Reflector
Optical & Performance
Beam Angle24° / 38° / 45° / 60°
Lifespan>50,000 Hours (L90 B10)
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-25°C ~ 50°C
IP Rating54
TMSeries WiringRohsRecycleProtectionPluginLM 80IndoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
