Photometric
- Item code
- LP-DL2050210
- Output
- 2,400 lm · 20 W
- Beam angle
- 36°
- Peak intensity
- 6,175 cd
- Centre lux at 2 m / 3 m
- 1,544 / 686 lx
- Beam width at 3 m
- 1.95 m
- UGR
- <19
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.

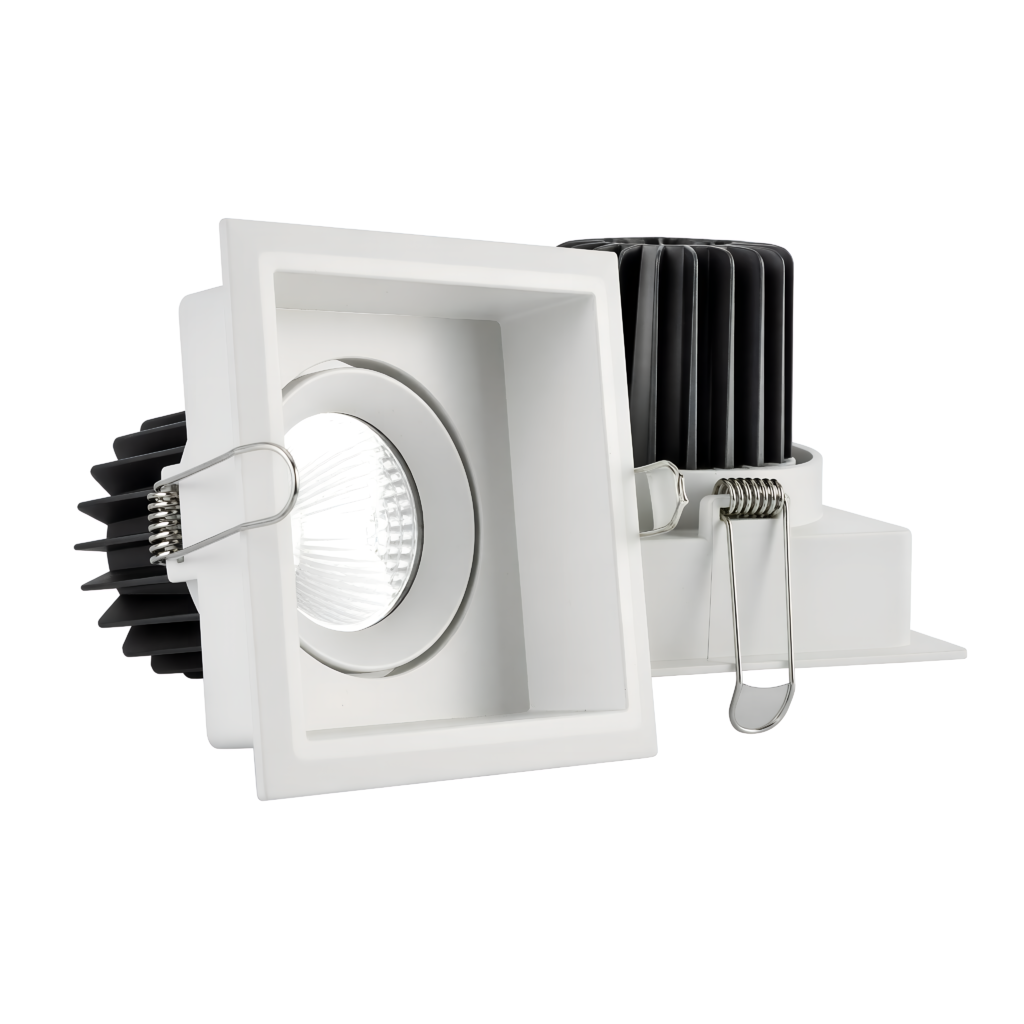

Down Lights
Meade
White
Attractive adjustable multiple downlights for prestigious lighting of offices, banks, hotels, restaurants, corridors, foyers, sales, exhibition and conference rooms, as well as residential areas. It is well integrated LED chip and dimmable Phase cut-off or DALI driver.
Item Codes

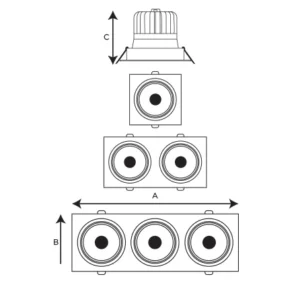

| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-DL2050107 | 1X07W | LED | 840lm | A115 X B115 X C100 mm |
| LP-DL2050110 | 1X10W | LED | 1200lm | A115 X B115 X C100 mm |
| LP-DL2050115 | 1X15W | LED | 1800lm | A115 X B115 X C100 mm |
| LP-DL2050210 | 2X10W | LED | 2400lm | A230 X B115 X C100 mm |
| LP-DL2050215 | 2X15W | LED | 3600lm | A230 X B115 X C100 mm |
| LP-DL2045310 | 3X10W | LED | 3600lm | A285 X B115 X C100 mm |
| LP-DL2045315 | 3X15W | LED | 5400lm | A285 X B115 X C100 mm |
Technical Specification
Construction
HousingLuminaire Body of die-cast Aluminum, White, powder-coated. Luminaire body and Heat Sink form a Compact Unit
DiffuserClear Tempered Glass
Color AvailableWhite
ReflectorAluminium Reflector
Optical & Performance
Beam Angle15° / 24° / 36° / 45°
Lifespan>50,000 Hours (L90 B10) / >75,000 Hours (L80 B20) / >100,000 Hours (L70 B50)
Electrical
VoltageAC100~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-40C° ~ 50C°
IP Rating54
IK08
TMSeries WiringRohsRecycleProtectionPluginLM 80IndoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
