Photometric
- Item code
- LP-DL918420
- Output
- 2,400 lm · 20 W
- Beam angle
- 36°
- Peak intensity
- 6,175 cd
- Centre lux at 2 m / 3 m
- 1,544 / 686 lx
- Beam width at 3 m
- 1.95 m
- UGR
- <19
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Down Lights

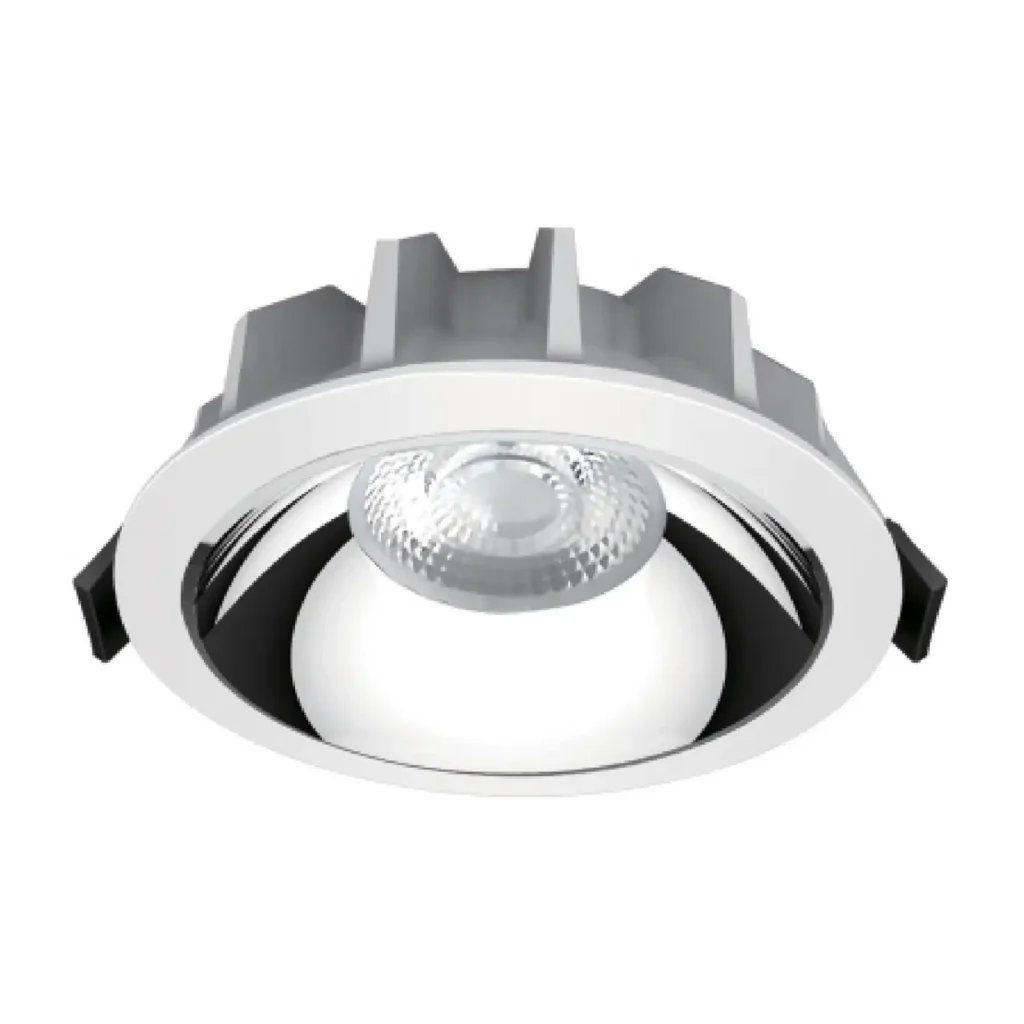

NOVA
Black
Silver and Grey
White
This focused lighting solution is crafted from robust die-cast aluminum with a protective, high-quality finish, ensuring long term durability and resistance to typical indoor wear. Designed for recessed ceiling installation, it combines a sleek, discreet aesthetic with powerful, energy-efficient LED illumination, enhancing indoor spaces with both elegance and reliable performance.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-DL918415 | 15W | LED | 1800lm | A105 X B42 mm |
| LP-DL918420 | 20W | LED | 2400lm | A136 X B50 mm |
| LP-DL918430 | 30W | LED | 3600lm | A162 X B58 mm |
| LP-DL918440 | 40W | LED | 4800lm | A213 X B66 mm |
Technical Specification
Construction
HousingDie Cast Aluminum, Highly pure powder coating.
DiffuserOptical PMMA Lens
Color AvailableWhite, Black, Silver and Grey
ReflectorAluminum Reflector
Optical & Performance
Beam Angle15° / 24° / 36° / 60°
Lifespan>50,000 Hours (L80 B10)
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-30C° ~ +65C°
IP Rating54
