Photometric
- Item code
- LP-S177525
- Output
- 3,000 lm · 25 W
- Beam angle
- 38°
- Peak intensity
- 6,941 cd
- Centre lux at 2 m / 3 m
- 1,735 / 771 lx
- Beam width at 3 m
- 2.07 m
- BUG rating
- B3-U0-G0
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Down Lights
Ranger
White

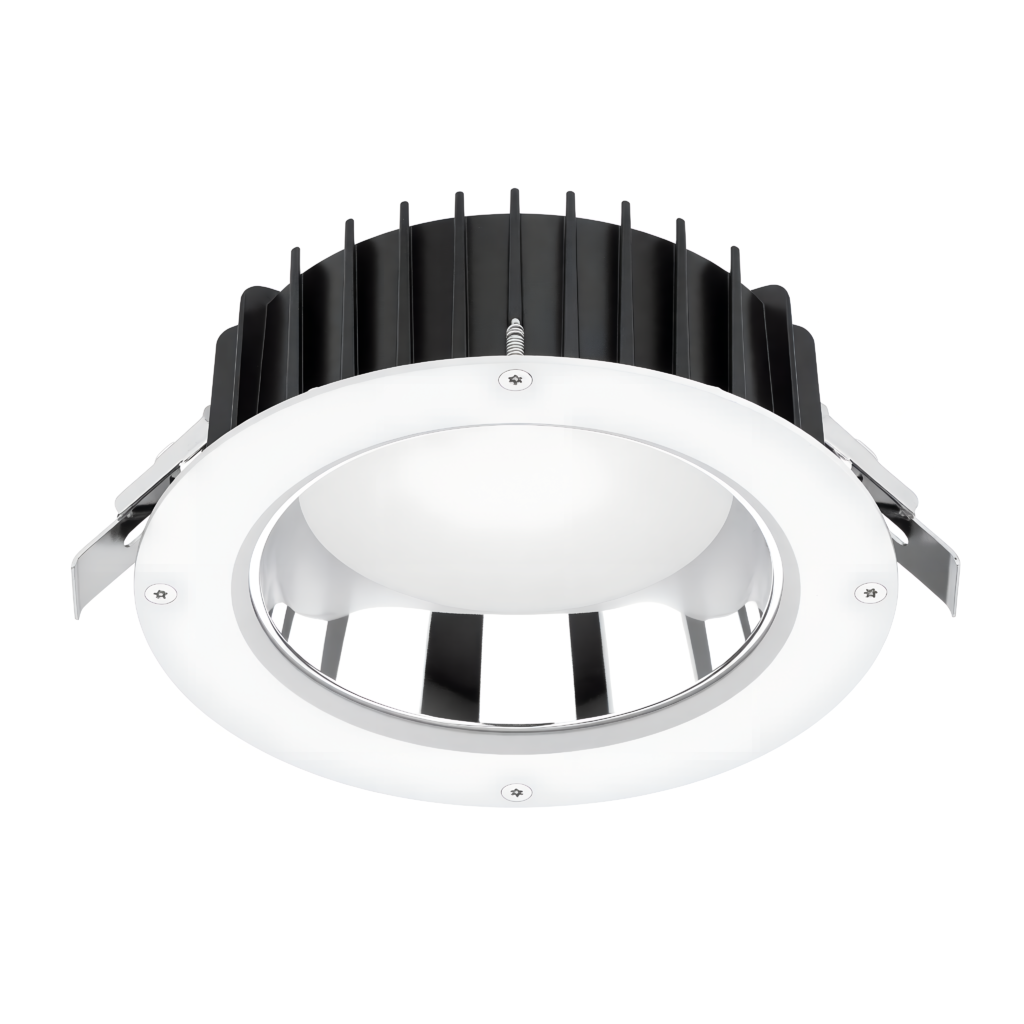

Ranger downlight with traditional deep reflector which provides a perfect combination of high lighting efficiency, comfortable lighting and low glare design, without compromising on lighting performance (color rendering and color uniformity). Two kinds of light source COB and SMD for option. ADC12 aluminum housing provides a great thermal management, IP65 waterproof with high protection level, which offers a wider application area.
Item Codes

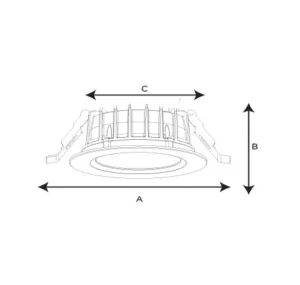

| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-S177510 | 10W | LED | 1200lm | A110 X B51 X C90 mm |
| LP-S177513 | 13W | LED | 1560lm | A110 X B51 X C90 mm |
| LP-S177518 | 18W | LED | 2160lm | A150 X B64 X C125 mm |
| LP-S177525 | 25W | LED | 3000lm | A172 X B69 X C125 mm |
| LP-S177530 | 30W | LED | 3600lm | A172 X B69 X C125 mm |
| LP-S177535 | 35W | LED | 4200lm | A235 X B81 X C200 mm |
| LP-S177540 | 40W | LED | 4800lm | A235 X B81 X C200 mm |
Technical Specification
Construction
HousingLuminaire Body of Die-cast aluminum Heatsink Form a Compact Unit, White Powdered Coated
DiffuserOpal / PMMA / Polycarbonate
Color AvailableWhite
ReflectorAluminium Reflector
Optical & Performance
Beam Angle24° / 38° / 45° / 60°
Lifespan>50,000 Hours (L90 B10)
UGR<19, <22
LUMINOUS EFFICACY (LM/W)120
MACADAM<3
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-20°C ~ +45°C
IP Rating65
IK10
