Photometric
- Item code
- LP-DL179518
- Output
- 2,160 lm · 18 W
- Beam angle
- 38°
- Peak intensity
- 4,998 cd
- Centre lux at 2 m / 3 m
- 1,249 / 555 lx
- Beam width at 3 m
- 2.07 m
- UGR
- <19
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Down Lights
Lexo
White

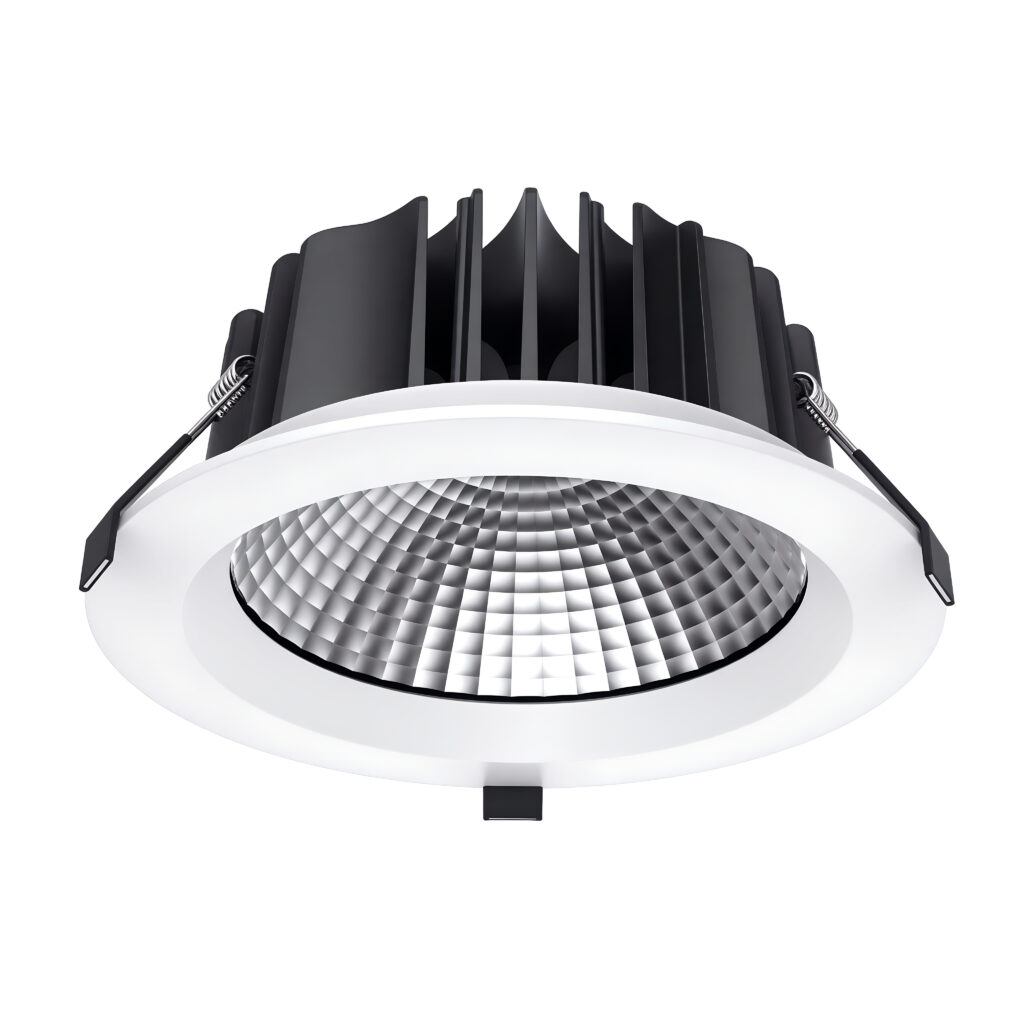

Lexo LED Down Light for indoor or outdoor mounting, powerful lumen output via the powerful recessed LED chip. Driver surface-mounted with quick junction box with quick clips for additional looping. Made of die-cast powder-coated aluminium, glass diffuser. Lexo downlight is unique designed with reflector and COB high power LED chip. ADC12 aluminum housing provides excellent thermal dissipation. LED Module design could save SKU and offer an easy module replacement. It supports a great compatibility for non- dim, triac dim, 0-10V, DALI dim with worldwide dimmers.
Item Codes

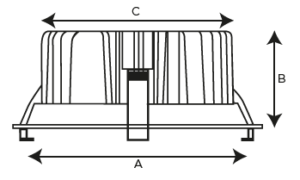

| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-DL179510 | 10W | LED | 1200m | A110XB53XC90mm |
| LP-DL179513 | 13W | LED | 1560lm | A110XB53XC90mm |
| LP-DL179518 | 18W | LED | 2160lm | A145XB65XC120mm |
| LP-DL179525 | 25W | LED | 3000lm | A190XB75XC160mm |
| LP-DL179535 | 35W | LED | 4200lm | A190XB75XC160mm |
| LP-DL179545 | 45W | LED | 5400lm | A225XB87XC200mm |
Technical Specification
Construction
HousingLuminaire Body of Die-cast Aluminum, White, Powder-coated
DiffuserTempered Frosted or Clear Tempered Glass
Color AvailableWhite
ReflectorAluminium Reflector
Optical & Performance
Beam Angle24° / 38° / 45° / 60°
Lifespan>50,000 Hours (L90 B10)
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-10C° ~ 50C°
IP Rating54
