Photometric
- Item code
- LP-DL174018
- Output
- 2,160 lm · 18 W
- Beam angle
- 38°
- Peak intensity
- 4,998 cd
- Centre lux at 2 m / 3 m
- 1,249 / 555 lx
- Beam width at 3 m
- 2.07 m
- UGR
- <19
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.

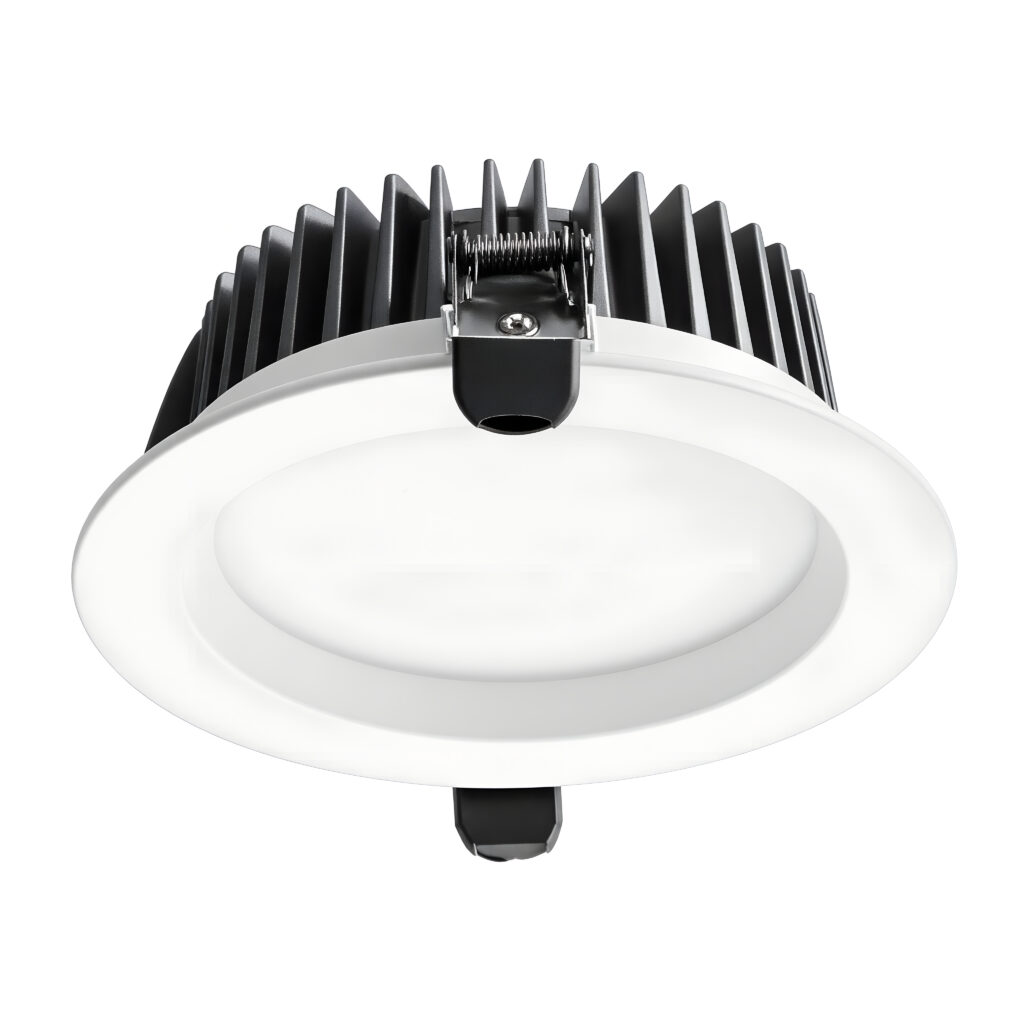

Panela
Panela LED Down Light is recongnised as one of the most trusted and highly desirable consumer fitting, we manufactured it to the highest standards. This superior design skillfully prevent the human eyes contact with the light sources directly, makes the light more soft. Meanwhile the light efficiency reach to 120lm/w with perfect accent lighting performance. That makes it become the priority selected product for commercial lighting. Great cooling fins heat sink design increases the interface between heat sink and air, which makes the heat dissipating performance outstanding and extend the service life of the downlight. Suitable for commercial and residential applications like oce, supermarket, shop, school, hotel, restaurant, workshop, warehouse, home etc.
Item Codes

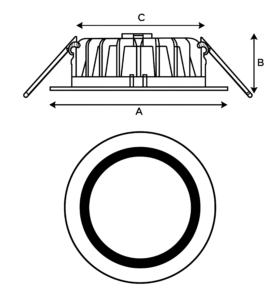

| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-DL174007 | 07W | LED | 840lm | A115 x B48 x C100 mm |
| LP-DL174012 | 12W | LED | 1440lm | A145 x B62 x C130 mm |
| LP-DL174015 | 15W | LED | 1800lm | A145 x B62 x C145 mm |
| LP-DL174018 | 18W | LED | 2160lm | A159 x B60 x C145 mm |
| LP-DL174020 | 20W | LED | 2400lm | A190 x B60 x C145 mm |
| LP-DL174025 | 25W | LED | 3000lm | A190 x B60 x C170 mm |
| LP-DL174030 | 30W | LED | 3600lm | A230 x B72 x C205 mm |
