Photometric
- Item code
- LP-DL181630
- Output
- 3,600 lm · 30 W
- Beam angle
- 38°
- Peak intensity
- 8,330 cd
- Centre lux at 2 m / 3 m
- 2,082 / 926 lx
- Beam width at 3 m
- 2.07 m
- UGR
- <19
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Down Lights
Shine
White

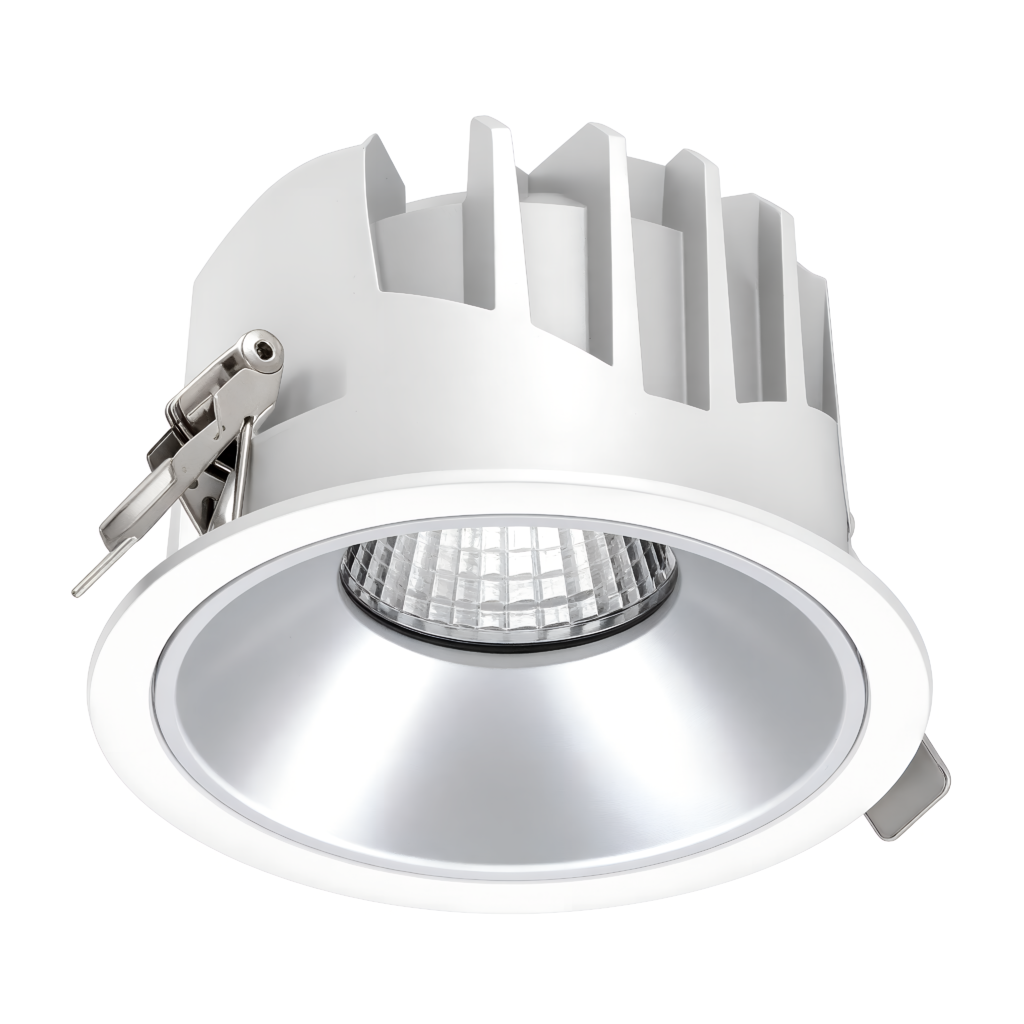

Shine LED Down Light is die-cast aluminium body, die-cast aluminium heat sink, solid springs and chrome reflector. COB high power LED chip provides perfect combination of high lighting efficiency, comfortable lighting and humanization design, made by high quality Aluminum profile. The item is very professional and it has all the characteristics to be involved in any kind of architectural or design project.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-DL181618 | 18W | LED | 2160lm | A101 x B60 x C85 mm |
| LP-DL181630 | 30W | LED | 3600lm | A140 x B73 x C120 mm |
| LP-DL181640 | 40W | LED | 4800lm | A180 x B94 x C160 mm |
| LP-DL181650 | 50W | LED | 6000lm | A212 x B110 x C195 mm |
Technical Specification
Construction
HousingLuminaire Body of Die-cast Aluminumand Heat Sink form a Compact Unit, White, Powder-coated
DiffuserClear Tempered Glass
Color AvailableWhite
ReflectorAluminium Reflector
Optical & Performance
Beam Angle24° / 38° / 45° / 60°
Lifespan>50,000 Hours (L90 B10)
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-25C° ~ 40C°
IP Rating54
IK08
TMSeries WiringRohsRecycleProtectionPluginLM 80IndoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
