Photometric
- Item code
- LP-SL172218
- Output
- 2,070 lm · 18 W
- Beam angle
- 38°
- Peak intensity
- 4,790 cd
- Centre lux at 2 m / 3 m
- 1,197 / 532 lx
- Beam width at 3 m
- 2.07 m
- UGR
- <19
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Down Lights

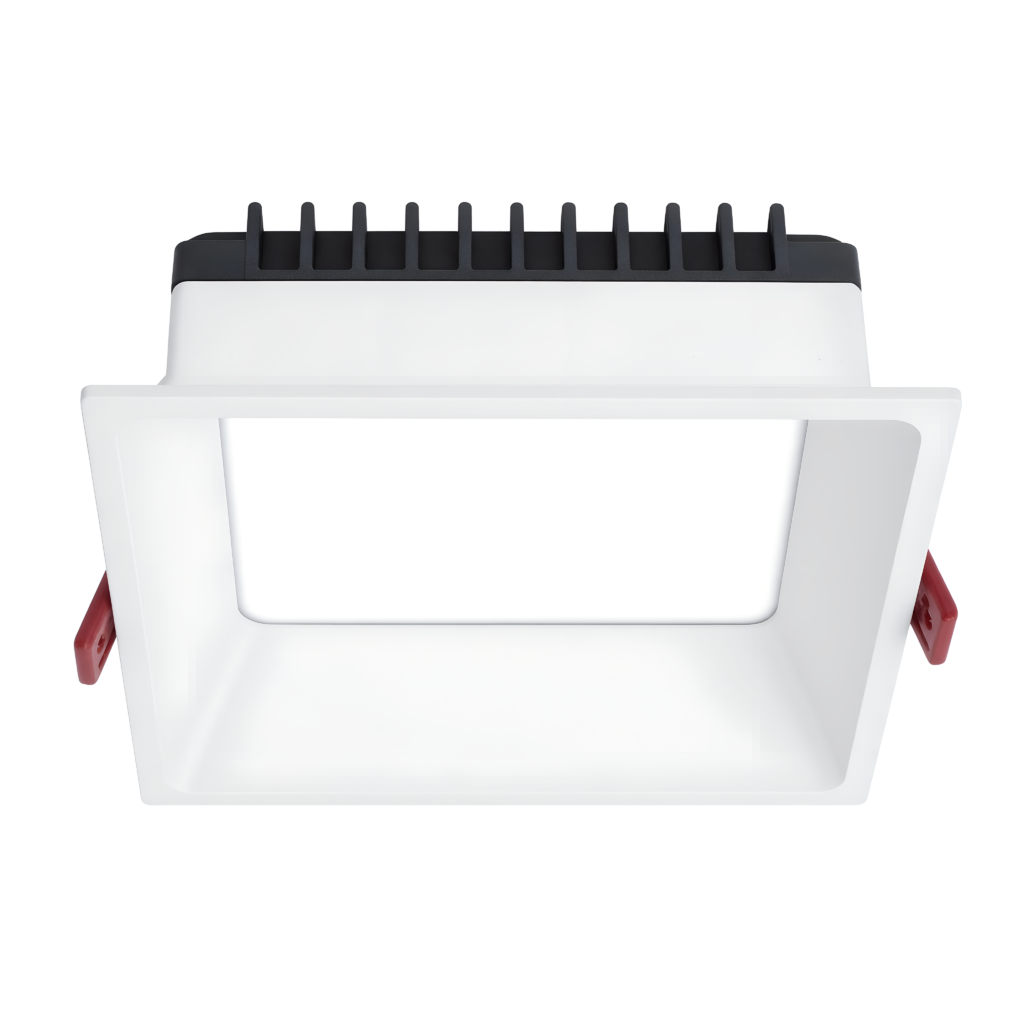

Cova
White
Cova LED Down Light Attractive exclusive downlight for indoor or outdoor use, particularly well suited to basic lighting due to its very low unified glare rating. The light efficiency reach up to 115lm/w with perfect accent lighting performance. That makes it become the priority selected product for commercial lighting. Great cooling fins heat sink design increases the interface between heat sink and air, which makes the heat dissipating performance outstanding and extend the service life of the downlight. Suitable for commercial and residential applications like office, supermarket, shop, school, hotel, restaurant, workshop, etc.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-SL172212 | 12W | LED | 1380lm | A100 X B100 X C26 mm |
| LP-SL172218 | 18W | LED | 2070lm | A145 X B145 X C53 mm |
| LP-SL172220 | 20W | LED | 2300lm | A170 X B170 X C53 mm |
| LP-SL172224 | 24W | LED | 2760lm | A170 X B170 X C54 mm |
Technical Specification
Construction
HousingDie-cast Aluminum Body, White Powder Coated
DiffuserPolycarbonate/PMMA
Color AvailableWhite
ReflectorAluminium Reflector
Optical & Performance
Beam Angle24° / 38° / 45° / 60°
Lifespan>50,000 Hours (L90 B10)
UGR<22
LUMINOUS EFFICACY (LM/W)115
MACADAM<3
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-10C° ~ 50C°
IP Rating44
IK06
TMSeries WiringRohsRecycleProtectionPluginLM 80IndoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
