Photometric
- Item code
- L+DL-2022-15
- Output
- 1,500 lm · 15 W
- Beam angle
- 100°
- Peak intensity
- 619 cd
- Centre lux at 2 m / 3 m
- 155 / 69 lx
- Beam width at 3 m
- 7.15 m
- BUG rating
- B1-U0-G0
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Down Lights

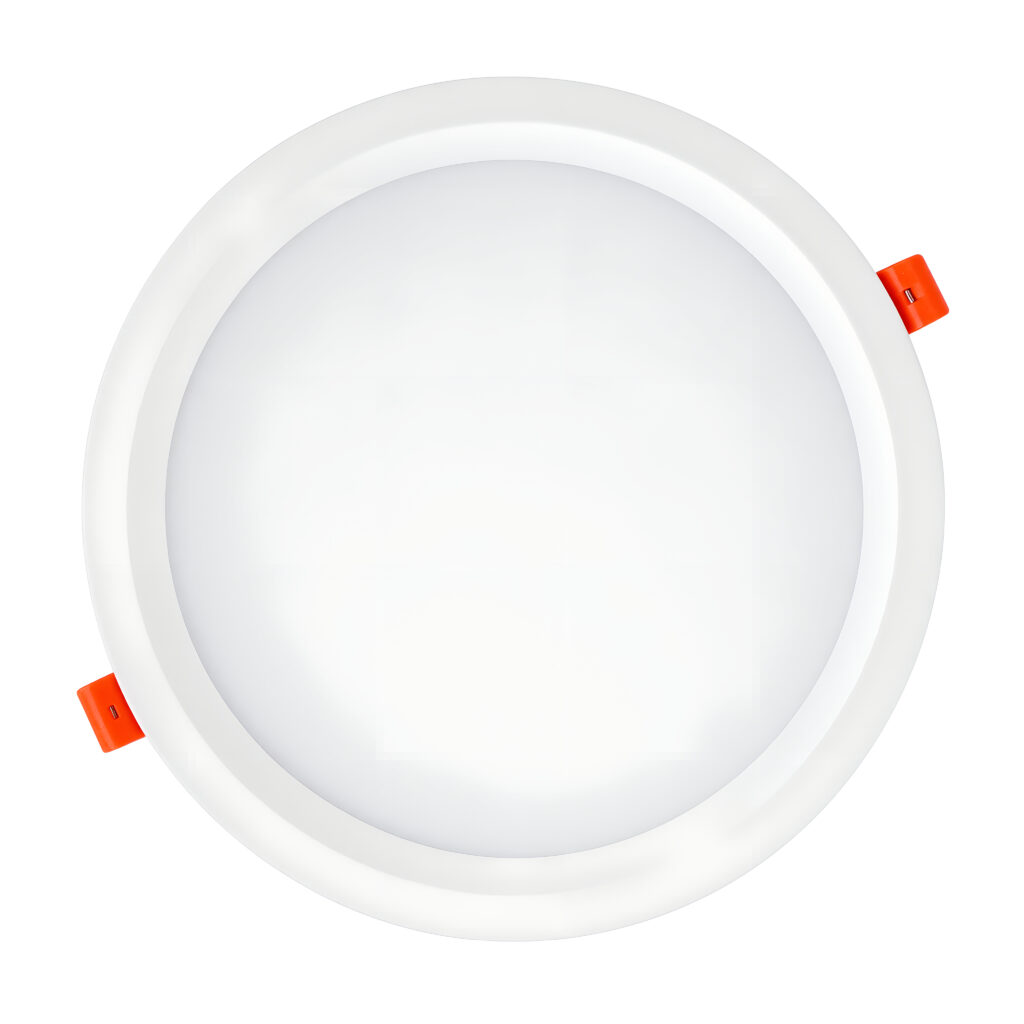

Panelo-II
Panelo II is attractive LED Panel downlight for prestigious lighting of oces, banks, hotels, restaurants, corridors, foyers, sales, exhibition and conference rooms, as well as residential areas.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| L+DL-2022-7 | 07W | LED | 700lm | 100mm X 30mm |
| L+DL-2022-12 | 12W | LED | 1200lm | 120mm X 30mm |
| L+DL-2022-15 | 15W | LED | 1500lm | 145mm X 30mm |
| L+DL-2022-18 | 18W | LED | 1800lm | 170mm X 40mm |
| L+DL-2022-30 | 30W | LED | 3000lm | 225mm X 40mm |
Technical Specification
Optical & Performance
Beam Angle100°
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
IP RatingIP40/44
Working Temperature-35C° ~ 65C°
Further Details
Panel Light LED2835, 26~28lm ( High Lumin Chip) CRI>70
Body MaterialAluminium
LGPPS
InputAC 180~265V mark
