Photometric
- Item code
- LP-ODL232512
- Output
- 1,440 lm · 12 W
- Beam angle
- 36°
- Peak intensity
- 3,705 cd
- Centre lux at 2 m / 3 m
- 926 / 412 lx
- Beam width at 3 m
- 1.95 m
- BUG rating
- B2-U0-G0
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Ceiling Surface Lights

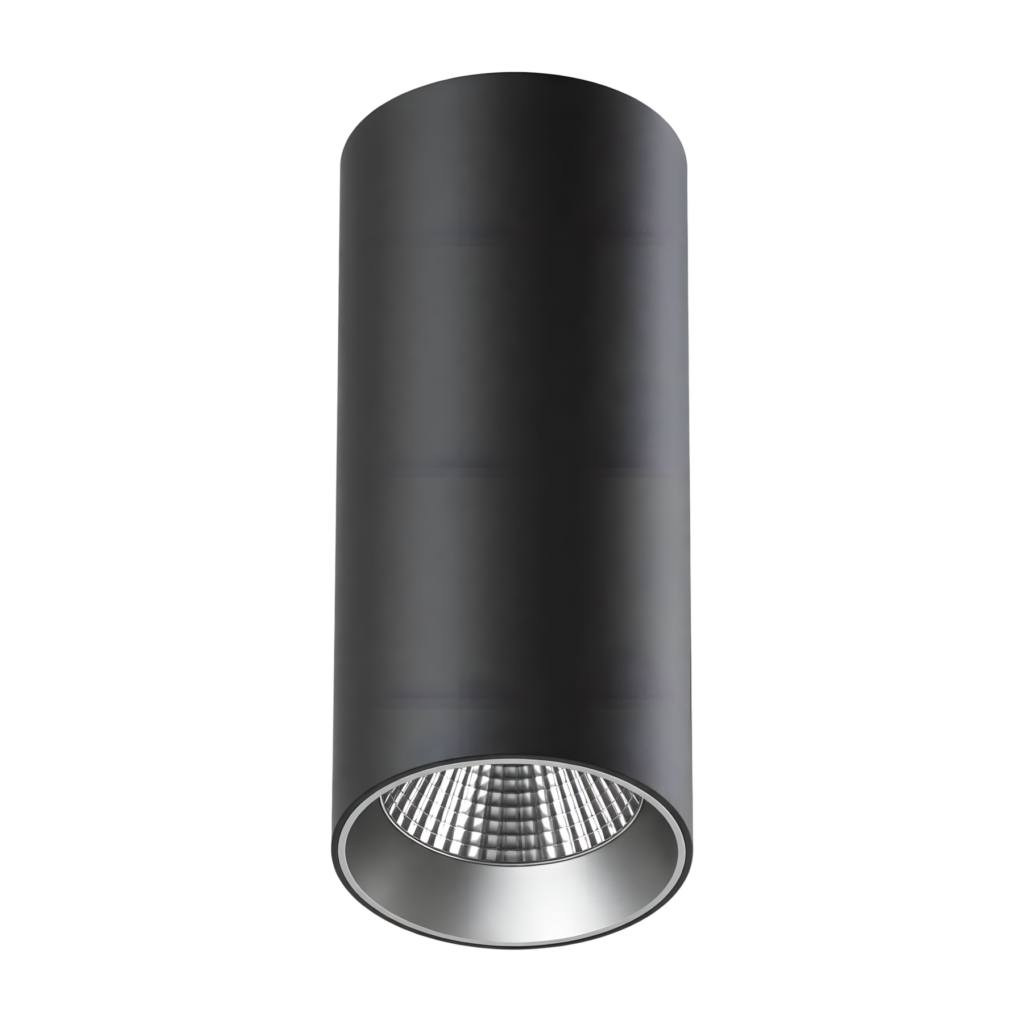

Pop II
White & Black
Pop-II Cylinder lamp adopts straightforward design with stylish appearance with high quality COB LED chip with high lumen and pure color. The color of surface ring is replaceable, which could create diversified light atmosphere according to different environment. The AL6063 Aluminum radiator in sand blast oxidation treatment provides excellent heat dissipation and corrosion resistance. The built-in power supply with high conversion efficiency is stable and reliable. It is very suitable for star hotel, restaurant, shopping mall, villa, residence and other high-end projects.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-ODL232509 | 09W | LED | 1080lm | A60 X B150 mm |
| LP-ODL232512 | 12W | LED | 1440lm | A60 X B150 mm |
| LP-ODL232515 | 15W | LED | 1800lm | A80 X B150 mm |
| LP-ODL232518 | 18W | LED | 2160lm | A80 X B180 mm |
Technical Specification
Construction
HousingDie Cast Aluminum
DiffuserTempered Glass Diffuser
Color AvailableWhite & Black
ReflectorAluminium Reflector
Optical & Performance
Beam Angle15° / 24° / 36° / 45°
Lifespan>50,000 Hours (L90 B10)
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-20C° ~ 50C°
IP Rating65
IK10
