Photometric

Item code: LP-ODL341020
Output: 2,400 lm · 20 W
Beam angle: 90°
Peak intensity: 1,184 cd
Centre lux at 2 m / 3 m: 296 / 132 lx
Beam width at 3 m: 6 m
BUG rating: B1-U0-G0
CRI: >90

Download IES Download LDT Photometric data sheet

Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.

Ceiling Surface Lights

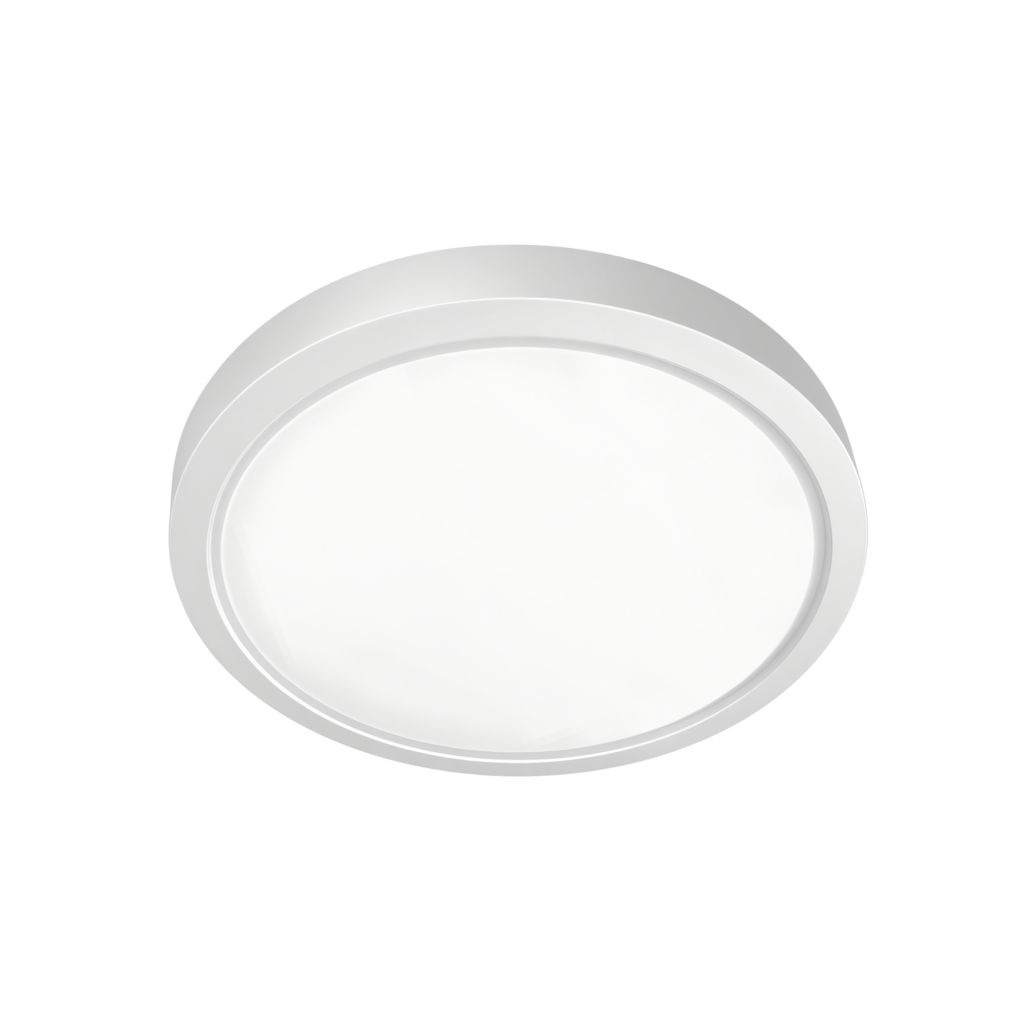

EDA

Black & Dark Gray

White

EDA LED with easy installation and best features. This bulkhead light adopts Die-casting aluminum body and 94-V0 fire-rated PC cover. It is also available as led emergency bulkhead are ideal for applications that require continuous light even after a power outage. Modern IP65 rated led bulkhead also provide high bright lighting to stairway, lobby, reception, corridors and building entrances.

Item Codes

Item Code	Power	Lamp	Lumen	Dimensions
LP-ODL341012	12W	LED	1440lm	A250 X B40 mm
LP-ODL341020	20W	LED	2400lm	A250 X B40 mm
LP-ODL341024	24W	LED	2800lm	A250 X B40 mm
LP-ODL341036	36W	LED	4320lm	A300 X B40 mm

Technical Specification

Construction

HousingDie-casting Aluminum

Diffuser94-v0 Fire-rated PC diffuser

Color AvailableWhite, Black & Dark-Gray

ReflectorAluminium Reflector

Optical & Performance

Beam Angle90° / 120°

Lifespan>50,000 Hours (L90 B10)

Electrical

VoltageAC220~240V

LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW

Protection & Environment

Working Temperature-10C° ~ 60C°

IP Rating65

IK10

TMSeries WiringRohsRecycleProtectionPluginLM 80OutdoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA

Downloads

Download all

PDF Specification Sheet 3 MB ↓ PDF Tender Text ↓ PDF UKCA Declaration of Conformity ↓ PDF CE Declaration of Conformity ↓ PDF REACH Declaration ↓ IES IES photometric file · LP-ODL341020 2 KB ↓ LDT LDT photometric file (EULUMDAT) · LP-ODL341020 3 KB ↓
