Photometric

Item code: LP-ODL232615
Output: 1,800 lm · 15 W
Beam angle: 40°
Peak intensity: 3,767 cd
Centre lux at 2 m / 3 m: 942 / 419 lx
Beam width at 3 m: 2.18 m
BUG rating: B2-U0-G0
CRI: >90

Download IES Download LDT Photometric data sheet

Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.

Ceiling Surface Lights

Pop

White & Black

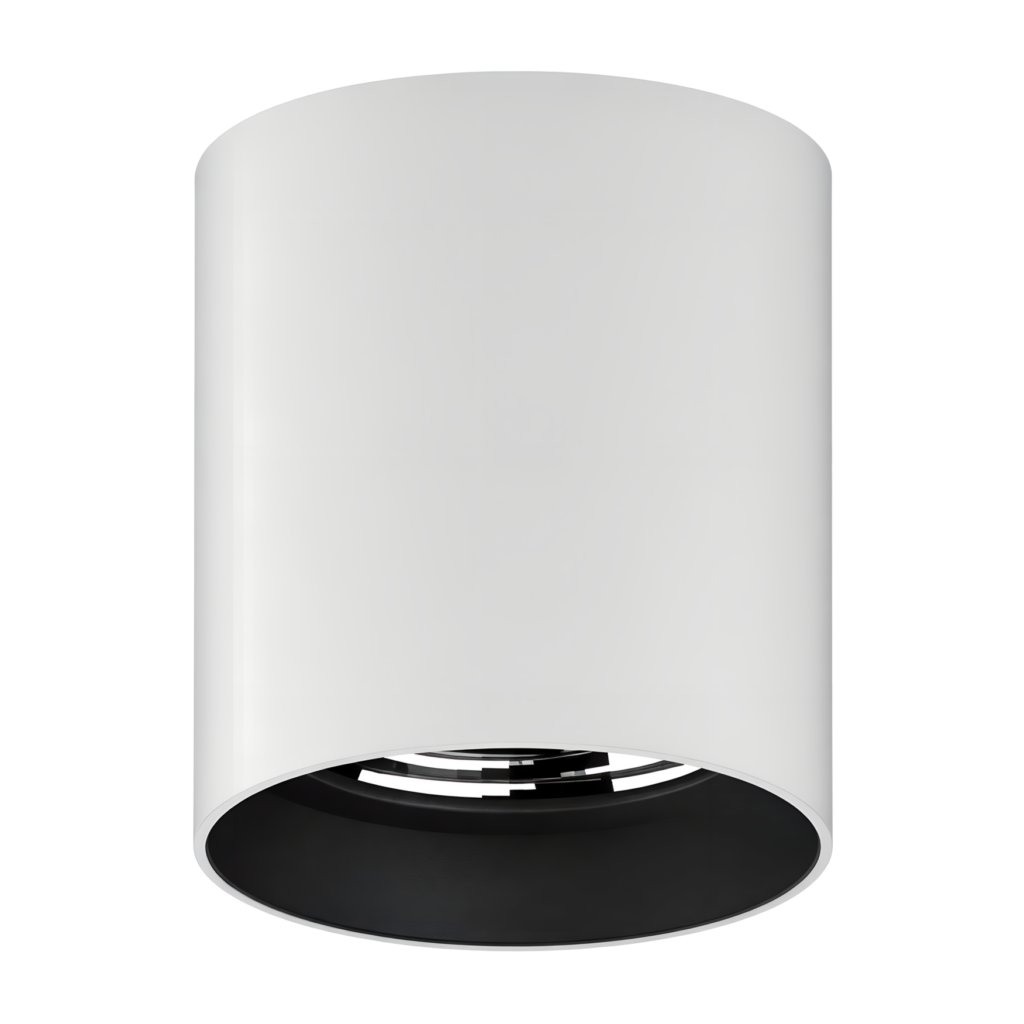

Pop Cylinder lamp adopts straightforward design with stylish appearance with high quality COB LED chip with high lumen and pure color. The AL6063 Aluminum radiator in sand blast oxidation treatment provides excellent heat dissipation and corrosion resistance. The built-in power supply with high conversion efficiency is stable and reliable. it is very suitable for star hotel, restaurant, shopping mall, villa, residence and other high-end projects.

Item Codes

Item Code	Power	Lamp	Lumen	Dimensions
LP-ODL232607	07W	LED	840lm	A83 X B125 mm
LP-ODL232609	09W	LED	1080lm	A83 X B125 mm
LP-ODL232615	15W	LED	1800lm	A83 X B125 mm
LP-ODL232625	25W	LED	3000lm	A123 X B156 mm
LP-ODL232635	35W	LED	3000lm	A160 X B183 mm
LP-ODL232645	45W	LED	3000lm	A200 X B212 mm
