Photometric
- Item code
- LP-ODL371706
- Output
- 430 lm · 6 W
- Beam angle
- 120°
- Peak intensity
- 132 cd
- Centre lux at 2 m / 3 m
- 33 / 15 lx
- Beam width at 3 m
- 10.39 m
- BUG rating
- B0-U0-G0
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Ceiling Surface Lights
Albion
Black
Dark Grey
Silver Grey
White

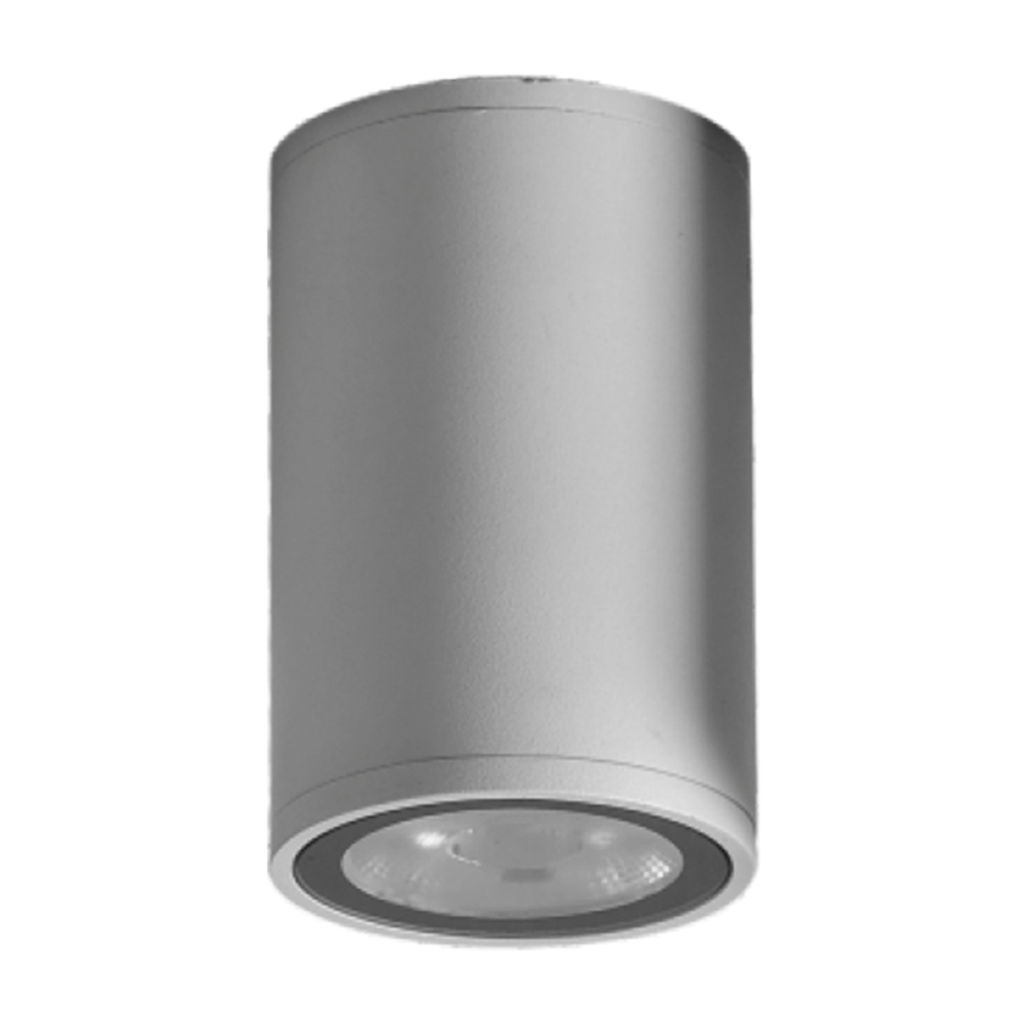

Albion Cylinder lamp adopts straightforward design with stylish appearance with high quality LED chip with high lumen and pure color. The Die-Cast Aluminum radiator in sand blast oxidation treatment provides excellent heat dissipation and corrosion resistance. The built-in power supply with high conversion efficiency is stable and reliable. it is very suitable for star hotel, restaurant, shopping mall, villa, residence and other high-end projects.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-ODL371703 | 03W | LED | 180lm | AØ40 X B70mm |
| LP-ODL371706 | 06W | LED | 430lm | AØ65 X B90mm |
| LP-ODL371710 | 10W | LED | 645lm | AØ90 X B110mm |
| LP-ODL371715 | 15W | LED | 970lm | AØ108 X B120mm |
Technical Specification
Construction
HousingDie Cast Aluminum
DiffuserTempered Glass Diffuser
Color AvailableWhite, Black, Silver Grey, Dark Grey
ReflectorAluminium Reflector
Optical & Performance
Beam Angle120°
Lifespan>50,000 Hours (L90 B10)
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-30C° ~ 50C°
IP Rating65
IK07
TMSeries WiringRohsRecycleProtectionPluginLM 80OutdoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
