Photometric
- Item code
- LP-ODL342020
- Output
- 2,400 lm · 20 W
- Beam angle
- 90°
- Peak intensity
- 1,184 cd
- Centre lux at 2 m / 3 m
- 296 / 132 lx
- Beam width at 3 m
- 6 m
- BUG rating
- B1-U0-G0
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Ceiling Surface Lights

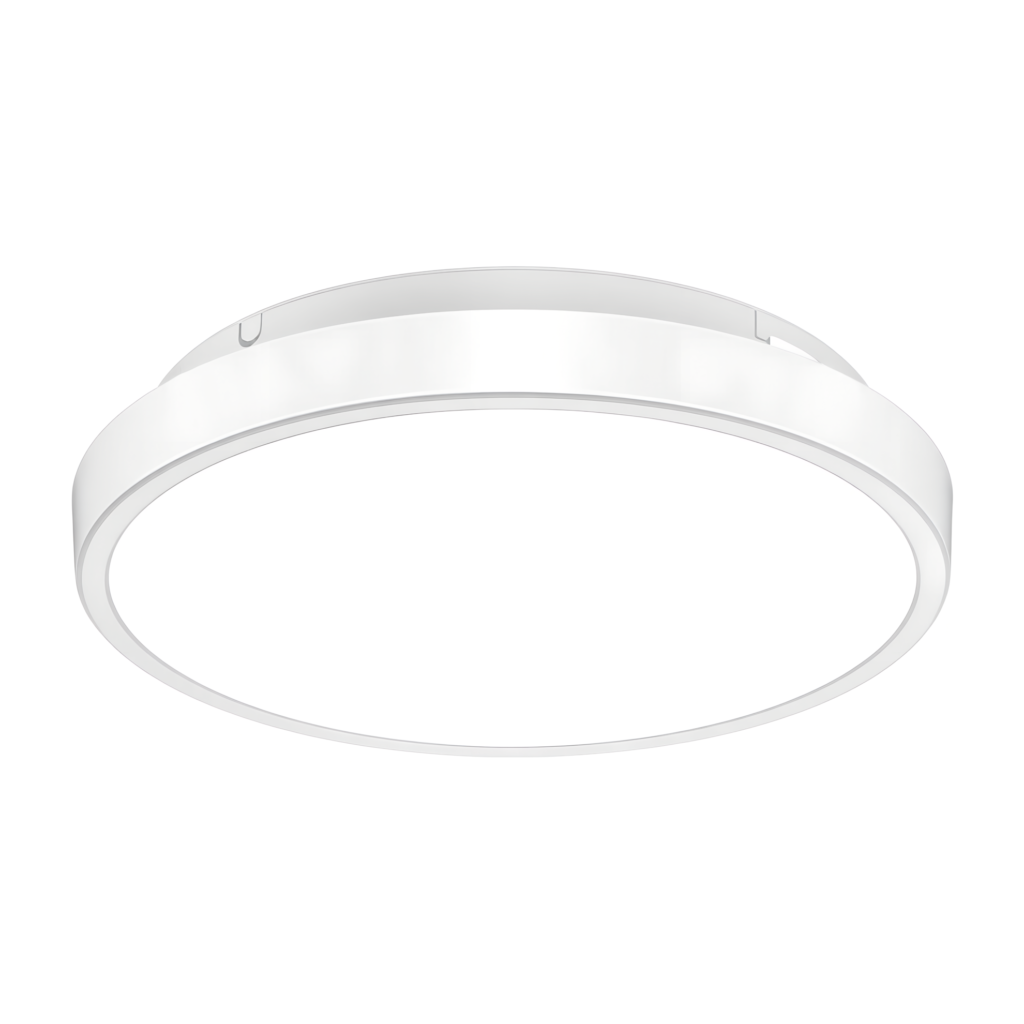

Mars
Black & Dark Gray
White
Mars integrated led ceiling light, IP65 waterproof added function, it’s sensible choice for any commercial and residential areas. economical led integrated ceiling lights with high luminous flux, that’s best way to save money and more energy.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-ODL342012 | 12W | LED | 1200lm | A300 X B66.5 mm |
| LP-ODL342018 | 18W | LED | 1800lm | A300 X B66.5 mm |
| LP-ODL342020 | 20W | LED | 2400lm | A300 X B66.5 mm |
| LP-ODL342025 | 25W | LED | 3000lm | A400 X B69 mm |
| LP-ODL342030 | 30W | LED | 3600lm | A300 X B66.5 mm |
Technical Specification
Construction
HousingFire Rated - Vandal Proof PC
Diffuser94-v0 Fire-rated PC diffuser
Color AvailableWhite, Black & Dark-Gray
ReflectorAluminium Reflector
Optical & Performance
Beam Angle90°
Lifespan>50,000 Hours (L90 B10)
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-10C° ~ 50C°
IP Rating65
IK10
TMSeries WiringRohsRecycleProtectionPluginLM 80OutdoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
