Photometric
- Item code
- LP-ODL232715
- Output
- 1,800 lm · 15 W
- Beam angle
- 38°
- Peak intensity
- 4,165 cd
- Centre lux at 2 m / 3 m
- 1,041 / 463 lx
- Beam width at 3 m
- 2.07 m
- BUG rating
- B2-U0-G0
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Ceiling Surface Lights

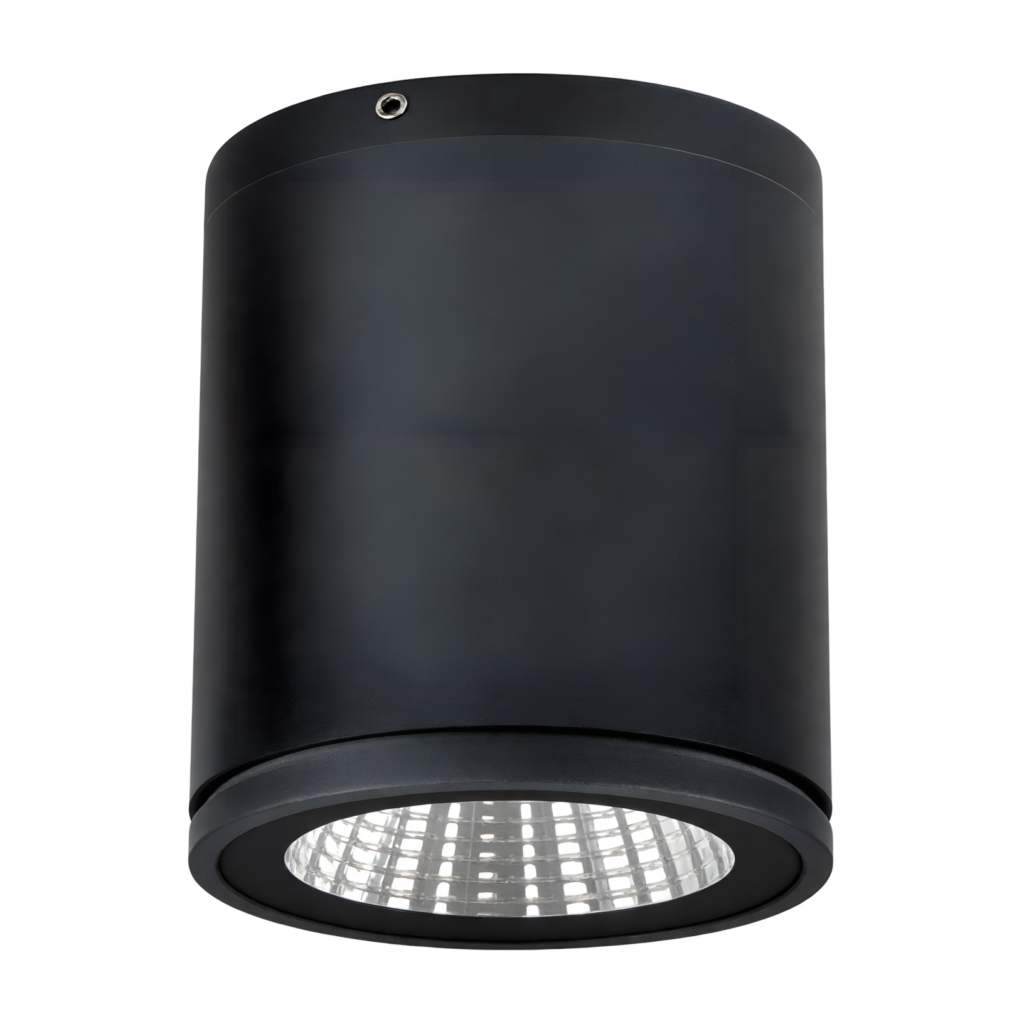

Pop III
Black
White
Pop III Cylinder lamp adopts straightforward design with stylish appearance with high quality COB LED chip with high lumen and pure color. The AL6063 Aluminum radiator in sand blast oxidation treatment provides excellent heat dissipation and corrosion resistance. The built-in power supply with high conversion efficiency is stable and reliable. it is very suitable for star hotel, restaurant, shopping mall, villa, residence and other high-end projects.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-ODL232710 | 10W | LED | 1200lm | A65 X B120 mm |
| LP-ODL232715 | 15W | LED | 1800lm | A90 X B140 mm |
| LP-ODL232720 | 20W | LED | 2400lm | A108 X B170 mm |
Technical Specification
Construction
HousingDie-casting Aluminum
DiffuserTempered Glass Diffuser
Color AvailableWhite/Black
ReflectorAluminium Reflector
Optical & Performance
Beam Angle38°
Lifespan>50,000 Hours (L90 B10)
Electrical
VoltageAC200~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-20C° ~ 60C°
IP Rating65
IK10
TMSeries WiringRohsRecycleProtectionPluginLM 80OutdoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
