Photometric

Item code: LP-ODL25
Output: 3,000 lm · 25 W
Beam angle: 36°
Peak intensity: 7,719 cd
Centre lux at 2 m / 3 m: 1,930 / 858 lx
Beam width at 3 m: 1.95 m
BUG rating: B3-U0-G0
CRI: >90

Download IES Download LDT Photometric data sheet

Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.

Ceiling Surface Lights

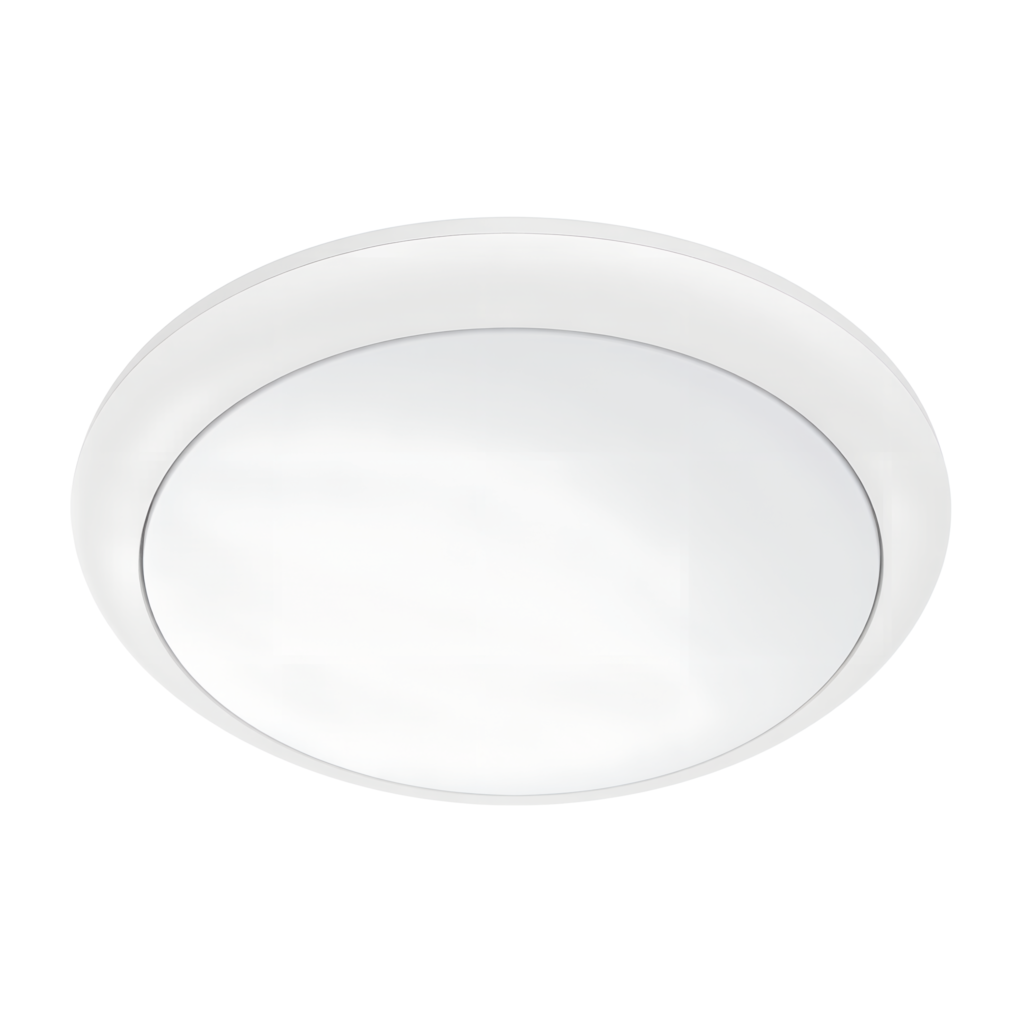

Moon

White & Black

Our white ceiling mounted luminaire can do it. Moon ceiling light(full PC) adopts elegant and concave design, which makes the luminous surface compact and with magic 3D effects. IP54 rated luminaire is suitable for inside bathroom. Surface mounted and suspended installation are also optional, equipped with rotating lamp fixture, makes the surface mounted installation much easier.

Item Codes

Item Code	Power	Lamp	Lumen	Dimensions
LP-ODL12	12W	LED	1440lm	A270 X B70 mm
LP-ODL18	18W	LED	2160lm	A320 X B70 mm
LP-ODL25	25W	LED	3000lm	A320 X B70 mm
LP-ODL30	30W	LED	3600lm	A420 X B85 mm
LP-ODL35	35W	LED	4200lm	A420 X B85 mm
LP-ODL40	40W	LED	4800lm	A420 X B85 mm
