Photometric
- Item code
- LP-PNL216036
- Output
- 4,572 lm · 36 W
- Beam angle
- 90°
- Peak intensity
- 2,256 cd
- Centre lux at 2 m / 3 m
- 564 / 251 lx
- Beam width at 3 m
- 6 m
- UGR
- <19
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Panel Lights
Hero
White

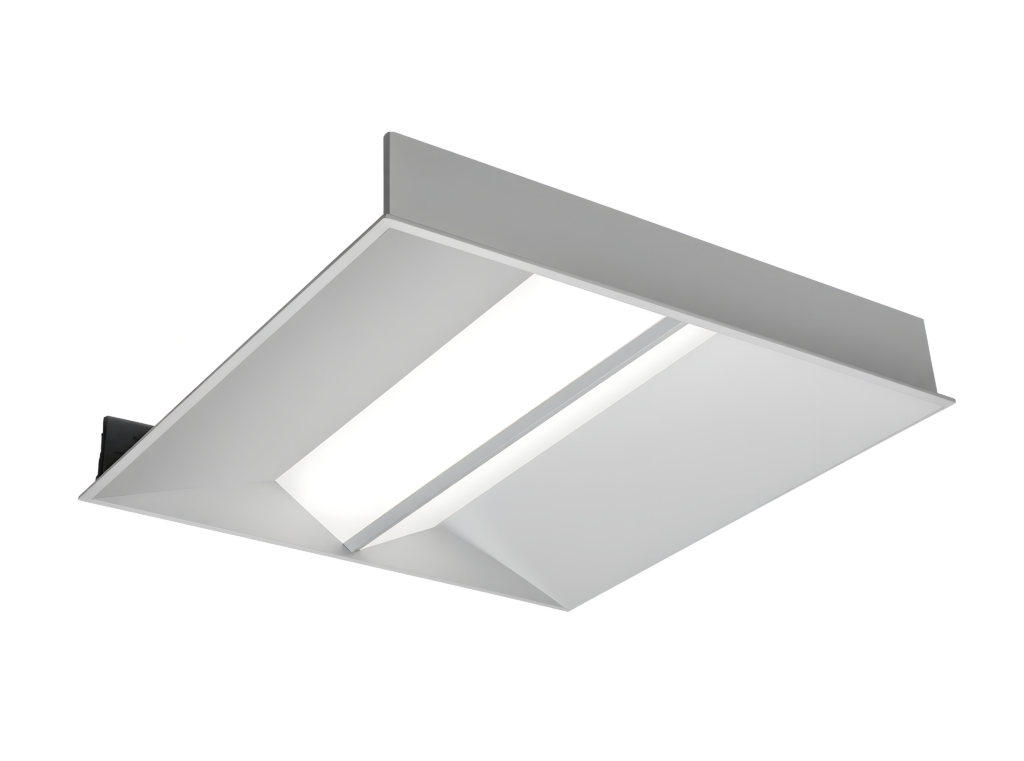

Hero LED panel light is an elegant high-class indoor lighting. The outer frames are made of aluminum alloy by anodic oxidation. The lighting source is LED. The lighting design and simple appearance, deluxe and high-class , with good lighting eect. LED panel lamp design is unique, the light passes through the high transmittance of light guide plate after the formation of a uniform plane light eect, good uniformity of illuminance, light and soft, comfortable and also bright, can effectively relieve eye fatigue.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-PNL216027 | 27W | LED | 3429lm | A595 x B595 x C95mm |
| LP-PNL216036 | 36W | LED | 4572lm | A595 x B595 x C95mm |
| LP-PNL216040 | 40W | LED | 5080lm | A595 x B595 x C95mm |
Technical Specification
Construction
HousingCold-rolled Steel with Durable White Powder Coat Finish
DiffuserHigh Transmission PMMA Opal, Offering a Comfortable Diffused Light
Color AvailableWhite
ReflectorAluminium Reflector
Optical & Performance
Beam Angle90° / 120°
Lifespan>50,000 Hours (L90 B10)
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-20C° ~ 50C°
IP Rating44
TMSeries WiringRohsRecycleProtectionPluginLM 80IndoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
