Photometric
- Item code
- LP-PNL211236
- Output
- 4,320 lm · 36 W
- Beam angle
- 120°
- Peak intensity
- 1,324 cd
- Centre lux at 2 m / 3 m
- 331 / 147 lx
- Beam width at 3 m
- 10.39 m
- UGR
- <19
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Panel Lights

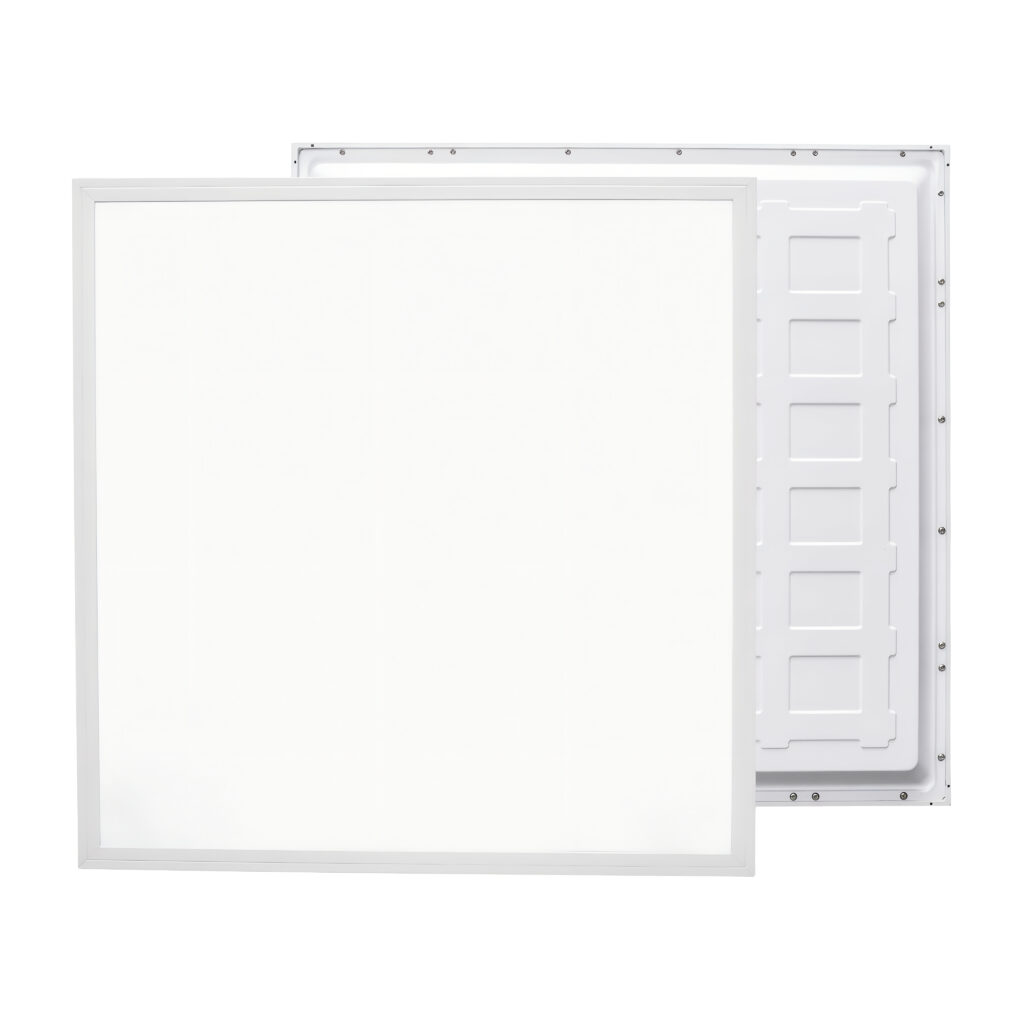

Flatty
Flatty LED backlit panel adopts high lumen SMD LED with up to 80% energy saving compared to standard CFL. Long a lifetime of 50,000 hours. The top branded driver comes with Triac dim, 0-10V dim, and DALI dim, it has a perfect dimming range and shares great compatibility with worldwide famous brand dimmers.120° wide beam angle.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-PNL211230 | 30W | LED | 3600lm | A595 X B595 X C30 mm |
| LP-PNL211236 | 36W | LED | 4320lm | A595 X B595 X C30 mm |
| LP-PNL211240 | 40W | LED | 4800lm | A595 X B595 X C30 mm |
| LP-PNL211245 | 45W | LED | 5400lm | A595 X B595 X C30 mm |
Technical Specification
Construction
HousingLuminaire body of die-cast aluminum, white, powder-coated.
DiffuserPC Diffuser
ReflectorAluminium Reflector
Optical & Performance
Beam Angle120°
Lifespan>50,000 Hours (L90 B10)
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-10C° ~ 50C°
IP Rating54
Further Details
Light Temprature3000K, 4000K, 6000K
LED ChipCREE, OSRAM, PHILIPS, TRIDONIC, NICHIA, BRIDGELUX.
Control Gear TypeTCI, TRIDONIC, OSRAM, VS, SYLVANIA (Optional Dali Driver)
TMSeries WiringRohsRecycleProtectionPluginLM 80IndoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
