Photometric
- Item code
- LP-PNL215055
- Output
- 5,500 lm · 55 W
- Beam angle
- 120°
- Peak intensity
- 1,686 cd
- Centre lux at 2 m / 3 m
- 421 / 187 lx
- Beam width at 3 m
- 10.39 m
- UGR
- <19
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Panel Lights

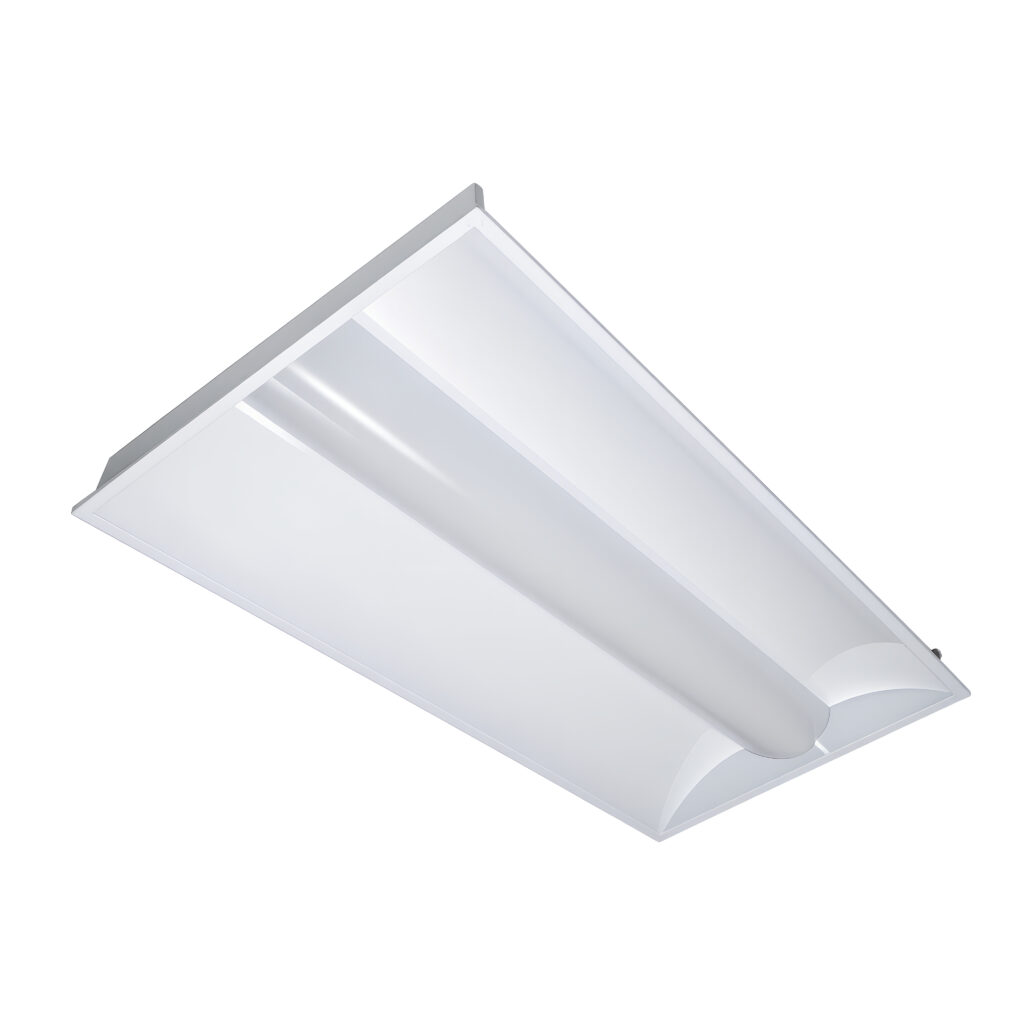

Hero II
White
The Hero-II light is indirect lighting with louver anti-glare design. Adopt high lumen and special lens which provide high light efficiency and uniform light output. It offers the ideal combination of stylish design and optimum performance for both task and general lighting.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-PNL215050 | 50W | LED | 5000lm | A1195 x B595 x C85mm |
| LP-PNL215055 | 55W | LED | 5500lm | A1195 x B595 x C85mm |
| LP-PNL215060 | 60W | LED | 6000lm | A1195 x B595 x C85mm |
| LP-PNL215070 | 70W | LED | 7000lm | A1195 x B595 x C85mm |
Technical Specification
Construction
Housing0.6mm Cold-roll Steel under White Powder Coating
DiffuserHigh Optical Grade PMMA Opal Diffuser
Color AvailableWhite
ReflectorAluminium Reflector
Optical & Performance
Beam Angle120°
Lifespan>50,000 Hours (L90 B10)
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-30C°-+60C°
IP Rating54
IK08
TMSeries WiringRohsRecycleProtectionPluginLM 80IndoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
