Photometric
- Item code
- LP-PNL213040
- Output
- 4,000 lm · 40 W
- Beam angle
- 90°
- Peak intensity
- 1,974 cd
- Centre lux at 2 m / 3 m
- 493 / 219 lx
- Beam width at 3 m
- 6 m
- UGR
- <19
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Panel Lights

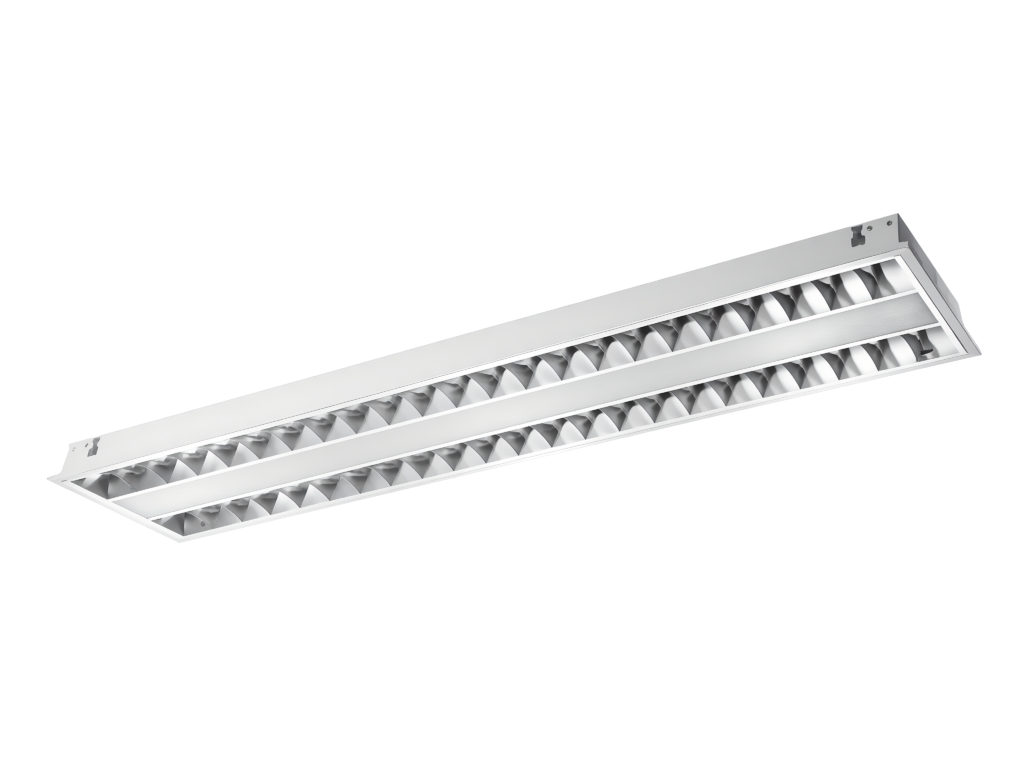

Brighty II
White (other colors available on request)
The Brighty-II light is direct lighting with louver anti-glare design. Adopt high lumen SMD chip and special lens which provide high light efficiency and uniform light output. It offers the ideal combination of stylish design and optimum performance for both task and general lighting.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-PNL213036 | 36W | LED | 3600lm | A1195 x B295 x C60mm |
| LP-PNL213040 | 40W | LED | 4000lm | A1195 x B295 x C60mm |
| LP-PNL213048 | 48W | LED | 4800lm | A1195 x B295 x C60mm |
Technical Specification
Construction
HousingBody Manufactured in Cold-rolled Steel With Durable White Powder Coat Finish
DiffuserAluminum Louver Reflector with PC Opal
Color AvailableWhite (other colors available on request)
ReflectorAluminium Reflector
Optical & Performance
Beam Angle90° / 120°
Lifespan>50,000 Hours (L90 B10)
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-30C°-+60C°
IP Rating44
TMSeries WiringRohsRecycleProtectionPluginLM 80IndoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
