Photometric
- Item code
- LP-PNL213532
- Output
- 3,390 lm · 32 W
- Beam angle
- 120°
- Peak intensity
- 1,039 cd
- Centre lux at 2 m / 3 m
- 260 / 115 lx
- Beam width at 3 m
- 10.39 m
- UGR
- <19
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Panel Lights

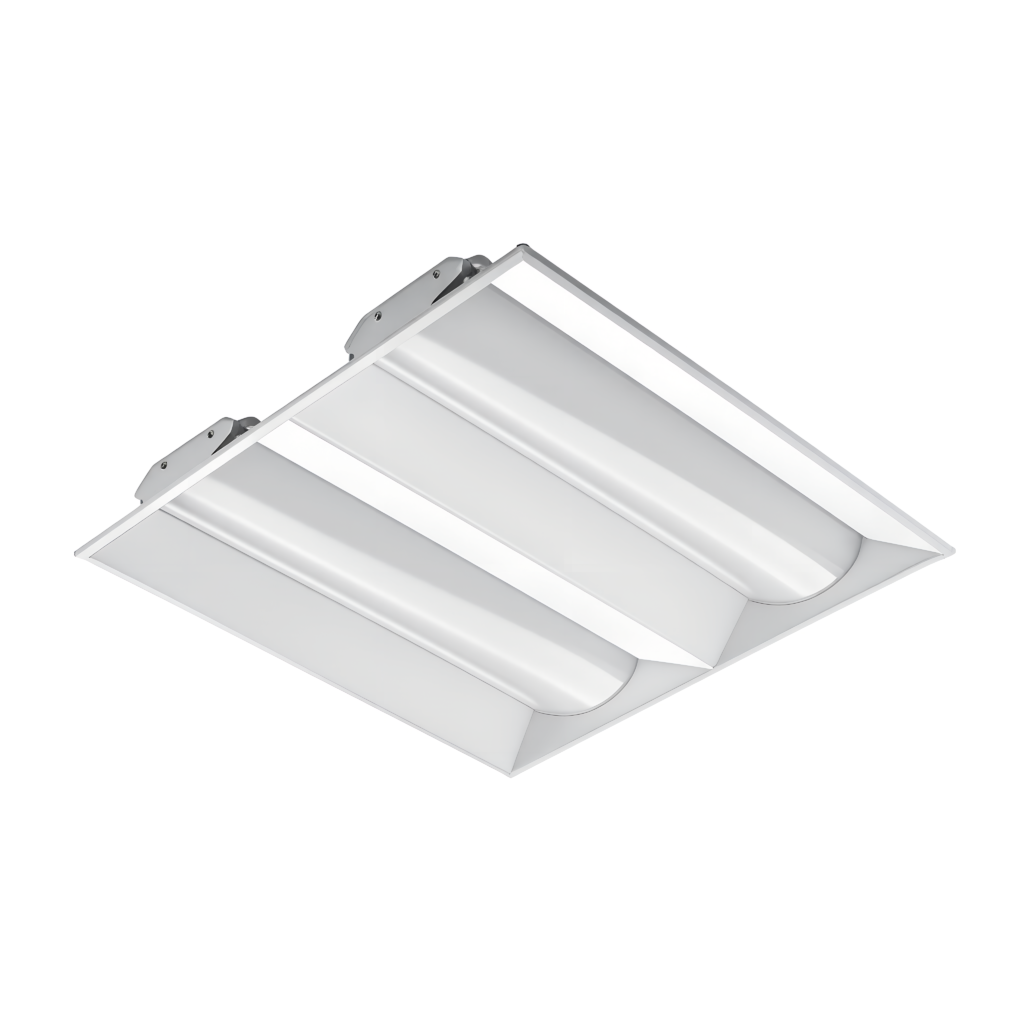

Jet
White (other colors available on request)
The Jet light is direct lighting with louver anti-glare design. Adopt high lumen SMD chip and special lens which provide high light efficiency and uniform light output. It offers the ideal combination of stylish design and optimum performance for both task and general lighting.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-PNL214036 | 36W | LED | 3530lm | A596 x B596 x C70 mm |
| LP-PNL214040 | 40W | LED | 3870lm | A596 x B596 x C70 mm |
| LP-PNL213532 | 32W | LED | 3390lm | A596 x B596 x C85 mm |
| LP-PNL213536 | 36W | LED | 3780lm | A596 x B596 x C85 mm |
| LP-PNL213540 | 40W | LED | 4200lm | A596 x B596 x C85 mm |
Technical Specification
Construction
HousingBody Manufactured in Cold-rolled Steel with Durable White Powder Coat Finish
DiffuserDouble PMMA Opal Diffuser in Arc Shape
Color AvailableWhite (other colors available on request)
ReflectorAluminium Reflector
Optical & Performance
Beam Angle120°
Lifespan>50,000 Hours (L90 B10)
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-30C°-+60C°
IP Rating44
IK08
TMSeries WiringRohsRecycleProtectionPluginLM 80IndoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
