Photometric
- Item code
- LP-7032-SMT-45
- Output
- 5,400 lm · 45 W
- Beam angle
- 120°
- Peak intensity
- 1,655 cd
- Centre lux at 2 m / 3 m
- 414 / 184 lx
- Beam width at 3 m
- 10.39 m
- BUG rating
- B2-U0-G2
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Panel Lights

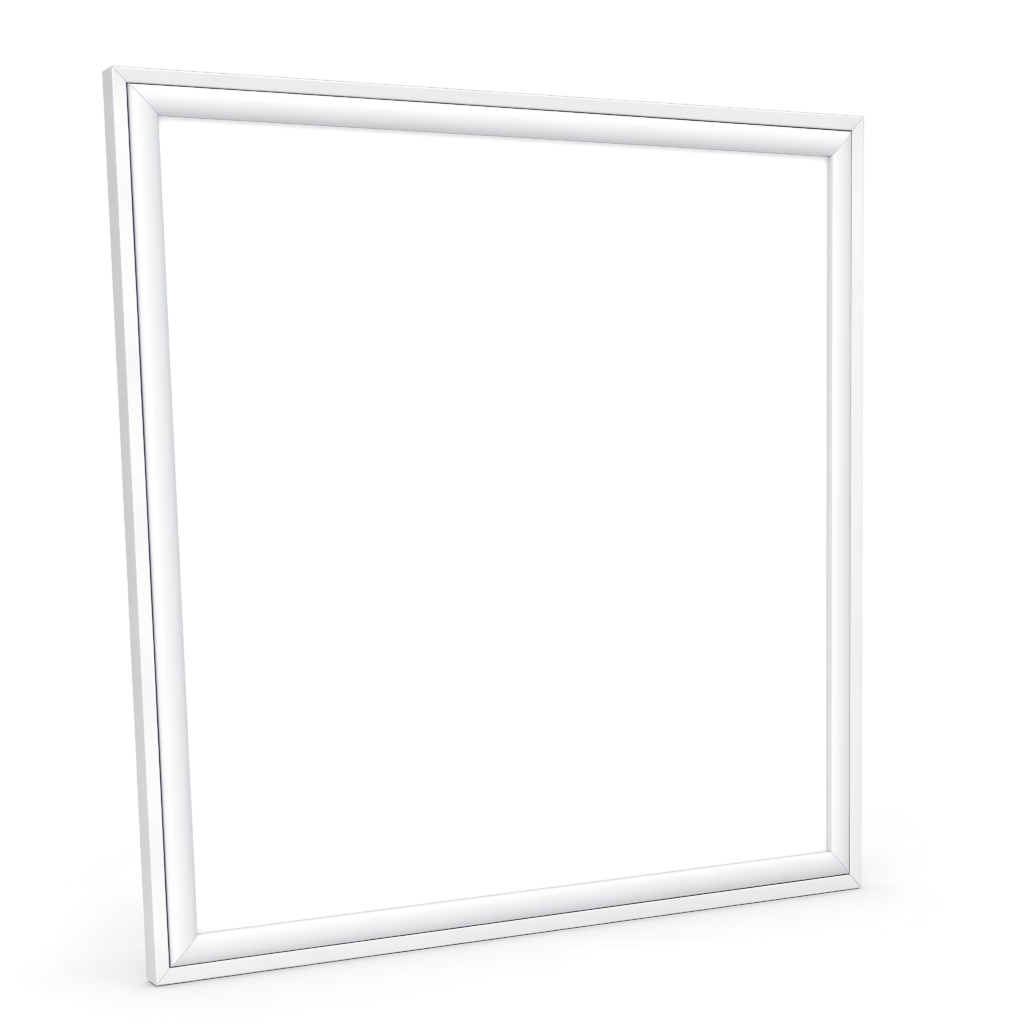

Luxy II
White
Luxy LED panel adopts high lumen SMD LED with up to 80% energy saving compared to standard CFL. Long a lifetime of 50,000 hours. The top branded driver comes with Triac dim, 0-10V dim, and DALI dim, it has a perfect dimming range and shares great compatibility with worldwide famous brand dimmers.120° wide beam angle.The ultra-slim profile fits seamlessly into any workplace. It is available in various installation ways: embedded into the ceiling, suspended with hanging wires, surface mounted in a concrete ceiling by using a surface mounting frame.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-7032-SMT-36 | 36W | LED | 4320lm | A595 x B595 x C29mm |
| LP-7032-SMT-40 | 40W | LED | 4800lm | A595 x B595 x C29mm |
| LP-7032-SMT-45 | 45W | LED | 5400lm | A595 x B595 x C29mm |
| LP-7032-SMT-50 | 50W | LED | 6000lm | A595 x B595 x C29mm |
| LP-7032-SMT-60 | 60W | LED | 7200lm | A595 x B595 x C29mm |
Technical Specification
Construction
HousingSheet Steel of Aluminum
DiffuserPMMA Polycarbonate Lens
Color AvailableWhite
ReflectorAluminium Reflector
Optical & Performance
Beam Angle120°
Lifespan>50,000 Hours (L80 B10)
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-20C° ~ 50C°
IP Rating44 / 54
TMSeries WiringRohsRecycleProtectionPluginLM 80IndoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
