Home / Products / Floor Lights / ECLIPSE

Photometric

Item code: LP-UL657504
Output: 440 lm · 4 W
Beam angle: 30°
Peak intensity: 1,563 cd
Centre lux at 2 m / 3 m: 391 / 174 lx
Beam width at 3 m: 1.61 m
BUG rating: B1-U0-G0
CRI: >90

Download IES Download LDT Photometric data sheet

Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.

Floor Lights

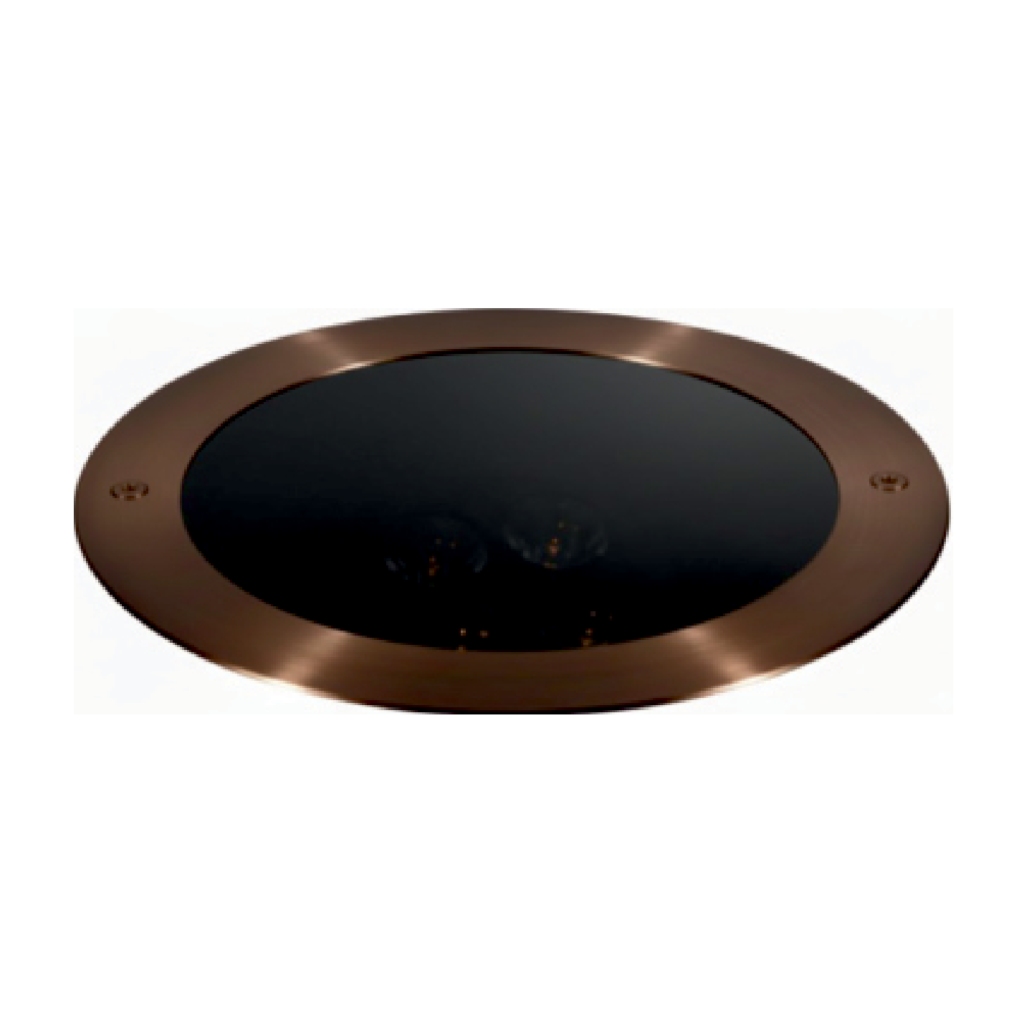

ECLIPSE

SS 316

Round luminaire for installation in-ground-recessed ceiling recessed, ceiling suspended. Die-cast aluminum structure and heat sink. 316L high corrosion stainless steel outer frame. Glass diffuser: transparent with silkscreen border. Double layer coating for high resistance to corrosion: the aluminum components are painted with a double coat using powders which are compliant with QUALICOAT standards: a first layer of epoxy powder (with excellent chemical and mechanical resistance) and a second finishing layer of polyester powder (resistant to UV rays and atmospheric agents). The entire painting process of the aluminum fitting starts from components which have been sandblasted in advance to make the surface more porous and increase the adherence of the paint.
