Photometric
- Item code
- LP-UL657016
- Output
- 1,920 lm · 16 W
- Beam angle
- 30°
- Peak intensity
- 6,821 cd
- Centre lux at 2 m / 3 m
- 1,705 / 758 lx
- Beam width at 3 m
- 1.61 m
- BUG rating
- B2-U0-G0
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.

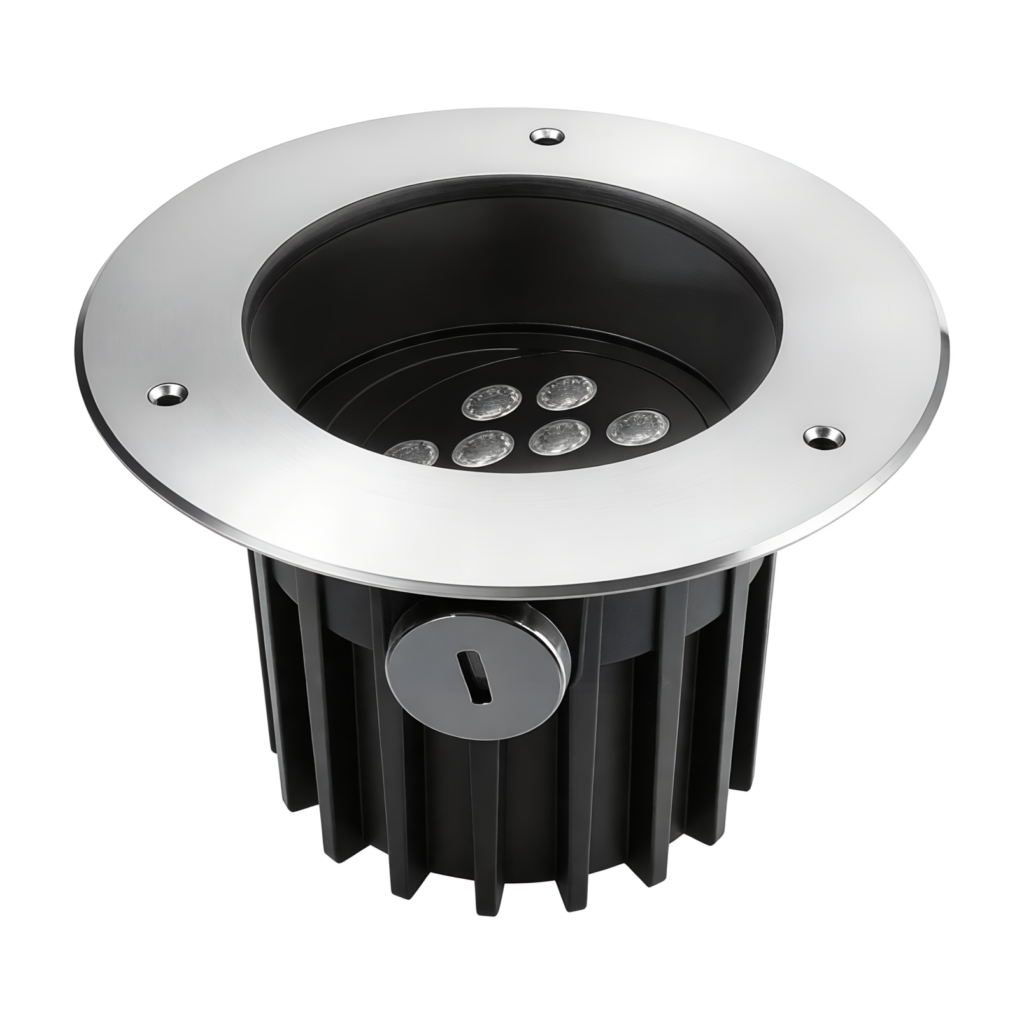

Floor Lights
Focus
Black
Luminaire for floor/ground and ceiling installation, fixed, single adjustable versions for different applications, lighting head can be mechanically adjusted without opening the luminaire, high level of flexibility in terms of lighting control, very low glare rating with the deep recessed lighting head, die-casting aluminum body, 316L SS outer trim, 8mm thick tempered glass, very low thermal build-up at the diffuser end, integrated driver, optional versions available with frosted diffuser and 24Vdc models.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-UL657012 | 12W | LED | 1440lm | A172 X B137 X C145mm |
| LP-UL657016 | 16W | LED | 1920lm | A172 X B137 X C145mm |
| LP-UL657027 | 27W | LED | 3240lm | A172 X B137 X C145mm |
| LP-UL657036 | 36W | LED | 4320lm | A172 X B137 X C145mm |
Technical Specification
Construction
HousingDie-Casting, Grey Paint Powder Coated Aluminum and 316 Stainless Steel
Diffuser316 Stainless Steel
Color AvailableBlack
ReflectorAluminium Reflector
Optical & Performance
Beam Angle05° / 10° / 15° / 30° / 45° / 60°
Lifespan>50,000 Hours (L90 B10)
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-20C° ~ 60C°
IK10
Further Details
Heavy Duty2000 KG
TMSeries WiringRohsRecycleProtectionPluginLM 80OutdoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
