Photometric
- Item code
- LP-UL657605
- Output
- 400 lm · 5 W
- Beam angle
- 36°
- Peak intensity
- 1,029 cd
- Centre lux at 2 m / 3 m
- 257 / 114 lx
- Beam width at 3 m
- 1.95 m
- BUG rating
- B1-U0-G0
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Floor Lights

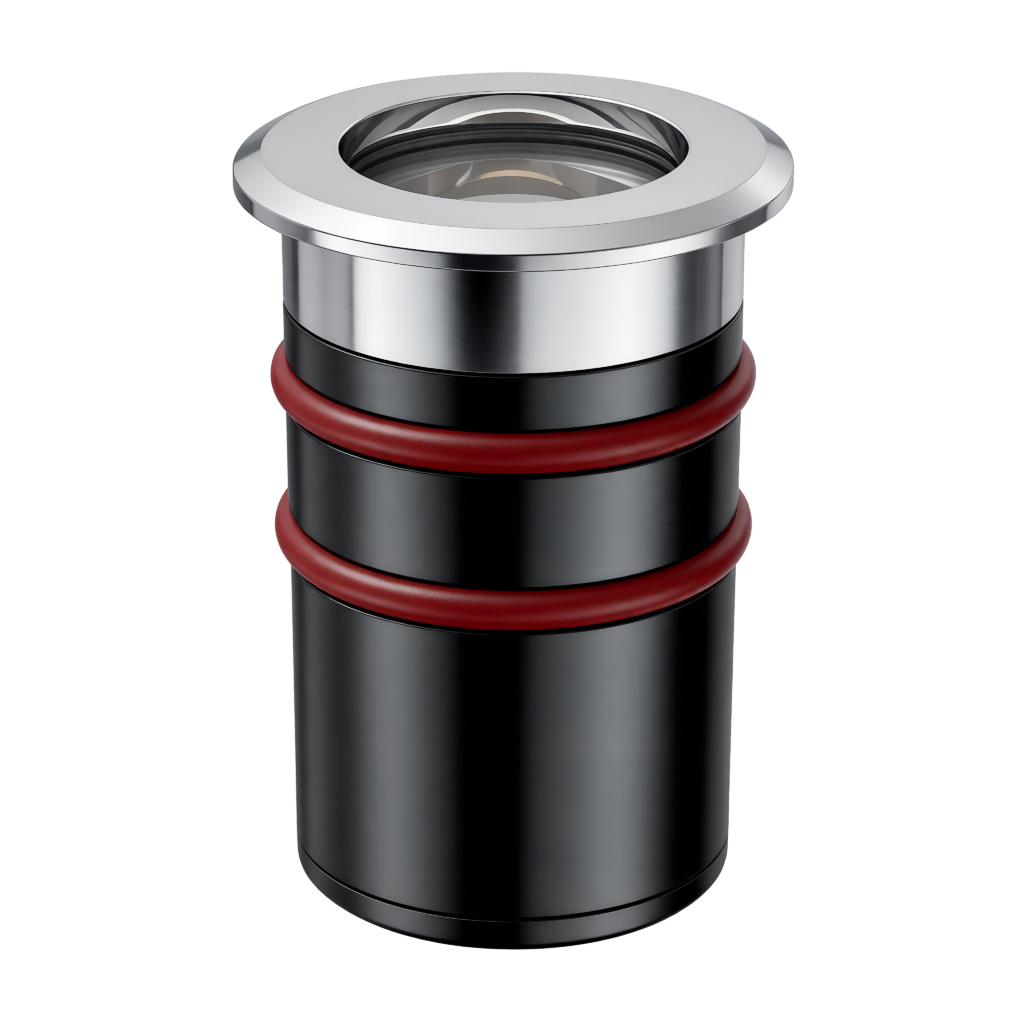

RADIUS
Coal Ash Finish to Customize
Dark Grey
The Radius series is IP 67 rated (fully submersible) and is a great choice for underwater lighting of water features and ponds due to its solid plate. The fixture is recessed under. This high quality product can be used in water.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions | Cut Out |
|---|---|---|---|---|---|
| LP-UL657602 | 02W | LED | 160lm | A32XB60 mm | A29XB70 |
| LP-UL657604 | 04W | LED | 320lm | A42XB75 mm | A37XB85 |
| LP-UL657605 | 05W | LED | 400lm | A50XB75 mm | A46XB85 |
| LP-UL657607 | 07W | LED | 560lm | A65XB90 mm | A58XB105 |
| LP-UL657610 | 10W | LED | 800lm | A80XB100 mm | A76XB115 |
| LP-UL657615 | 15W | LED | 1200lm | A100XB116 mm | A88XB135 |
Technical Specification
Construction
HousingMade of 6063 Aluminum body & #316L SUS, T=3.0mm Glass
DiffuserFrosted Glass
ReflectorPMMA Optical Lens
Color AvailableDark Grey, Coal Ash Finish to Customize
Optical & Performance
Beam Angle10° / 15° / 24° / 36° / 55° / 10° * 60°
Lifespan>50,000 Hours (L90 B10)
Electrical
VoltageAC 220~240V / DC 24V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-15C° ~ +45C°
IP Rating67
IK08
Further Details
AccessoriesHoneycomb lovre, Antiglare grille
TMSeries WiringRohsRecycleProtectionPluginLM 80OutdoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
