Photometric
- Item code
- LP-UL207815
- Output
- 1,800 lm · 15 W
- Beam angle
- 36°
- Peak intensity
- 4,631 cd
- Centre lux at 2 m / 3 m
- 1,158 / 515 lx
- Beam width at 3 m
- 1.95 m
- BUG rating
- B2-U0-G0
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.

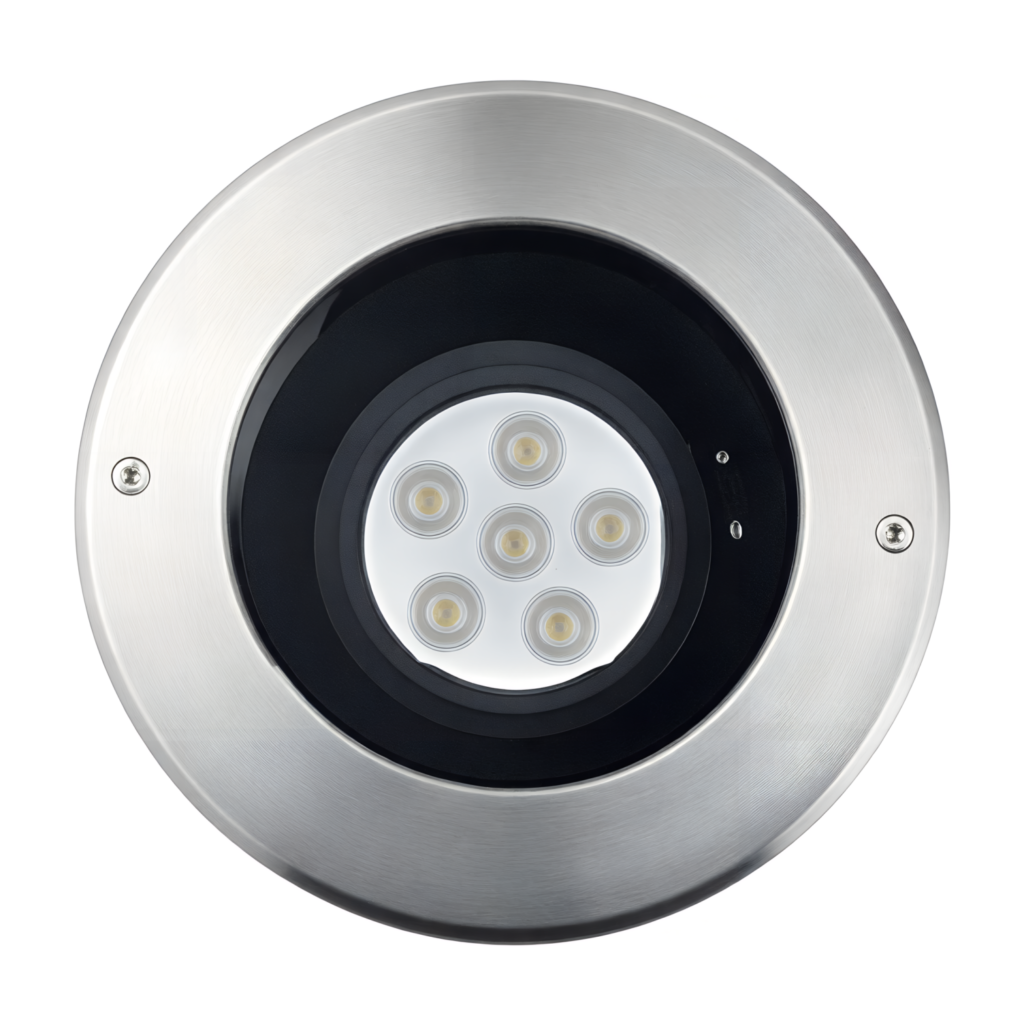

Floor Lights
Stary
Grey
The UNXR series is IP68 rated (fully submersible) and is a great choice for underwater lighting of water features and ponds due to its solid plate. The fixture is recessed under. This high quality product can be used in water.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-UL207808 | 08W | LED | 960lm | A173 x B77 mm |
| LP-UL207812 | 12W | LED | 1440lm | A186 x B92 mm |
| LP-UL207815 | 15W | LED | 1800lm | A186 x B92 mm |
| LP-UL207824 | 24W | LED | 2800lm | A200 x B92 mm |
| LP-UL207832 | 32W | LED | 3800lm | A200 x B92 mm |
Technical Specification
Construction
HousingStainless Steel
DiffuserFront Cover Stainless Steel & Gasket Molding Shape Silicon Seal
Color AvailableGrey
ReflectorAluminium Reflector
Optical & Performance
Beam Angle15° / 24° / 36°
Lifespan>50,000 Hours (L90 B10)
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-20C° ~ 60C°
IP Rating67
IK08
