Photometric
- Item code
- LP-UL657418
- Output
- 2,160 lm · 18 W
- Beam angle
- 36°
- Peak intensity
- 5,558 cd
- Centre lux at 2 m / 3 m
- 1,389 / 618 lx
- Beam width at 3 m
- 1.95 m
- BUG rating
- B3-U0-G0
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Floor Lights

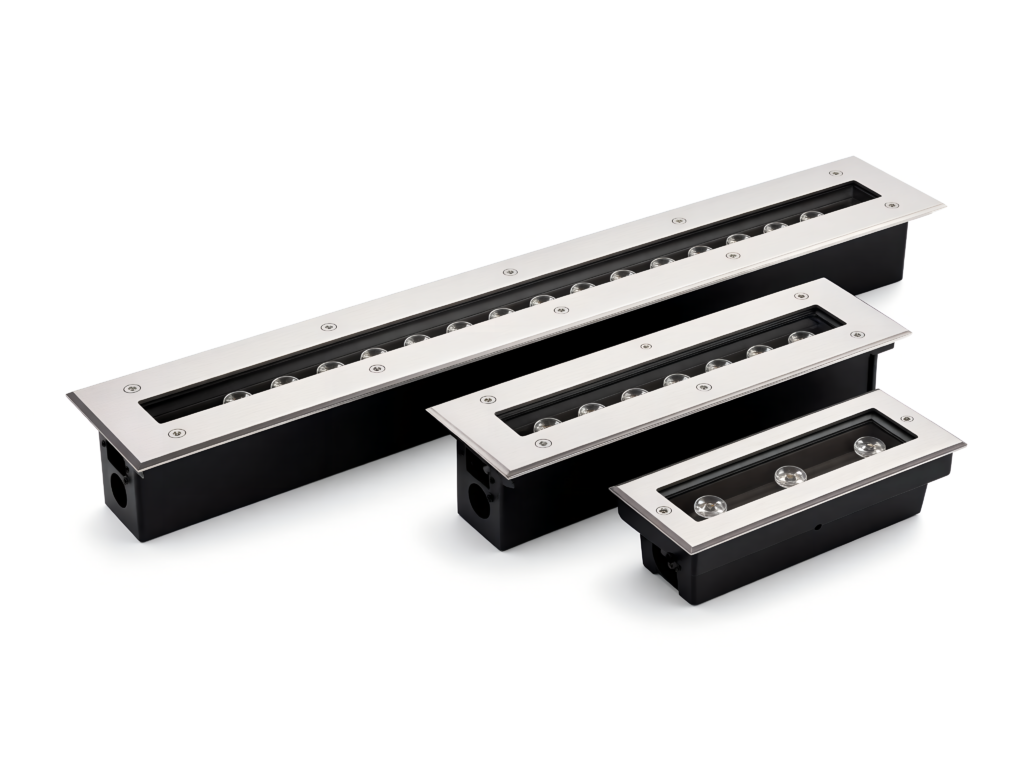

ENTRADA
Black
Entrada family are LED Marine grade stainless steel AISI 316L front trim with toughened glass diffuser, the light waterproof is IP 67 which can wirk well in rain, snow, sleet. Suitable for both indoor and outdoor lighting, exterior decoration, hotel, building and other places.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-UL657412 | 12W | LED | 1440lm | A500 X B90 X C70mm |
| LP-UL657418 | 18W | LED | 2160lm | A500 X B90 X C70mm |
| LP-UL657424 | 24W | LED | 2880lm | A1000 X B90 X C70mm |
| LP-UL657436 | 36W | LED | 4320lm | A1000 X B90 X C70mm |
Technical Specification
Construction
HousingEntirely Made of Stainless Steel 316Ti
DiffuserToughened Safety Tempered Glass
Color AvailableBlack
ReflectorAluminum Reflector
Optical & Performance
Beam Angle15° / 24° / 36° / 45° / 60° / 110°
Lifespan>50,000 Hours (L90 B10)
Electrical
VoltageAC220V / DC24V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-40C° ~ 65C°
IP Rating67
IK10
TMSeries WiringRohsRecycleProtectionPluginLM 80OutdoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
