Photometric
- Item code
- LP-UL653709
- Output
- 1,080 lm · 9 W
- Beam angle
- 30°
- Peak intensity
- 3,837 cd
- Centre lux at 2 m / 3 m
- 959 / 426 lx
- Beam width at 3 m
- 1.61 m
- BUG rating
- B2-U0-G0
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Floor Lights

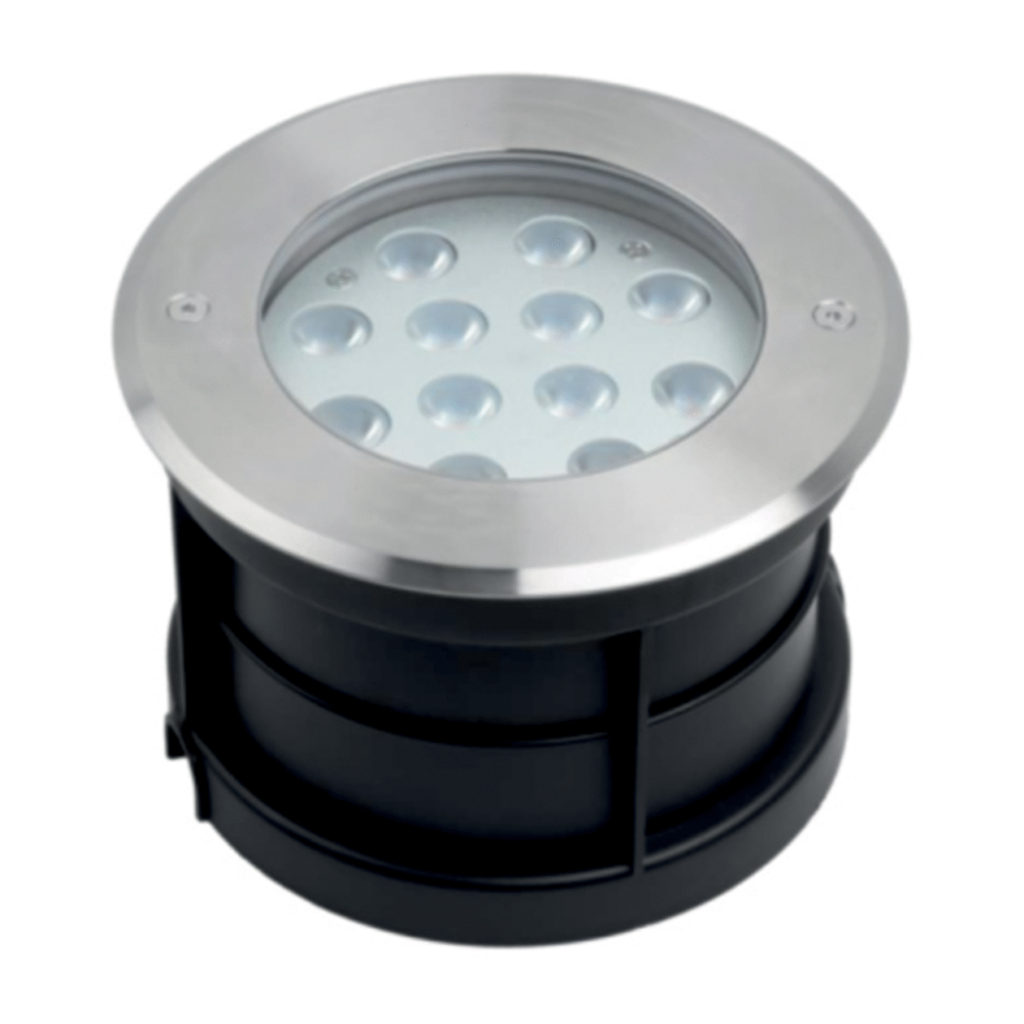

Wally
Black
Wally Recessed for outdoor applications, drive-over up to 2500 kg, recessed ground body in aluminium, trim in AISI 316L stainless steel or aluminium, screen in tempered, transparent extra-clear glass, screen in tempered, serigraphed extra-clear glass (diffuse optics) finishes stainless steel, ingress protection: IP67 impact resistance: IK10.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-UL653703 | 3*1W | LED | 360lm | A100 x B108mm |
| LP-UL653709 | 9*1W | LED | 1080lm | A160 x B110mm |
| LP-UL653718 | 18*1W | LED | 2160lm | A210 x B120mm |
Technical Specification
Construction
HousingMade of 316 Stainless Steel
DiffuserTempered Glass Diffuser
Color AvailableBlack
ReflectorAluminium Reflector
Optical & Performance
Beam Angle15° / 30° / 45° / 60°
Lifespan>50,000 Hours (L90 B10)
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-20C° ~ 65C°
IP Rating67
IK10
