Photometric
- Item code
- LP-STR322120
- Output
- 16,800 lm · 120 W
- Beam angle
- 155°
- Peak intensity
- 3,738 cd
- Centre lux at 2 m / 3 m
- 934 / 415 lx
- Beam width at 3 m
- 27.06 m
- BUG rating
- B3-U0-G4
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.

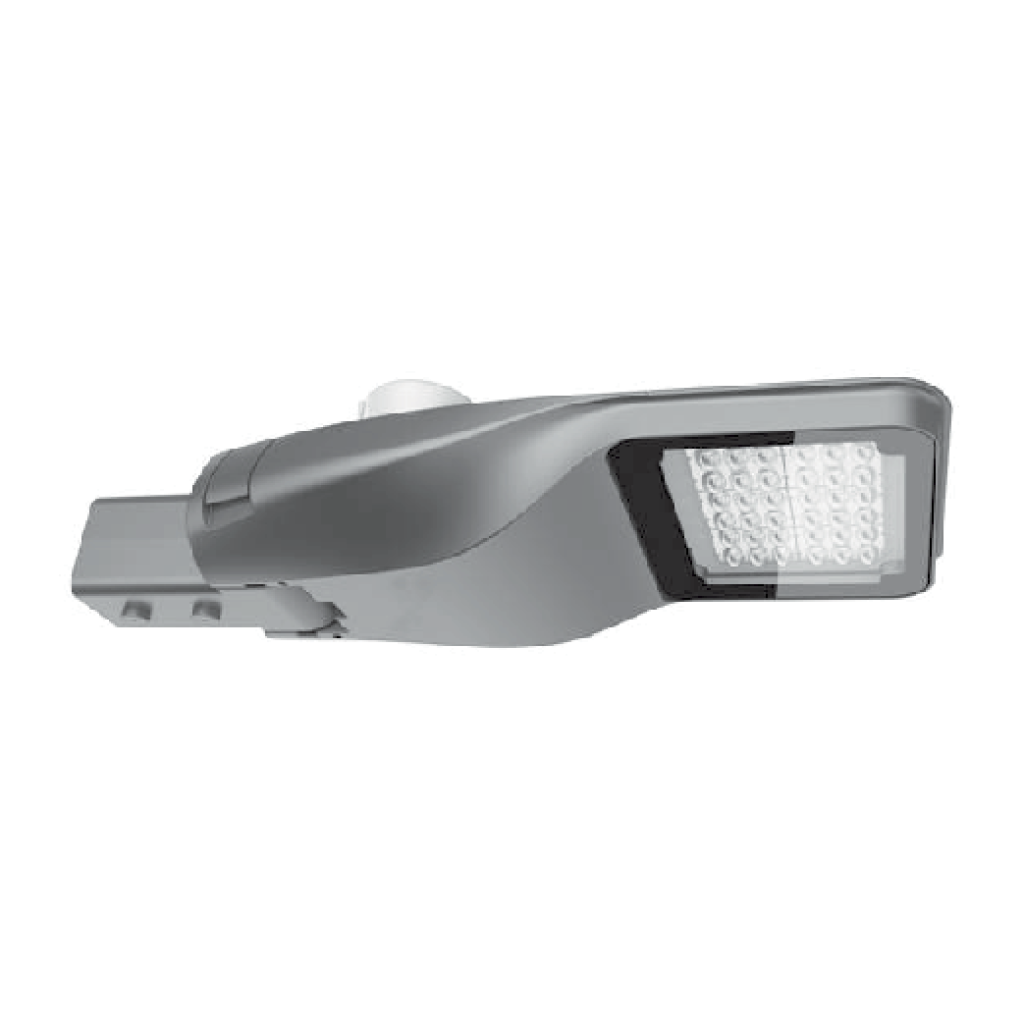

Street Lights
Winchester
Black & Grey
A roadway fixture with attention to glare control and backlight reduction. House-side shields are available to protect adjacent residences. Controls include step-dimming, motion activation, and central management compatibility.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-STR32275 | 75W | LED | 10500lm | A526 X B236 X C86 mm |
| LP-STR322120 | 120W | LED | 16800lm | A584 X B253 X C86 mm |
| LP-STR322200 | 200W | LED | 28000lm | A703 X B295 X C91 mm |
| LP-STR322300 | 300W | LED | 42000lm | A769 X B346 X C91 mm |
Technical Specification
Construction
HousingDie Cast Aluminum Body
DiffuserClear Glass
Color AvailableBlack & Grey
Optical & Performance
Beam Angle155° / 156° / 158° / 159°
Lifespan> 50,000 Hours (L70 B10)
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-20C° ~ +65C°
IP Rating65
IK10
TMSeries WiringRohsRecycleProtectionPluginLM 80OutdoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
