Photometric
- Item code
- LP-STR320270
- Output
- 5,523 lm · 70 W
- Beam angle
- 30°
- Peak intensity
- 19,622 cd
- Centre lux at 2 m / 3 m
- 4,905 / 2,180 lx
- Beam width at 3 m
- 1.61 m
- BUG rating
- B4-U0-G0
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.

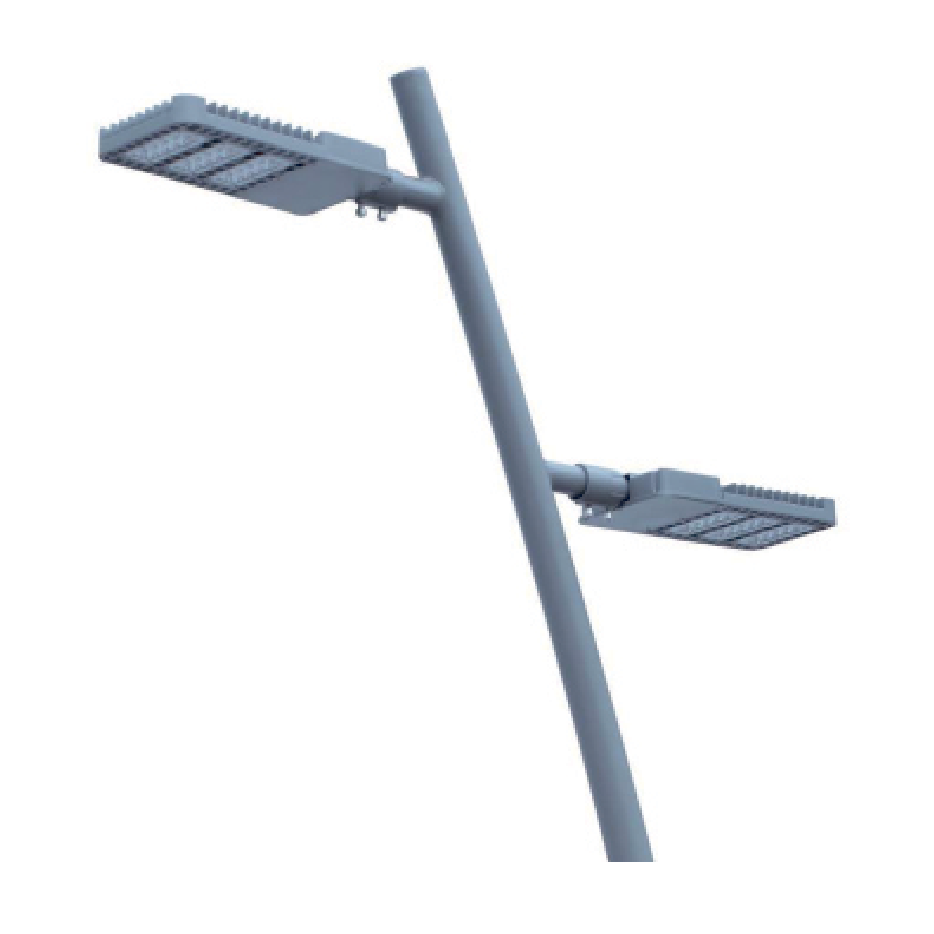

Street Lights
Gloucester
Black & Grey
Performance-driven LED street light for major and minor roads. Optical choices provide sharp cut-off and wide coverage where needed. Surge protection and robust sealing support dependable operation in challenging environments.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-STR320230 | 30W | LED | 2886lm | A503 X B233 X C66.5 mm |
| LP-STR320270 | 70W | LED | 5523lm | A503 X B233 X C66.5 mm |
| LP-STR3202100 | 100W | LED | 7169lm | A503 X B233 X C66.5 mm |
Technical Specification
Construction
HousingDie Cast Aluminum Body
DiffuserClear PC
Color AvailableBlack & Grey
Optical & Performance
Lifespan> 50,000 Hours (L70 B10)
Beam Angle48° / 120x50° / 140x30° / 150x60°
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-20C° ~ +65C°
IP Rating65
IK10
TMSeries WiringRohsRecycleProtectionPluginLM 80OutdoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
