Photometric
- Item code
- LP-STR3204100
- Output
- 13,000 lm · 100 W
- Beam angle
- 156°
- Peak intensity
- 2,875 cd
- Centre lux at 2 m / 3 m
- 719 / 319 lx
- Beam width at 3 m
- 28.23 m
- BUG rating
- B3-U0-G4
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.

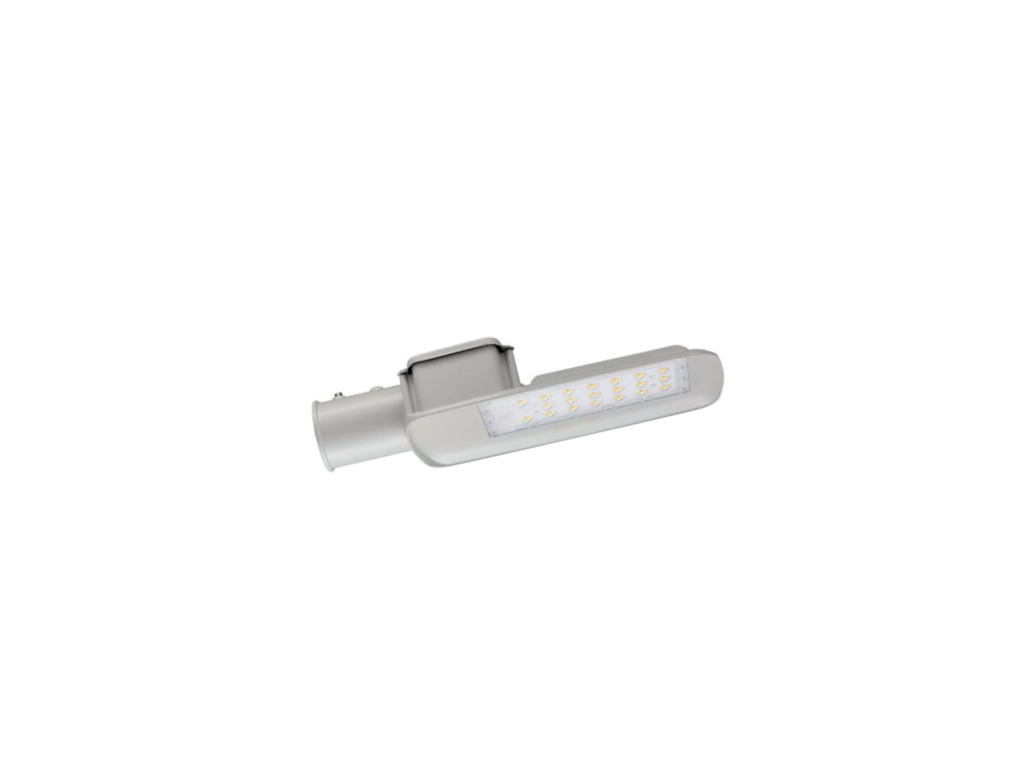

Street Lights
Norwick
Black & Grey
Performance-driven LED street light for major and minor roads. Optical choices provide sharp cut-off and wide coverage where needed. Surge protection and robust sealing support dependable operation in challenging environments.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-STR320450 | 50W | LED | 6500lm | A410 X B170 X C72 mm |
| LP-STR3204100 | 100W | LED | 13000lm | A489 X B208 X C72 mm |
| LP-STR3204150 | 150W | LED | 19500lm | A217 X B228 X C72 mm |
Technical Specification
Construction
HousingDie Cast Aluminum Body
DiffuserClear PC
Color AvailableBlack & Grey
Optical & Performance
Beam Angle156°
Lifespan> 50,000 Hours (L70 B10)
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-20C° ~ +65C°
IP Rating65
IK10
TMSeries WiringRohsRecycleProtectionPluginLM 80OutdoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
