Photometric
- Item code
- LP-STR320530
- Output
- 4,361 lm · 30 W
- Beam angle
- 147°
- Peak intensity
- 1,024 cd
- Centre lux at 2 m / 3 m
- 256 / 114 lx
- Beam width at 3 m
- 20.26 m
- BUG rating
- B2-U0-G2
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.

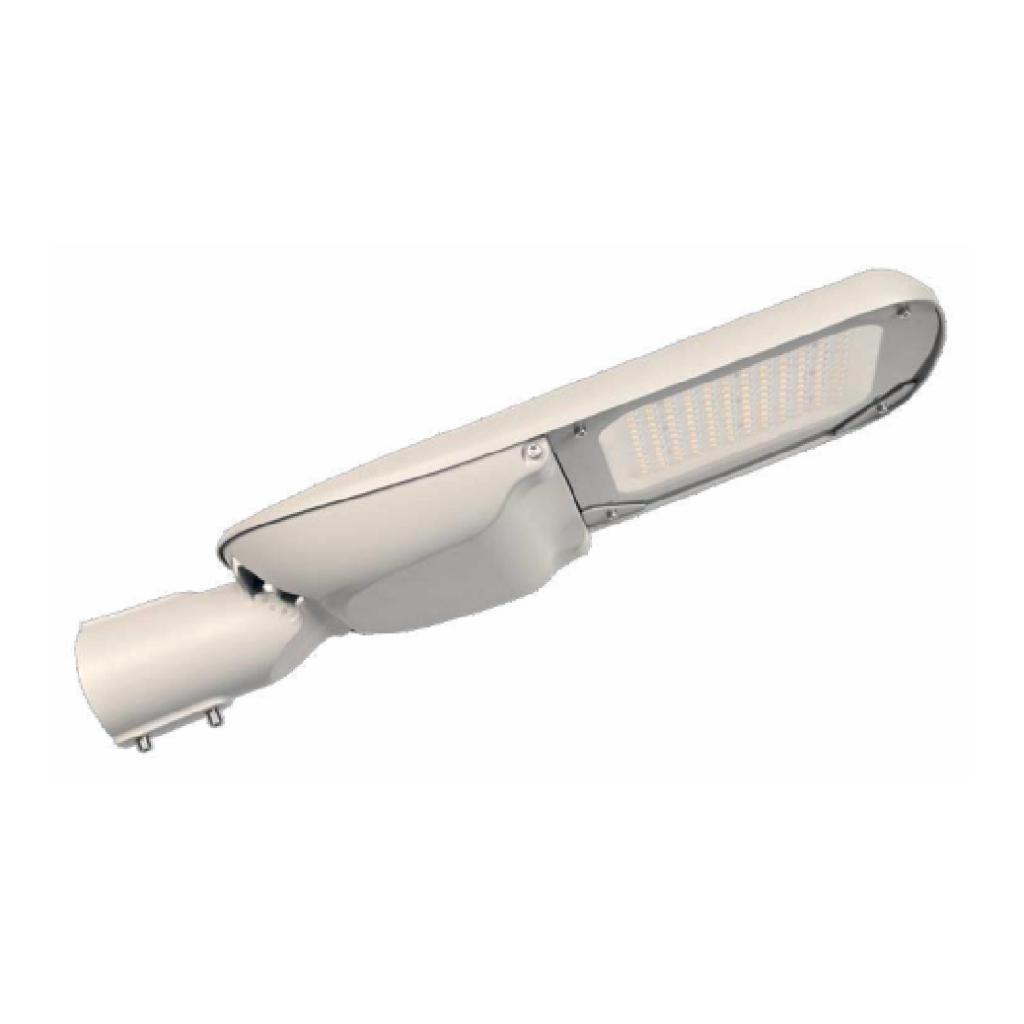

Street Lights
Salisbury
Black & Grey
Performance-driven LED street light for major and minor roads. Optical choices provide sharp cut-off and wide coverage where needed. Surge protection and robust sealing support dependable operation in challenging environments.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-STR320530 | 30W | LED | 4361lm | A581 X B238 X C112 mm |
Technical Specification
Construction
HousingDie Cast Aluminum Body
DiffuserClear PC
Color AvailableBlack & Grey
Optical & Performance
Beam Angle147° / 148° / 161° / 162°
Lifespan> 50,000 Hours (L70 B10)
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-20C° ~ +65C°
IP Rating65
IK10
TMSeries WiringRohsRecycleProtectionPluginLM 80OutdoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
