Photometric
- Item code
- LP-FL3070100
- Output
- 10,000 lm · 100 W
- Beam angle
- 36°
- Peak intensity
- 25,729 cd
- Centre lux at 2 m / 3 m
- 6,432 / 2,859 lx
- Beam width at 3 m
- 1.95 m
- BUG rating
- B4-U0-G0
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Flood & Spike Lights

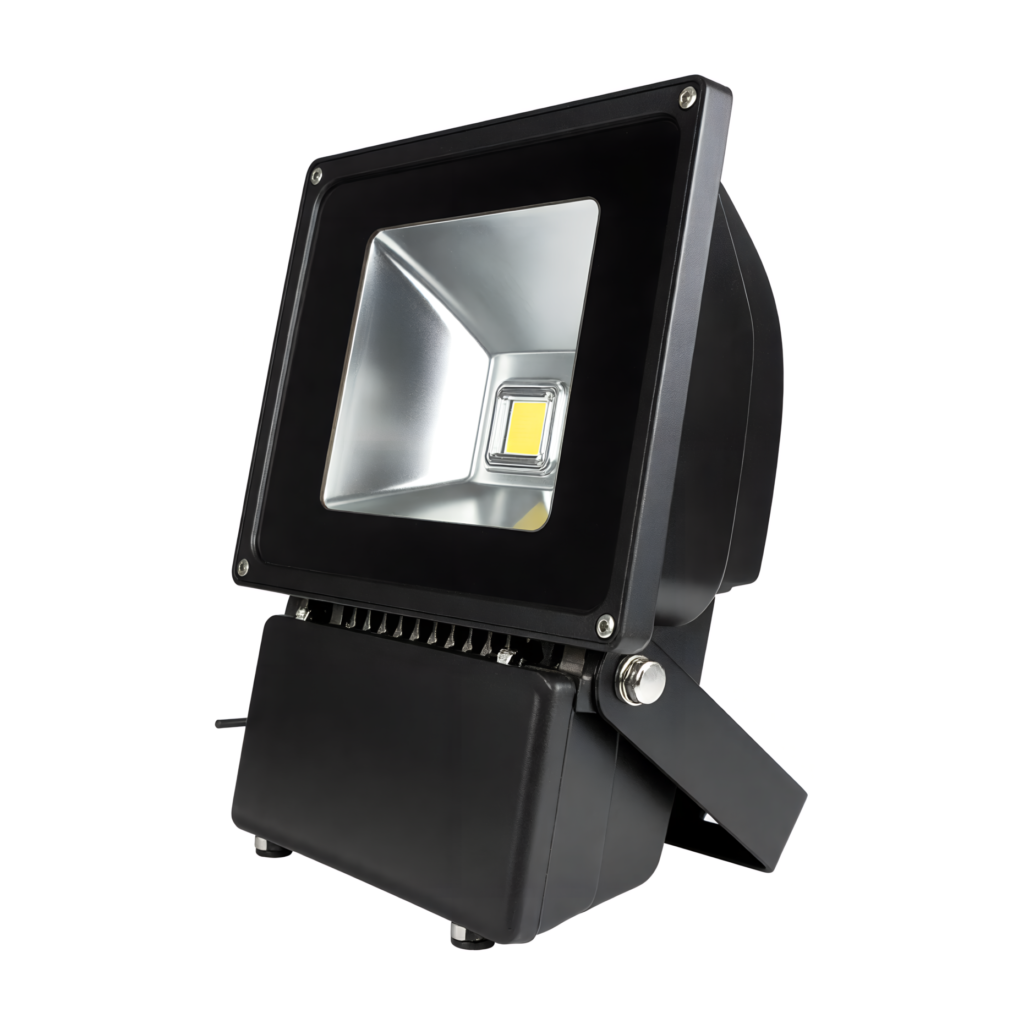

Sharp II
All RAL Color
Sharp II LED Flood Light is a cost-effective solution, with full range of wattage and optional light distribution, Sharp II is available for multiple applications. Multiple light distributions for different applications even for stadium and billboard. It can also be used as street light with slip fitter mounting accessory.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-FL307080 | 80W | LED | 8000lm | A287xB236xC160mm |
| LP-FL3070100 | 100W | LED | 10000lm | A287xB236xC160mm |
| LP-FL3070120 | 120W | LED | 12000lm | A287xB236xC160mm |
| LP-FL3070150 | 150W | LED | 15000lm | A287xB236xC160mm |
Technical Specification
Construction
HousingDie cast Housing with black powder coat.
DiffuserTempered Glass
Color AvailableAll RAL Color
ReflectorAluminium Reflector
Optical & Performance
Beam Angle15° / 24° / 36° / 45° / 60° / 90° / 120°
Lifespan>50,000 Hours (L90 B10)
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-30C° ~ 60C°
IP Rating66
IK08
TMSeries WiringRohsRecycleProtectionPluginLM 80OutdoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
