Manufactured in Leicester · 5-7 year warranty

Photometric

30,875 61,750 92,625 123,500 90° 90° cd
Item code
LP-FL3050300
Output
48,000 lm · 300 W
Beam angle
36°
Peak intensity
123,500 cd
Centre lux at 2 m / 3 m
30,875 / 13,722 lx
Beam width at 3 m
1.95 m
BUG rating
B4-U0-G0
CRI
>90

Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.

Flood & Spike Lights

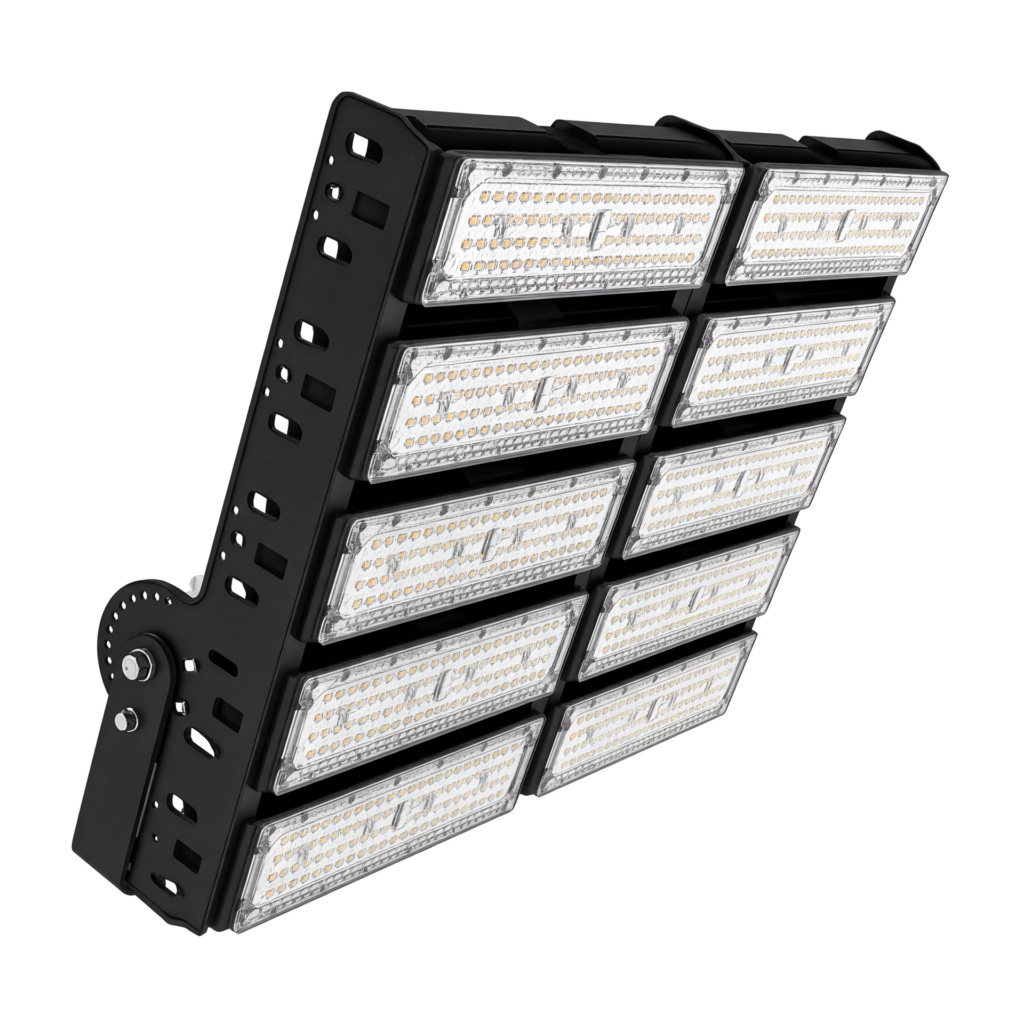

MVS

RAL 5008 Gray Blue

MVS LED Flood Lights are broad-beamed, high-intensity artificial lights. They are often used to illuminate outdoor playing fields while an outdoor sports event is being held during low-light conditions. The white beam of light produced by it is very much similar to daylight. When used in stadiums, it makes the spectators feel as though it is day time. MVS LED Flood Lights are impervious to temperature fluctuations and environmental conditions. Unlike some other lights, LEDs remain stable & functional even in freezing conditions. This makes them all the more ideal for cold warehouses and storage areas.Being free of Mercury, Lead and Carbon Emissions, MVS LED Flood Lights do not give out any harmful emissions such as carbon. As a result, they are much friendlier to the environment and also to the health of people nearby. What’s more, they do not emanate heat and conserve the maximum amount of electricity, which also leads to longevity and safety. It is of IP Rate 67, which means its excellent performance in waterproof, Energy Friendly. LED flood lights eliminate the need for frequent bulb replacements, and you can save as much as 80% on electricity costs, Unaffected by Weather and Temperature Changes. Bold LED flood lights are impervious to temperature fluctuations and environmental conditions.

Item Codes

Item CodePowerLampLumenDimensions
LP-FL3050150150WLED24000lmA350 X B240 X C75mm
LP-FL3050200200WLED32000lmA350 X B240 X C75mm
LP-FL3050300300WLED48000lmA350 X B240 X C75mm
LP-FL3050400400WLED64000lmA605 X B240 X C75mm
LP-FL3050600600WLED96000lmA665 X B315 X C75mm

Technical Specification

Construction
HousingDie-casting Aluminum
DiffuserPMMA
Color AvailableRAL 5008 Gray Blue
ReflectorAluminium Reflector
Optical & Performance
Beam Angle15° / 24° / 36° / 45°
Lifespan>50,000 Hours (L90 B10)
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-10C° ~ 65C°
IP Rating67
IK08
TMSeries WiringRohsRecycleProtectionPluginLM 80OutdoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
