Brighton
Silver

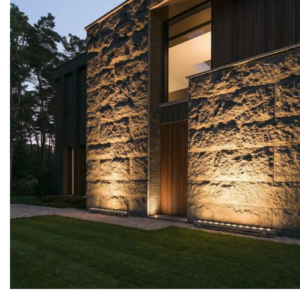

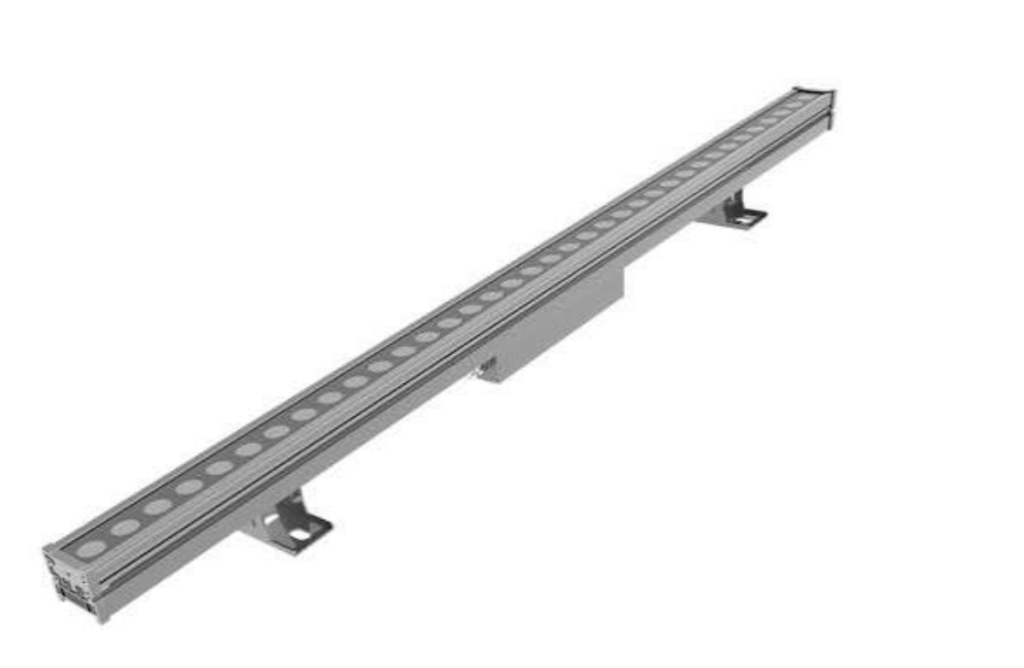

Brighton is a one metre linear wall washer for grazing stone, brick and textured facades. A 6063 aluminium body with a toughened glass front, IP65 for outdoor use, with a 30° beam or an asymmetric 15° x 60° optic. Philips LEDs and a MEAN WELL driver with 3kV surge protection, dimmable on 1-10V, PWM or DALI.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-FL302836 | 36W | LED | A1000 x B50 x C30mm |
Technical Specification
Construction
Housing6063 Aluminium Alloy
DiffuserToughened Glass
Optical & Performance
Beam Angle30° / 15° x 60°
CRI≥80
Colour Temperature3000K / 6000K / RGB
Lifespan50,000 Hours
Electrical
VoltageAC220-240V
LED DriverMEAN WELL, 85% efficiency, 3kV surge protection
Dimming1-10V / PWM / DALI
Protection & Environment
Working Temperature-15°C ~ +50°C
IP Rating65
Dimensions & Mounting
MountingSurface
Further Details
Light SourcePhilips LED
