Photometric

Item code: LP-FL3060100
Output: 18,000 lm · 100 W
Beam angle: 36°
Peak intensity: 46,313 cd
Centre lux at 2 m / 3 m: 11,578 / 5,146 lx
Beam width at 3 m: 1.95 m
BUG rating: B4-U0-G0
CRI: >90

Download IES Download LDT Photometric data sheet

Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.

Flood & Spike Lights

Broad

Black

White & Gray

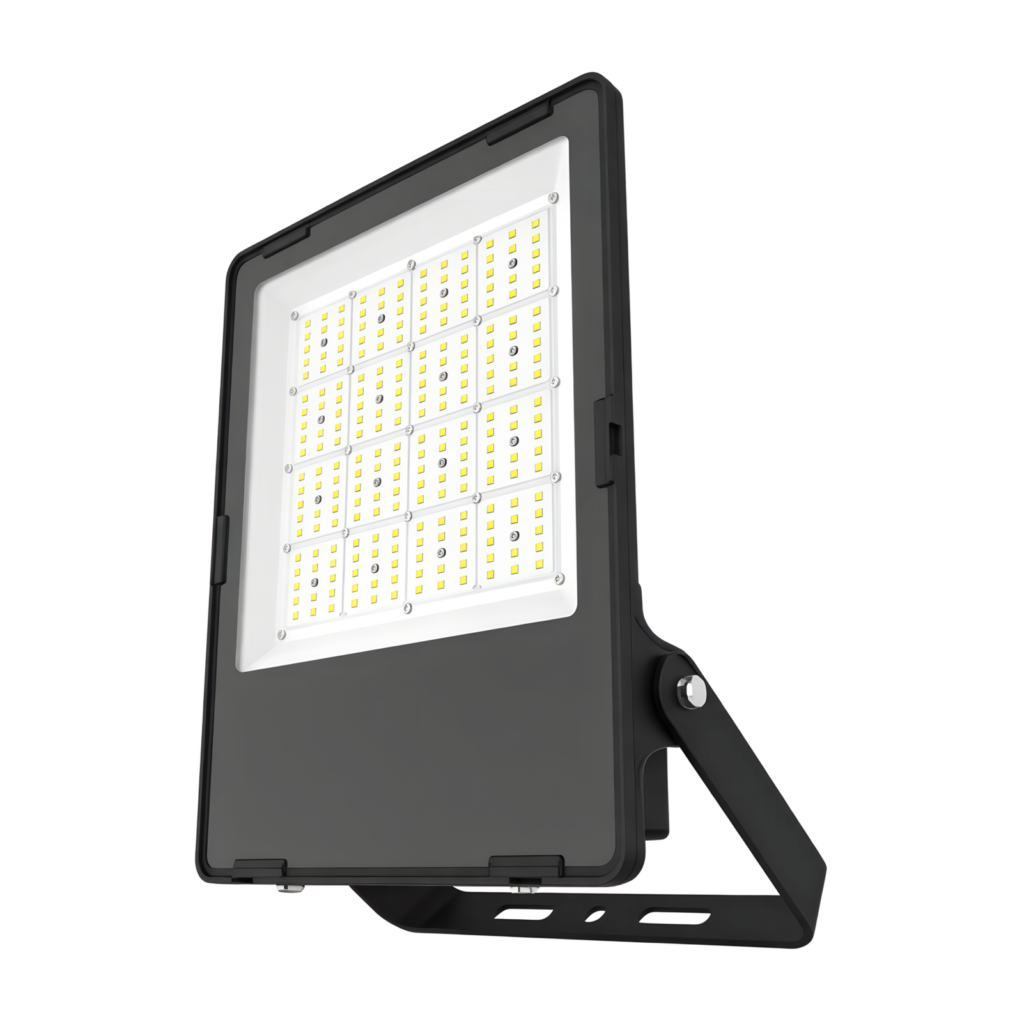

Broad LED Flood Light is a cost-effective solution, with full range of wattage and optional light distribution, Broad is available for multiple applications. Multiple light distributions for different applications even for stadium and billboard. It can also be used as street light with slip fitter mounting accessory.

Item Codes

Item Code	Power	Lamp	Lumen	Dimensions
LP-FL306020	20W	LED	3600lm	A220 X B160 X C87 mm
LP-FL306030	30W	LED	5400lm	A220 X B160 X C87 mm
LP-FL306050	50W	LED	9000lm	A220 X B160 X C87 mm
LP-FL306080	80W	LED	14400lm	A357 X B270 X C71 mm
LP-FL3060100	100W	LED	18000lm	A357 X B270 X C71 mm
LP-FL3060150	150W	LED	27000lm	A408 X B309 X C71 mm
LP-FL3060200	200W	LED	36000lm	A408 X B309 X C71 mm
LP-FL3060300	240W	LED	43200lm	A481 X B372 X C71 mm
LP-FL3060240	300W	LED	54000lm	A481 X B372 X C71 mm
