Manufactured in Leicester · 5-7 year warranty

Photometric

46,313 92,625 138,938 185,250 90° 90° cd
Item code
LP-FL3020400
Output
72,000 lm · 400 W
Beam angle
36°
Peak intensity
185,250 cd
Centre lux at 2 m / 3 m
46,313 / 20,583 lx
Beam width at 3 m
1.95 m
BUG rating
B4-U0-G0
CRI
>90

Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.

Flood & Spike Lights

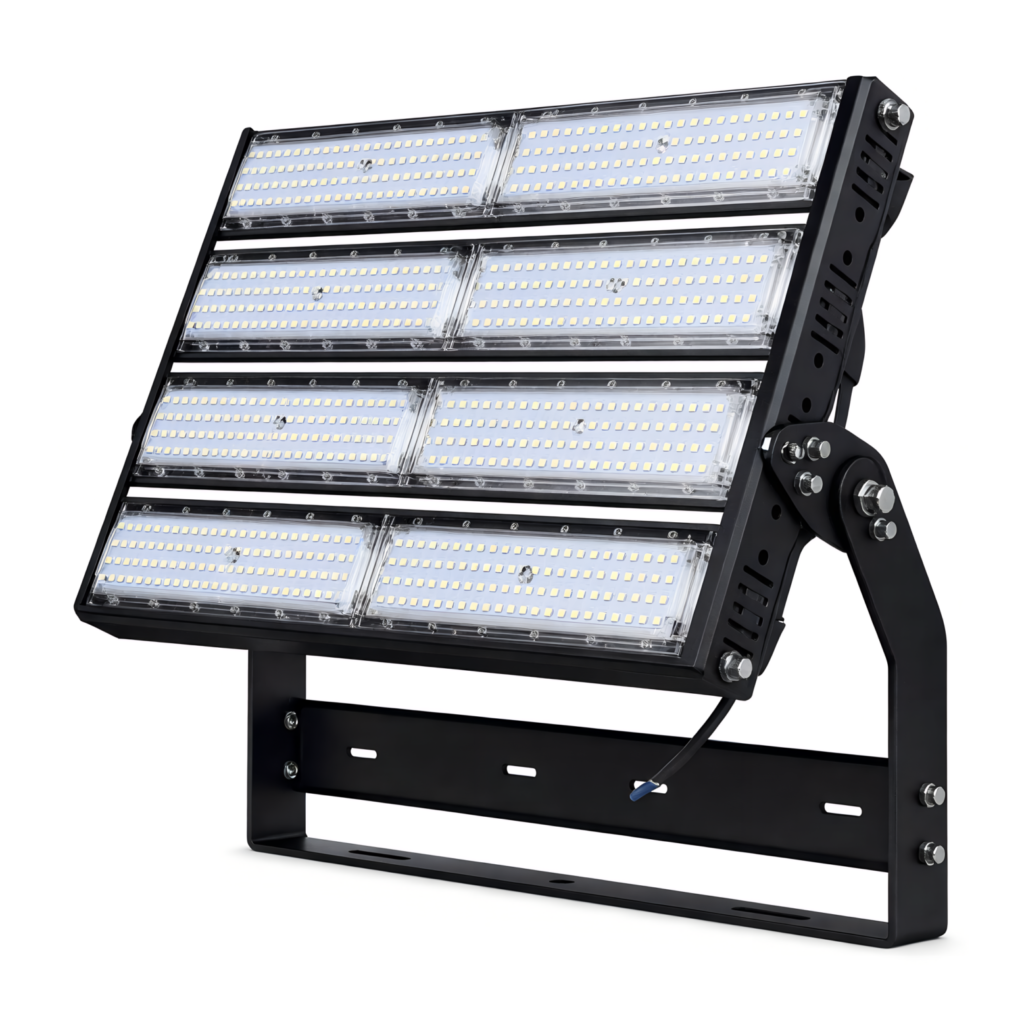

Stad

RAL 5008 Gray Blue

Stad LED Flood Lights are often used to illuminate outdoor playing fields while an outdoor sports event is being held during low-light conditions. The white beam of light produced by it is very much similar to daylight. When used in stadiums, it makes the spectators feel as though it is day time. Stad LED Flood Lights are impervious to temperature fluctuations and environmental conditions. Unlike some other lights, LEDs remain stable and functional even in freezing conditions. This makes them all the more ideal for cold warehouses and storage areas.Stad LED Flood Lights are friendly to the environment and also to the health of people nearby. What’s more, they do not emanate heat and conserve the maximum amount of electricity, which also leads to longevity and safety. It is of IP Rate 67, which means its excellent performance in waterproof, Energy Friendly. LED flood lights eliminate the need for frequent bulb replacements, and you can save as much as 80% on electricity costs, Unaected by Weather & Temperature Changes. Stad LED flood lights are impervious to temperature fluctuations and environmental conditions.

Item Codes

Item CodePowerLampLumenDimensions
LP-FL3020150150WLED27000lmA260 X B263 X C100mm
LP-FL3020200200WLED36000lmA347 X B263 X C100mm
LP-FL3020400400WLED72000lmA473 X B540 X C115mm
LP-FL3020600600WLED108000lmA674 X B540 X C115mm
LP-FL3020800800WLED144000lmA849 X B545 X C115mm
LP-FL302010001000WLED180000lmA1044 X B551 X C115mm

Technical Specification

Construction
HousingDie Cast Aluminum
DiffuserPolycarbonate Lens
Color AvailableRAL 5008 Gray Blue
ReflectorAluminium Reflector
Optical & Performance
Beam Angle15° / 24° / 36° / 45° / 60° / 90° / 120°
Lifespan>50,000 Hours (L90 B10)
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-10C° ~ 60C°
IP Rating67
IK08
TMSeries WiringRohsRecycleProtectionPluginLM 80OutdoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA

Downloads

Download all
