Photometric

Item code: LP-FL3062150
Output: 22,500 lm · 150 W
Beam angle: 36°
Peak intensity: 57,891 cd
Centre lux at 2 m / 3 m: 14,473 / 6,432 lx
Beam width at 3 m: 1.95 m
BUG rating: B4-U0-G0
CRI: >90

Download IES Download LDT Photometric data sheet

Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.

Flood & Spike Lights

Lumina

Grey

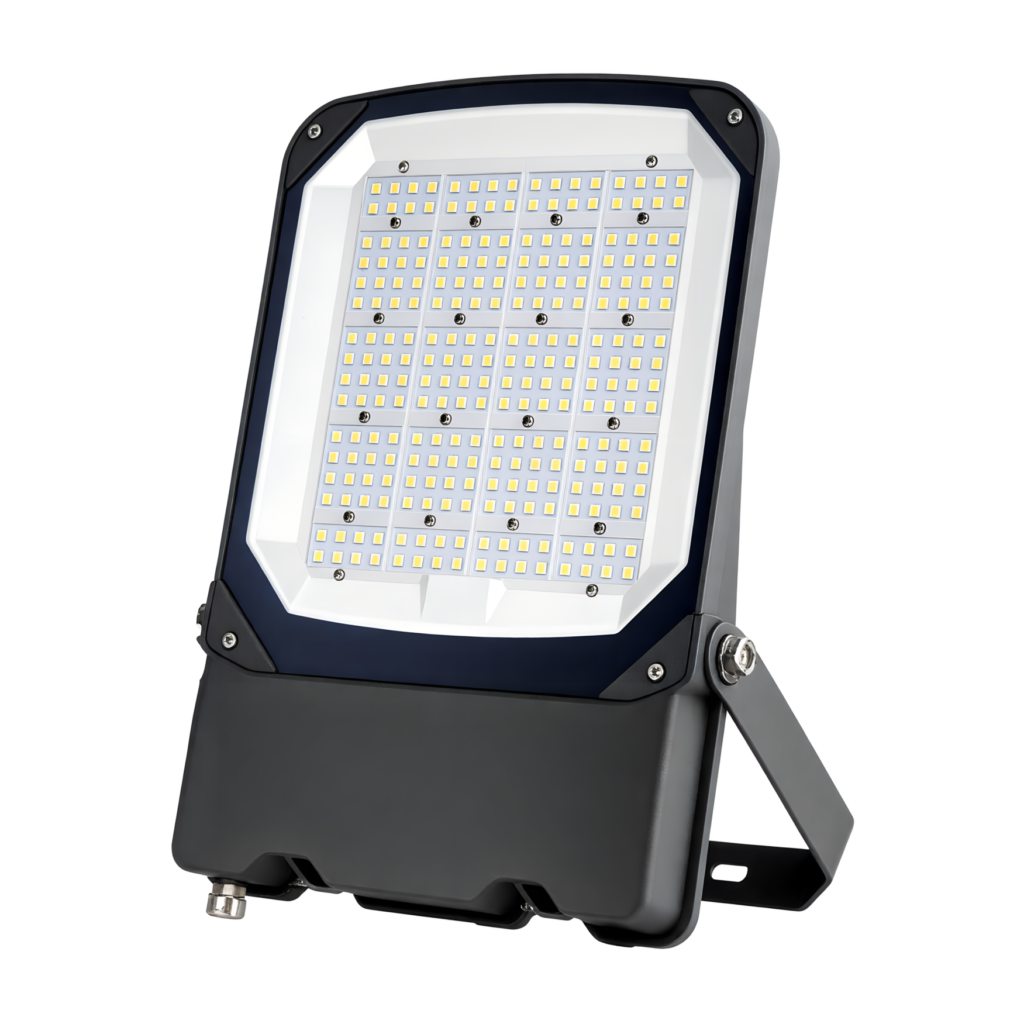

Lumina floodlight with High-quality die-cast aluminum #ADC12 housing, integrated shell, high hardness, not easy to break, good heat dissipation, greatly improving service life. The lamp body is completely sealed and suitable work in thunder and rain. High-quality high-brightness LED light source, high luminous efficiency, high color rendering, no radiation pollution, long service life. No EMI, low harmonic distortion (THD), through the CE, ROSS, FCC, SAA, RCM certification requirements. Easy of maintenance. Tool-less opening of gear compartment & gear tray replacement. Energy saving >60% compared with traditional HID or metal Halide lamps.

Item Codes

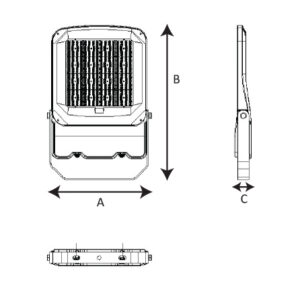

Item Code	Power	Lamp	Lumen	Dimensions
LP-FL306250	50W	LED	7500lm	A270 X B425 X C52 mm
LP-FL306280	80W	LED	12000lm	A270 X B425 X C52 mm
LP-FL3062100	100W	LED	15000lm	A270 X B425 X C52 mm
LP-FL3062120	120W	LED	18000lm	A270 X B425 X C52 mm
LP-FL3062150	150W	LED	22500lm	A320 X B473 X C51 mm
LP-FL3062180	180W	LED	27000lm	A320 X B473 X C51 mm
LP-FL3062200	200W	LED	30000lm	A370 X B474 X C52 mm
LP-FL3062230	230W	LED	34500lm	A370 X B474 X C52 mm
LP-FL3062250	250W	LED	37500lm	A370 X B474 X C52 mm
