Photometric
- Item code
- LP-UWL501036
- Output
- 3,600 lm · 36 W
- Beam angle
- 36°
- Peak intensity
- 9,263 cd
- Centre lux at 2 m / 3 m
- 2,316 / 1,029 lx
- Beam width at 3 m
- 1.95 m
- BUG rating
- B3-U0-G0
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Widy

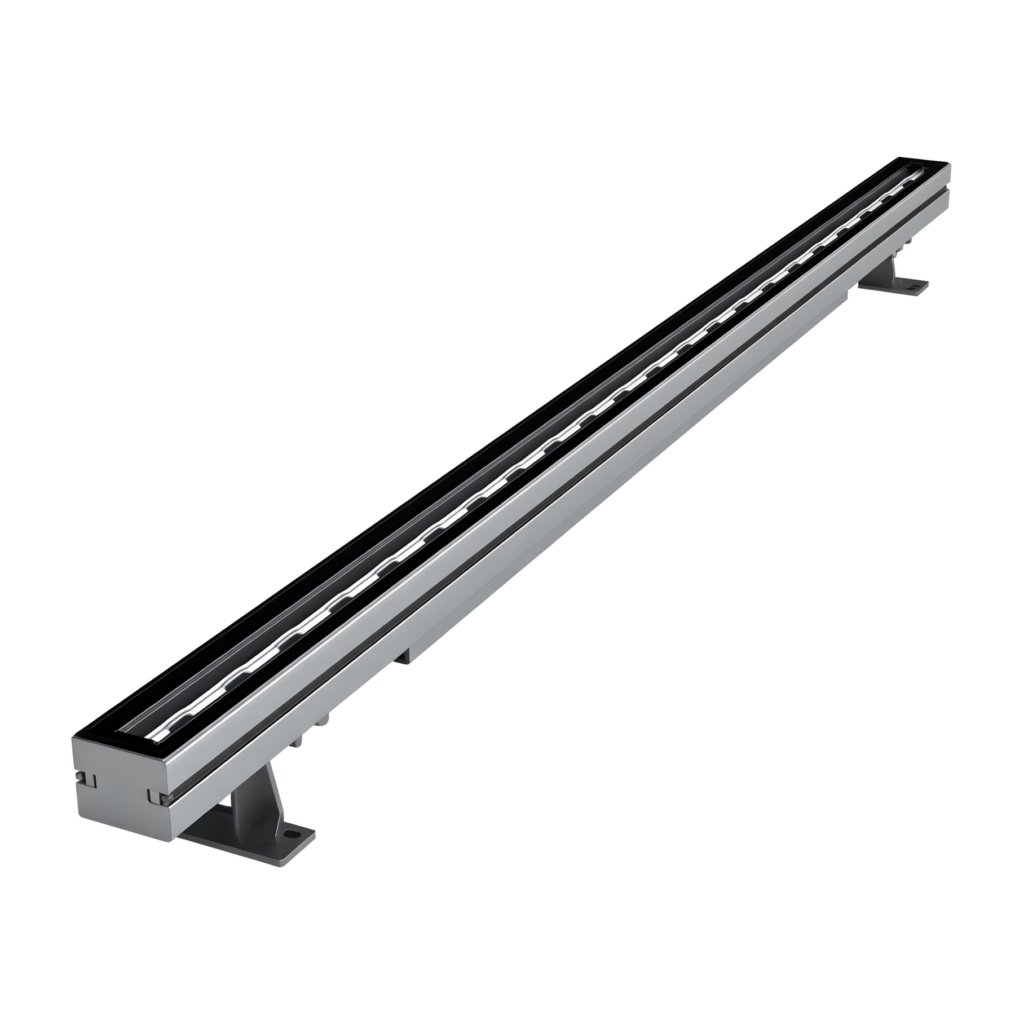

High power LED wall washer light, fashion and beautiful appearance, with the design of increasing heat dissipation to fully ensure the stability and long lifespan of LED fixture. The light body adopts 6063 aluminum alloy molding, surface with anodizing treatment, lampshade adopts high strength toughened glass, resist the impact and friction, has excellent rainwater clean ability. LED light source, high flus output, excellent consistency of light color, Constant current driver with PWM gray control installed inside, RGB gray level can reach to 65,536 degree equally, make the dynamic light-dimmer more soft and the color richer. 4, Powerful DMX512 interface adopts high reliable bus connect, all has the function of automatic addressing.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-UWL501009 | 09W | LED | 900lm | A1000 x B40 x C52mm |
| LP-UWL501012 | 12W | LED | 1200lm | A1000 x B40 x C52mm |
| LP-UWL501018 | 18W | LED | 1800lm | A1000 x B40 x C52mm |
| LP-UWL501024 | 24W | LED | 2400lm | A1000 x B40 x C52mm |
| LP-UWL501036 | 36W | LED | 3600lm | A1000 x B40 x C52mm |
| LP-UWL502011 | 11W | LED | 715lm | A1000 x B40 x C52mm |
| LP-UWL502021 | 21W | LED | 1365lm | A1000 x B40 x C52mm |
| LP-UWL502028 | 28W | LED | 1820lm | A1000 x B40 x C52mm |
| LP-UWL502042 | 42W | LED | 1730lm | A1000 x B40 x C52mm |
