Photometric
- Item code
- LP-FL306730
- Output
- 3,600 lm · 30 W
- Beam angle
- 36°
- Peak intensity
- 9,263 cd
- Centre lux at 2 m / 3 m
- 2,316 / 1,029 lx
- Beam width at 3 m
- 1.95 m
- BUG rating
- B3-U0-G0
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Flood & Spike Lights
Frank
Black

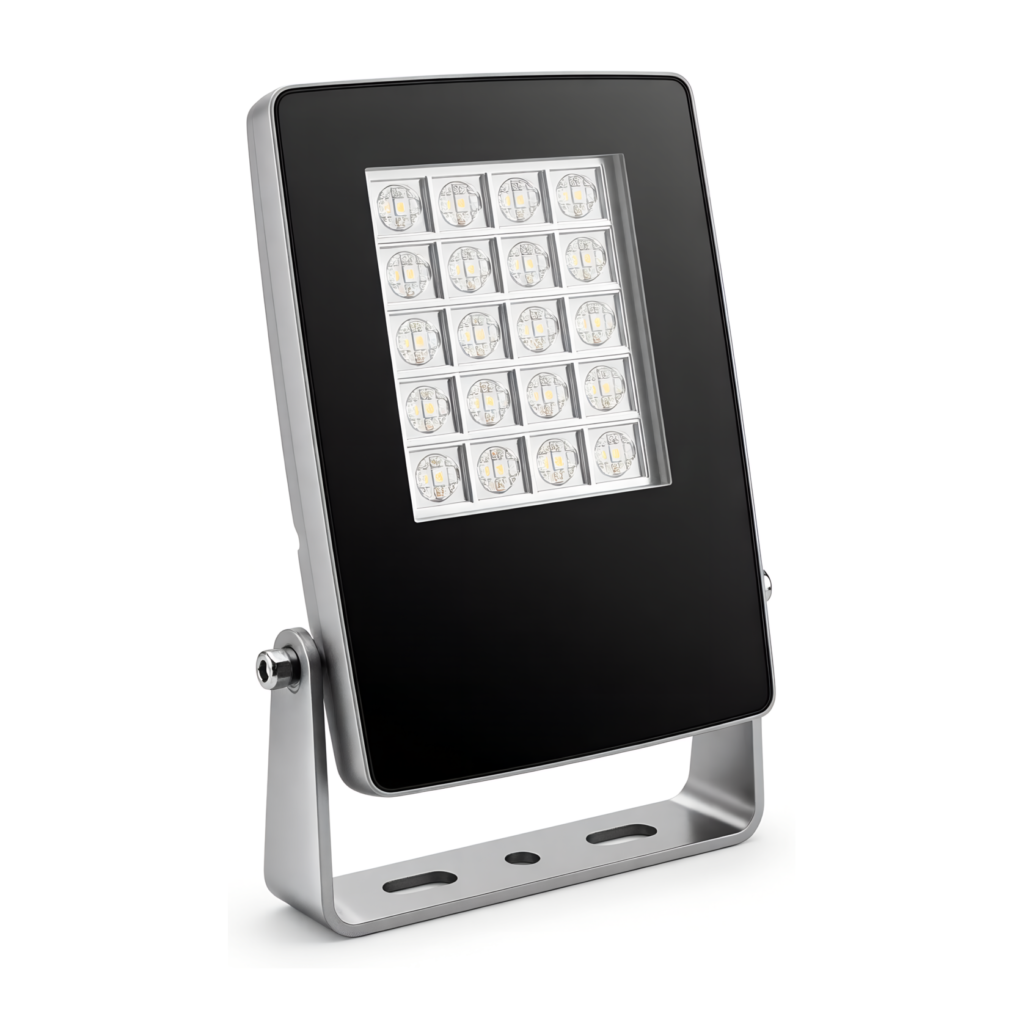

Frank LED Flood Light is the family of neat products designed for fast and easy installation and with a 5 year guarantee. Frank Flood light is the new range of compact LED spot die-cast aluminium. It is the best solution for architectural lighting, both for indoor and outdoor, able to combine quality lighting, energy saving and low maintenance.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-FL306722 | 22W | LED | 2640lm | A235 X B175 X C42 mm |
| LP-FL306730 | 30W | LED | 3600lm | A235 X B175 X C42 mm |
| LP-FL306736 | 36W | LED | 4320lm | A235 X B175 X C42 mm |
Technical Specification
Construction
HousingDie Cast Aluminum
DiffuserPMMA with Glass Cover
Color AvailableBlack
ReflectorAluminium Reflector
Optical & Performance
Beam Angle15° / 24° / 36° / 45° / 60° / 90° / 120°
Lifespan>50,000 Hours (L90 B10)
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-10C° ~ 50C°
IP Rating66
TMSeries WiringRohsRecycleProtectionPluginLM 80OutdoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
