Photometric
- Item code
- LP-SL192607
- Output
- 840 lm · 7 W
- Beam angle
- 36°
- Peak intensity
- 2,161 cd
- Centre lux at 2 m / 3 m
- 540 / 240 lx
- Beam width at 3 m
- 1.95 m
- UGR
- <19
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Spot Lights
Pioneer
White

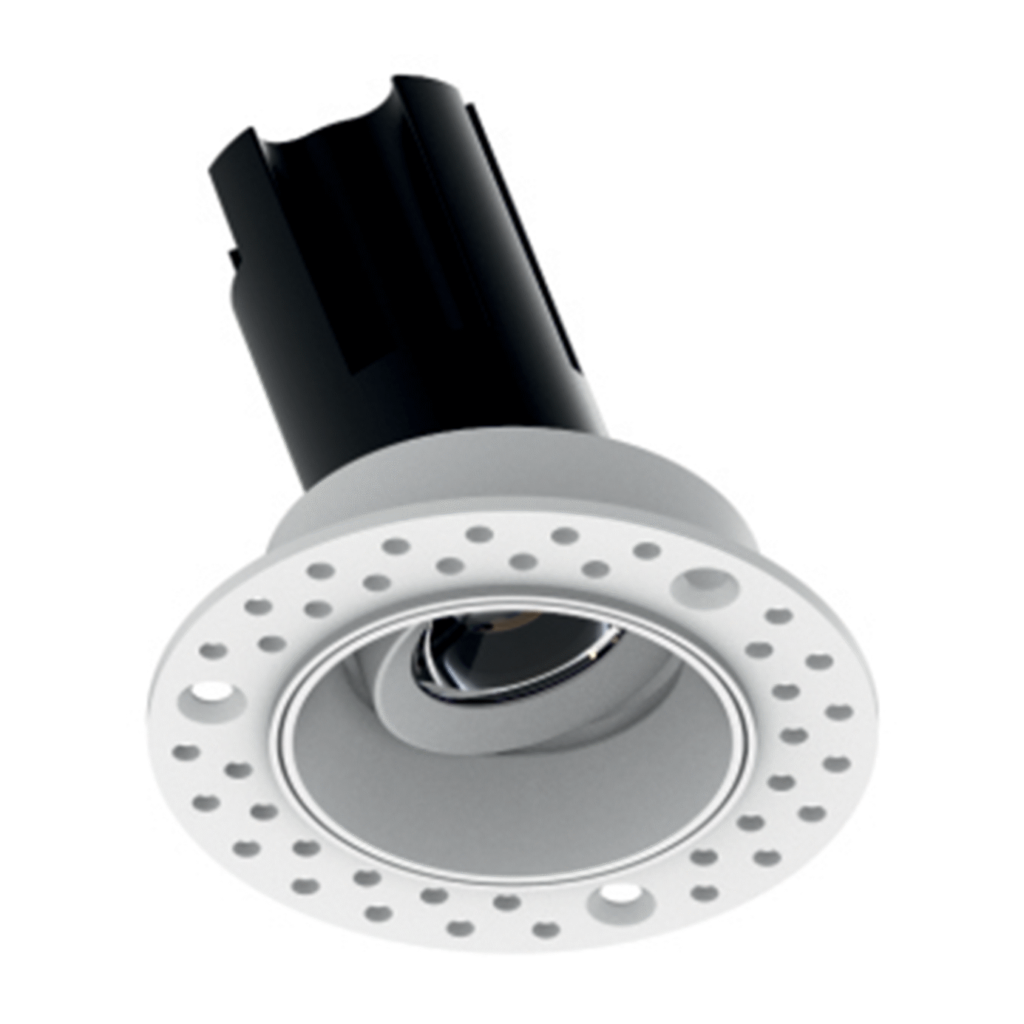

Pioneer LED Spot Light Unique detachable structure with various trims combination Curved edge heat sink provides the utmost heat dissipation High lumen LED COB light source with cut-out size 55mm. Pioneer can be used for Modern Work spaces, Institutions, Small Formal Retail Outlets, Hotels and High End Villa’s.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-SL192607 | 07W | LED | 840lm | AØ78 X B77mm |
Technical Specification
Construction
HousingDie-Cast Aluminum
DiffuserPMMA Polycarbonate
Color AvailableWhite
ReflectorAluminium Reflector
Optical & Performance
Lifespan>50,000 Hours (L90 B10)
Beam Angle15° / 24° / 36° / 60°
Electrical
VoltageAC220~240V - 50/60Hz
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-20°~+40°C
IP Rating40
TMSeries WiringRohsRecycleProtectionPluginLM 80IndoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
