Photometric

772 1,544 2,316 3,088 90° 90° cd
Item code
LP-SL181410
Output
1,200 lm · 10 W
Beam angle
36°
Peak intensity
3,088 cd
Centre lux at 2 m / 3 m
772 / 343 lx
Beam width at 3 m
1.95 m
BUG rating
B2-U0-G0
CRI
>90

Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.

Spot Lights

Minis II

White

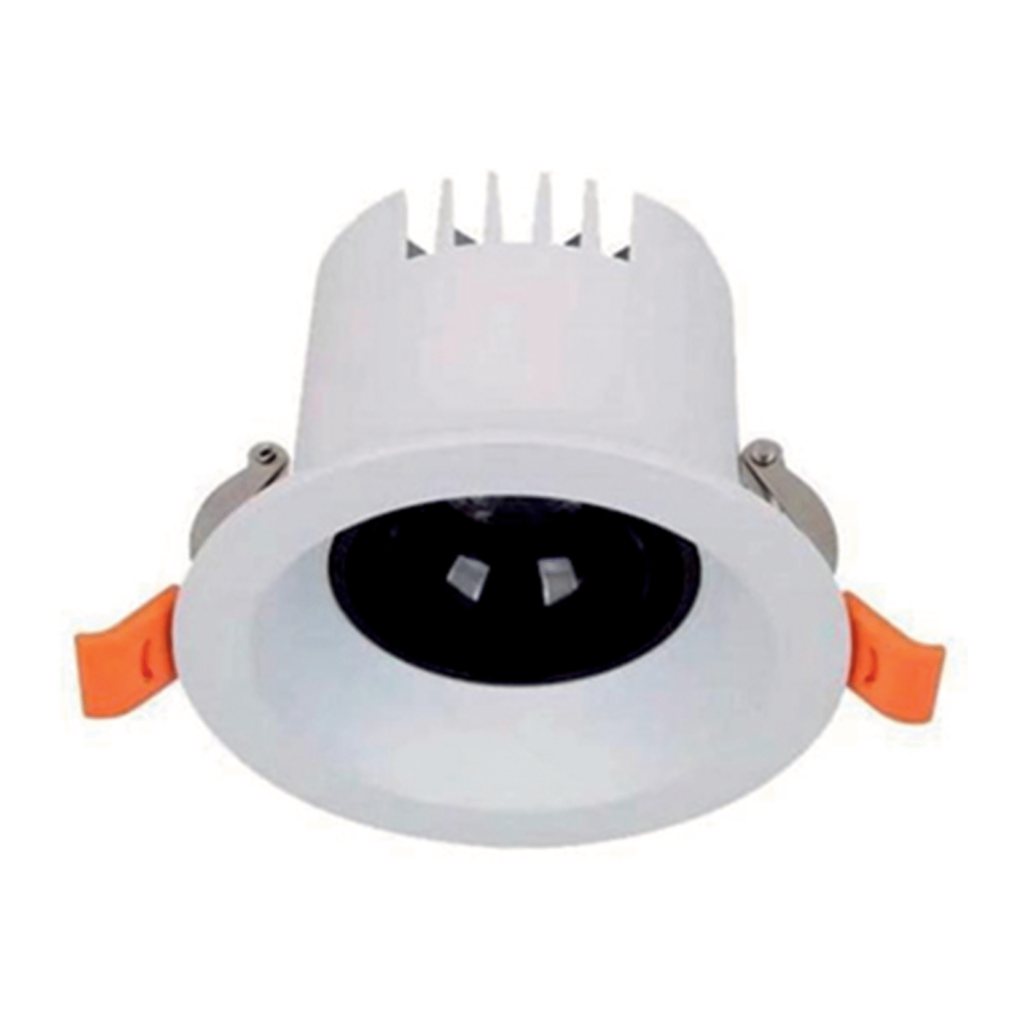

Minis II LED Spot Light is a mini and exquisite lamp with high light transmittance PMMA lens. it’s offers a very little size in many design styles, without forgetting about the functionality: all the range is characterized by the use high quality LED technology, so the result is a choice of accent light suitable for false ceiling, kitchen cabinet and not only. The possible applications are a multitude. The minis spotlights are all environmental friendly and very useful in a matter of energy and economical saving. The light result is bright, uniform and comfortable. Housing made by die cast aluminium powder coated with choice of RAL colors reflector with pure die cast aluminium diffuser – tempered glass.

Item Codes

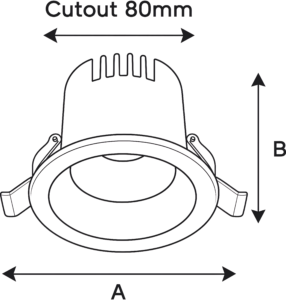

Item CodePowerLampLumenDimensions
LP-SL18141010WLED1200lmA90 X B65mm
LP-SL18141212WLED1440lmA90 X B65mm

Technical Specification

Construction
HousingDie-casting Aluminum
DiffuserClear Tempered Glass
Color AvailableWhite
ReflectorAluminium Reflector
Optical & Performance
Lifespan>50,000 Hours (L90 B10)
Beam Angle15° / 24° / 36°
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-10C° ~ 50C°
IP Rating65
TMSeries WiringRohsRecycleProtectionPluginLM 80IndoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
