Photometric
- Item code
- LP-SL187710
- Output
- 1,200 lm · 10 W
- Beam angle
- 36°
- Peak intensity
- 3,088 cd
- Centre lux at 2 m / 3 m
- 772 / 343 lx
- Beam width at 3 m
- 1.95 m
- UGR
- <19
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Spot Lights
Vetta
Black
White

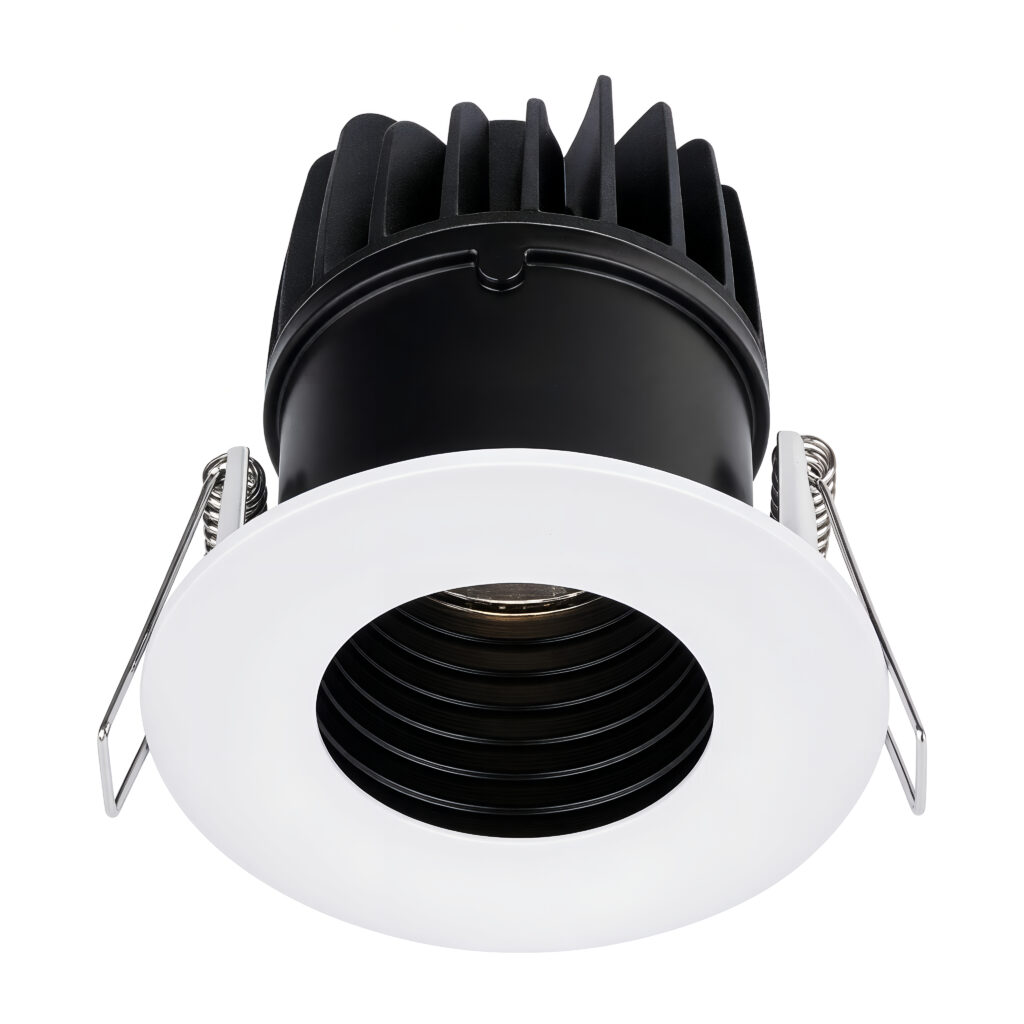

Vetta LED Spotlight is recessed ceiling spotlight, with an essential and complementary shape adopts super slim and compact design, perfectly suitable for the narrow ceiling installation. IP65 rating front cover design, suitable for damp environment. T-shape heat sink greatly increases the radiation area and improves cooling efficiency. The fitting could be adjust from 0-30 degree in horizontal direction, which can expand the illumination area.
Item Codes

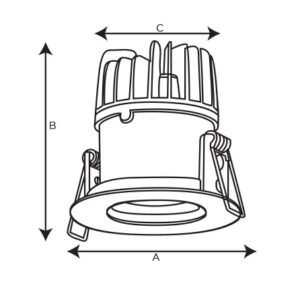

| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-SL187710 | 10W | LED | 1200lm | A90 X B86 X C83 mm |
| LP-SL187712 | 12W | LED | 1440lm | A90 X B86 X C83 mm |
Technical Specification
Construction
HousingLuminaire Body of Die-cast Aluminum, White, Powder-coated and Heat Sink Form a Compact Unit
DiffuserClear Tempered Glass
Color AvailableWhite/Black
ReflectorAluminium Reflector
Optical & Performance
Beam Angle15° / 24° / 36° / 45°
Lifespan>50,000 Hours (L90 B10)
UGR<13
MACADAM<3
LUMINOUS EFFICACY (LM/W)120
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-25C° ~ +45C°
IP Rating54
IK06
TMSeries WiringRohsRecycleProtectionPluginLM 80IndoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
