Photometric
- Item code
- LP-SL184510
- Output
- 1,200 lm · 10 W
- Beam angle
- 36°
- Peak intensity
- 3,088 cd
- Centre lux at 2 m / 3 m
- 772 / 343 lx
- Beam width at 3 m
- 1.95 m
- BUG rating
- B2-U0-G0
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Spot Lights
Meva
Black
White

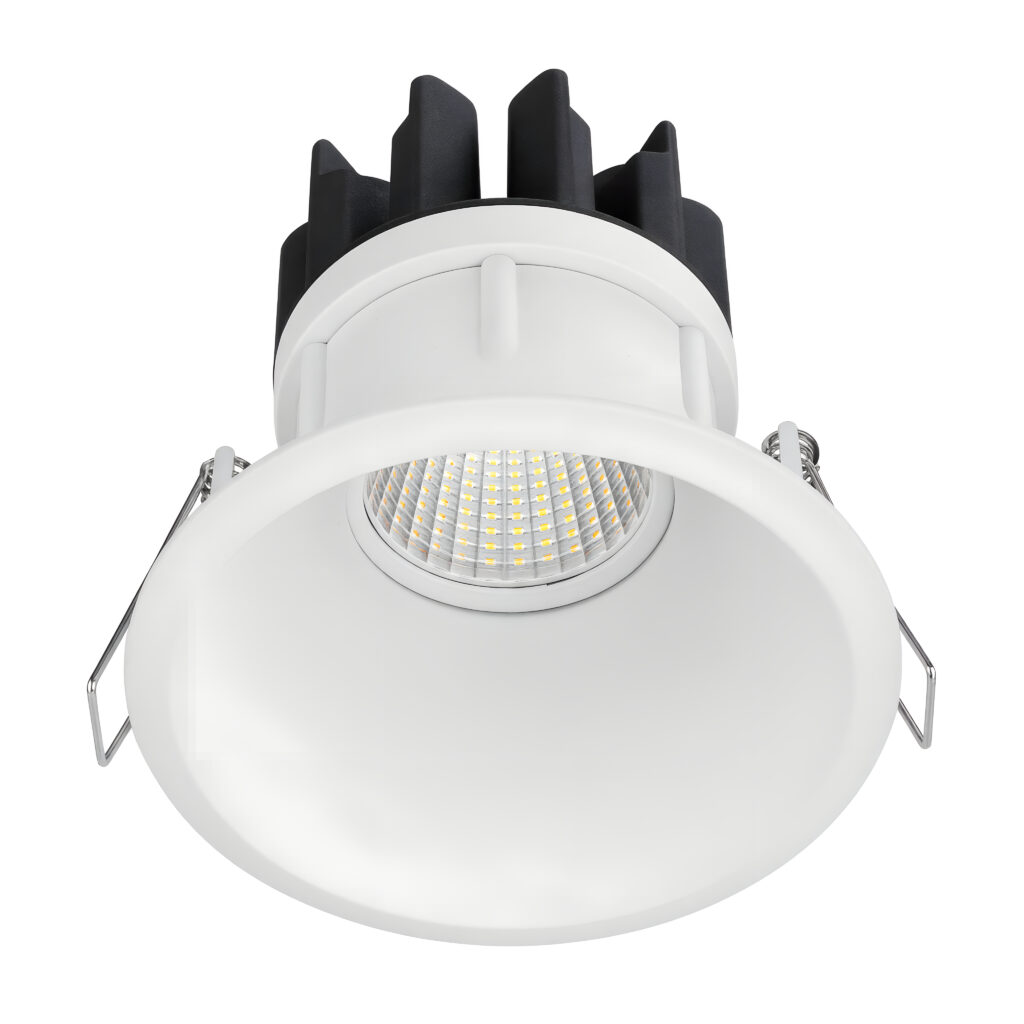

Meva LED Spot Light Discreet, curvy & colourful. Meva evokes minimalism, surprise and technology all at once. Subtle curves, slightly revealing colours, high-quality lens and LED. With its deep-recessed and glare-free light source, Astro’s clean and seamless execution makes it a quiet, functional observer for high-end residential or hospitality settings. This versatile, elegant architectural spot light will bring pure form, definition and quality light to any space without stealing all the attention.
Item Codes

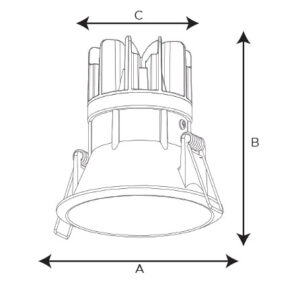

| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-SL184510 | 10W | LED | 1200lm | A102 X B97 X C90 mm |
| LP-SL184515 | 15W | LED | 1800lm | A102 X B118 X C90 mm |
Technical Specification
Construction
HousingDie-cast Aluminum
DiffuserPMMA
Color AvailableWhite/Black
ReflectorAluminium Reflector
Optical & Performance
Lifespan>50,000 Hours (L90 B10)
UGR<19
LUMINOUS EFFICACY (LM/W)120
MACADAM<3
Beam Angle15° / 24° / 36° / 45°
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-10C° ~ 45C°
IP Rating65
IK06
TMSeries WiringRohsRecycleProtectionPluginLM 80IndoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
