Photometric
- Item code
- LP-SL 182918
- Output
- 2,160 lm · 18 W
- Beam angle
- 36°
- Peak intensity
- 5,558 cd
- Centre lux at 2 m / 3 m
- 1,389 / 618 lx
- Beam width at 3 m
- 1.95 m
- UGR
- <19
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Spot Lights
Rapo
Black
White

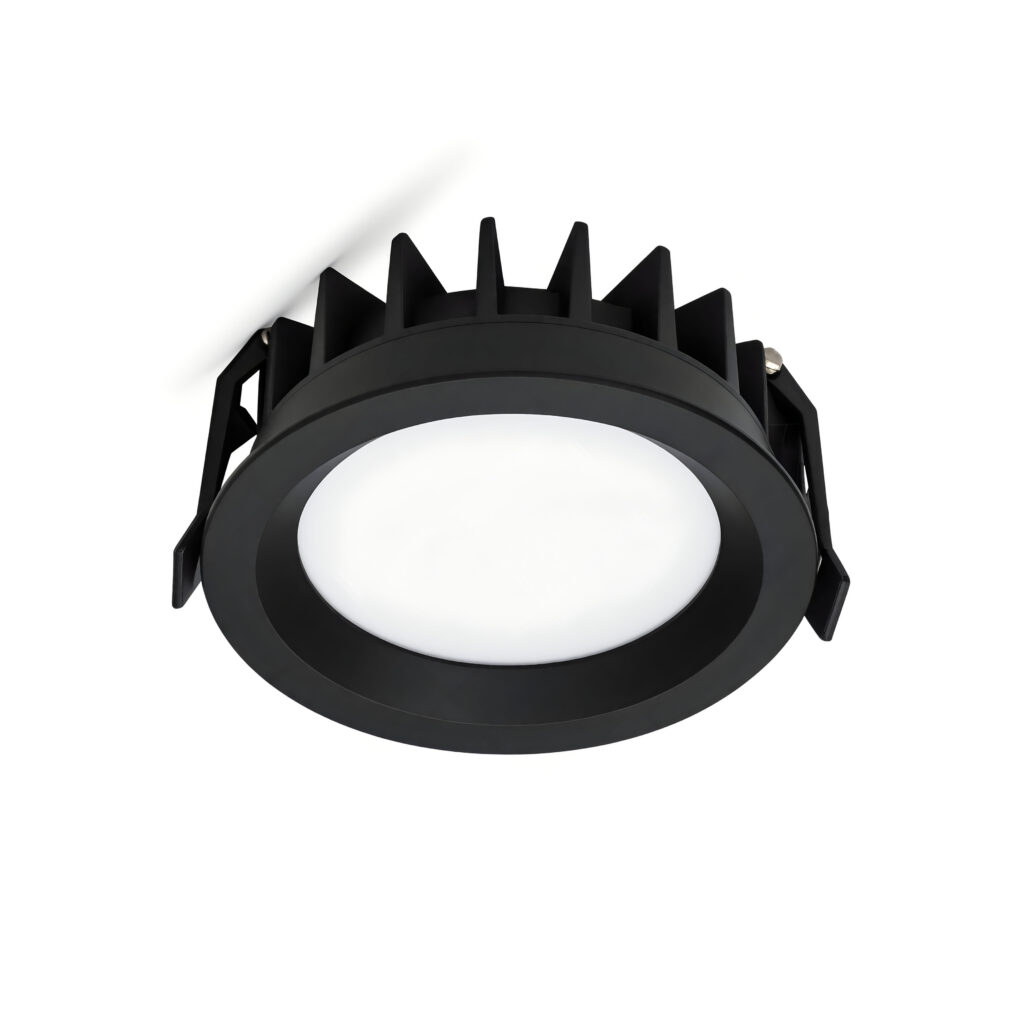

The RAPO LED Spot Light consists of power efficient electronic design with output as high as 120 Lumens/Watt. RAPO provides a huge power savings on your electricity bill and a design which will make you feel building a home around it. Best suitable for Home Decor, Retail Outlets, Commercial Outlets, Schools, Hospitals, Industries and many more.
Item Codes

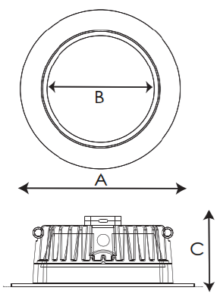

| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-SL 182912 | 12W | LED | 1440lm | A86 X B75 X C41 mm |
| LP-SL 182918 | 18W | LED | 2160lm | A110 X B95 X C41 mm |
| LP-SL 182924 | 24W | LED | 2880lm | A135 X B115 X C65 mm |
Technical Specification
Construction
HousingLuminaire Body of Die-cast Aluminum. White, Powder-coated
DiffuserOpal or Frosted PMMA / PC Diffuser
Color AvailableWhite/Black
Optical & Performance
Lifespan>50,000 Hours (L90 B10)
Beam Angle12° / 24° / 36°
Electrical
Voltage220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-20C° ~ 55C°
TMSeries WiringRohsRecycleProtectionPluginLM 80LEDIndoorFlicker FreeFEnergy StarENECCRI 90CidetCEA
