Photometric
- Item code
- LP-STL358507
- Output
- 700 lm · 7 W
- Beam angle
- 36°
- Peak intensity
- 1,801 cd
- Centre lux at 2 m / 3 m
- 450 / 200 lx
- Beam width at 3 m
- 1.95 m
- BUG rating
- B1-U0-G0
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Wall Surface
Doge
Black

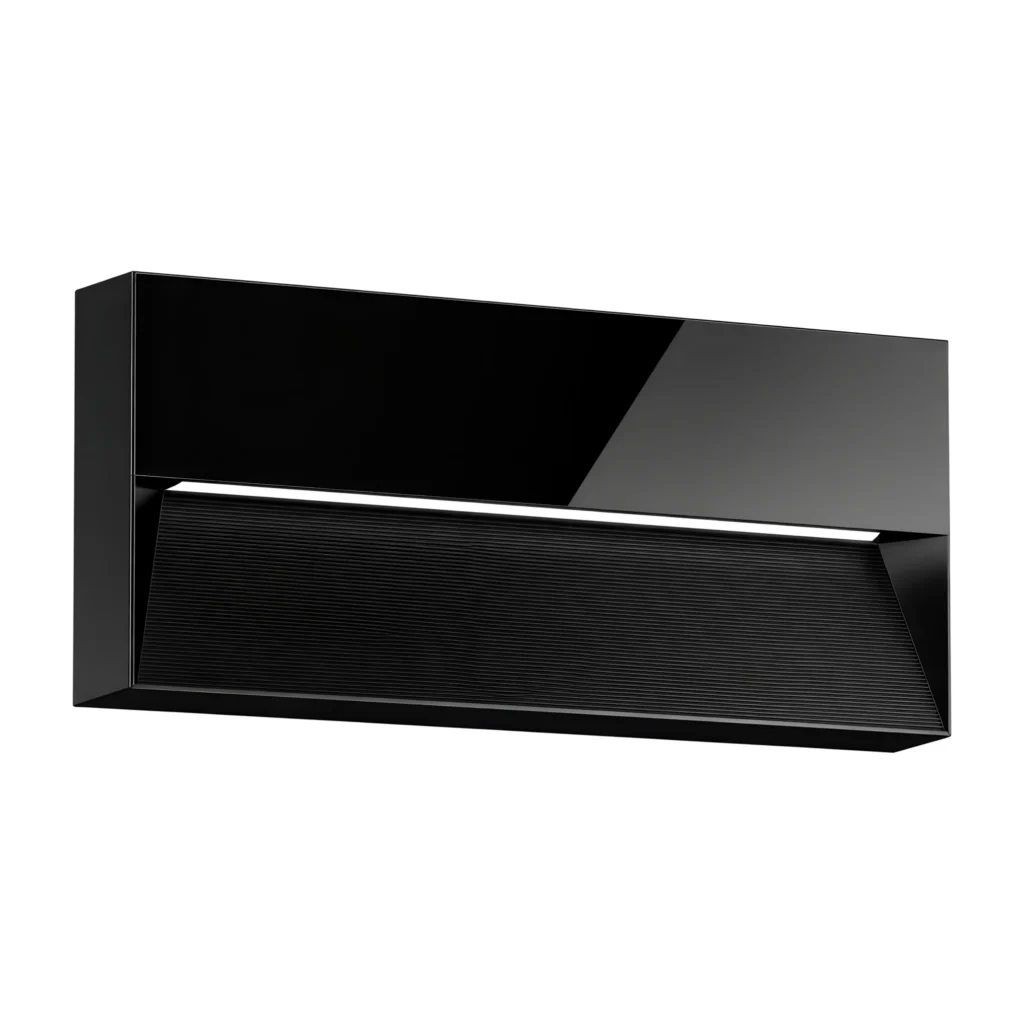

The surface mounted Pack step light features a slim-line, cast aluminium body and cable gland for easy installation made of aluminum and polycarbonate, it has IP65 protection to guarantee its use outdoors. Trim features a special chromate process before a polyester powder coated finish is applied, for extended wear in harsh external environments. It is a surface-mounted LED step light that stands out for its extremely fine design.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-STL358507 | 07W | LED | 700lm | A250 X B35 X C114 mm |
| LP-STL358512 | 12W | LED | 1440lm | A250 X B35 X C114 mm |
Technical Specification
Construction
HousingDie-Casting Aluminum
DiffuserGlass
Color AvailableBlack
ReflectorAluminium Reflector
Optical & Performance
Beam Angle15° / 24° / 36° / 60°
Lifespan>50,000 Hours (L90 B10)
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-20C° ~ 55C°
IP Rating65
IK08
TMSeries WiringRohsRecycleProtectionPluginLM 80OutdoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
