Photometric
- Item code
- LP-ODL377245
- Output
- 5,400 lm · 45 W
- Beam angle
- 60°
- Peak intensity
- 5,161 cd
- Centre lux at 2 m / 3 m
- 1,290 / 573 lx
- Beam width at 3 m
- 3.46 m
- BUG rating
- B3-U0-G0
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Wall Surface

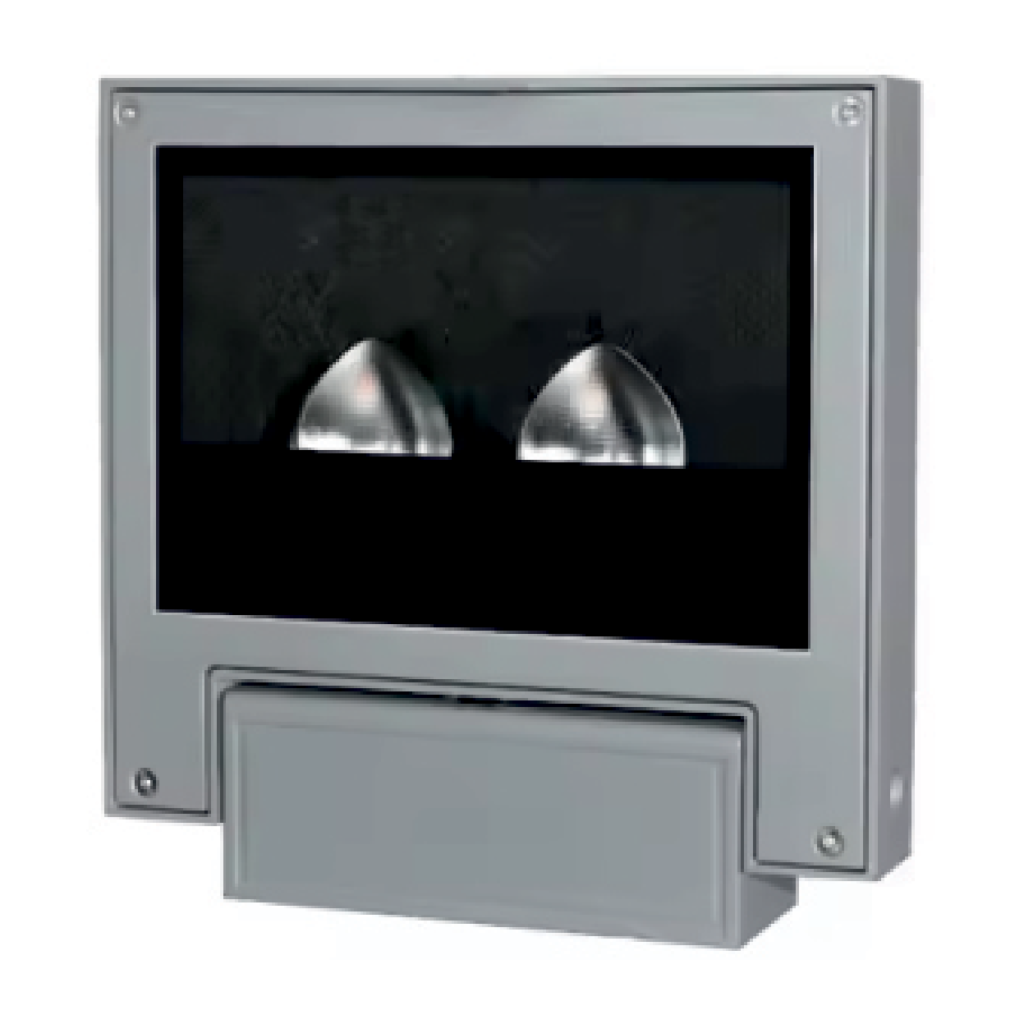

Cascade
White & Black
Cascade LED slim wall packs deliver full cutout or semi cutout light distribution. The innovative pivoting head design aims the light precisely. Suitable for applications including pathways, perimeter lighting and building entryways. This LED wall pack fixtures can be mounted on surface/facade, whether you have a new construction or upgrade application.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-ODL377245 | 45W | LED | 5400lm | A138 X B240 X C211mm |
Technical Specification
Construction
HousingPowder Coated Die cast Aluminum
DiffuserTempered Glass Diffuser
Color AvailableWhite & Black
ReflectorAluminium Reflector
Optical & Performance
Beam Angle60°
Lifespan>50,000 Hours (L80 B10 F10)
UGR<20
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-20C° ~ +60C°
IP Rating65
IK10
TMSeries WiringRohsRecycleProtectionPluginLM 80OutdoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
