Photometric
- Item code
- LP-ODL374715
- Output
- 1,350 lm · 15 W
- Beam angle
- 120°
- Peak intensity
- 414 cd
- Centre lux at 2 m / 3 m
- 103 / 46 lx
- Beam width at 3 m
- 10.39 m
- BUG rating
- B1-U0-G1
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.

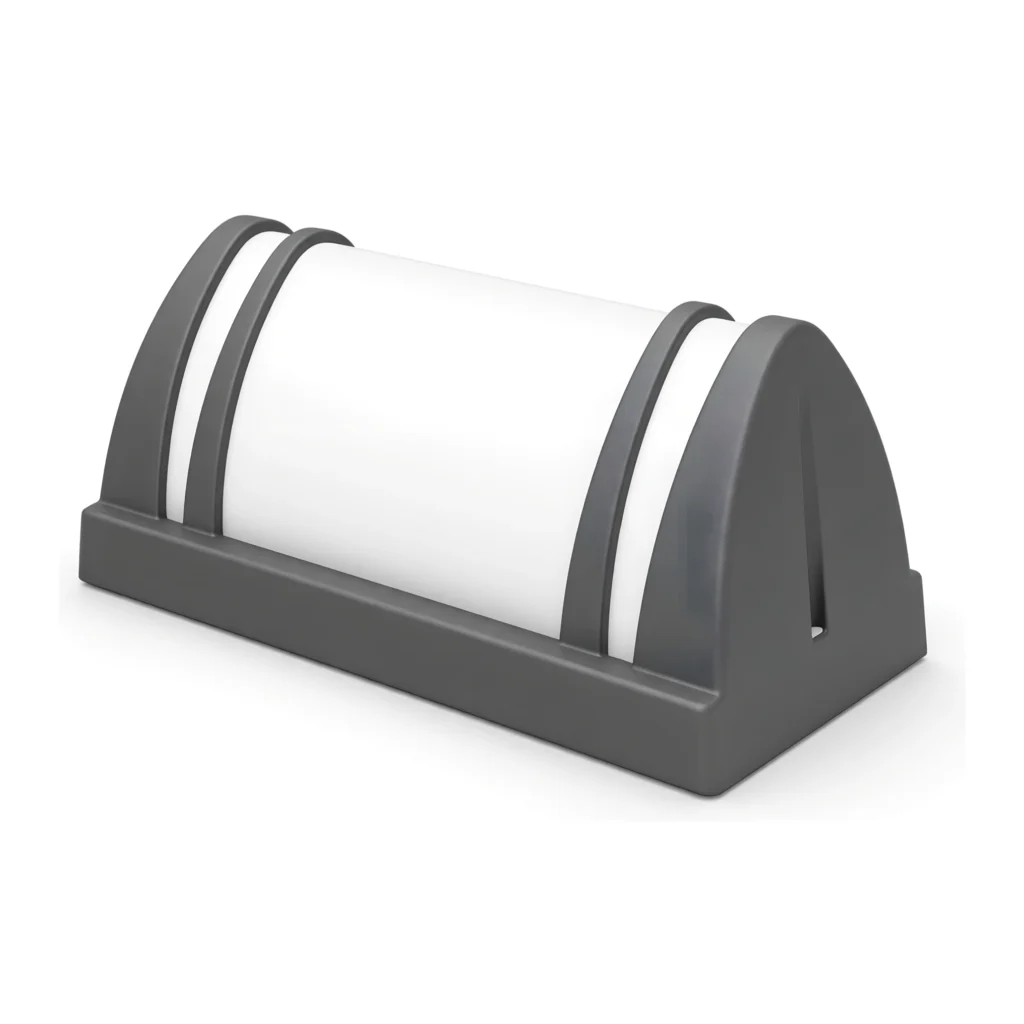

Wall Surface
Look
Black
White & Gray
Look lights, otherwise known as exterior building lights are special kinds of lights designed to be mounted on the outside part of commercial building walls. This Wall packs are designed with high intensity lamp heads that are energy efficient, durable and with low level of light pollution. Among the benefits of this light is its ability to illuminate specific areas outside the building.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-ODL374715 | 15W | LED | 1350lm | A260xB130xC116mm |
Technical Specification
Construction
HousingAluminum
DiffuserGlass Diffuser
Color AvailableBlack, White & Gray
ReflectorAluminium Reflector
Optical & Performance
Beam Angle120°
Lifespan>50,000 Hours (L90 B10)
Electrical
VoltageAC220~277V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-30C° ~ 60C°
IP Rating65
IK08
TMSeries WiringRohsRecycleProtectionPluginLM 80OutdoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
