Photometric
- Item code
- LP-STL35208.4
- Output
- 1,013 lm · 8.4 W
- Beam angle
- 110°
- Peak intensity
- 356 cd
- Centre lux at 2 m / 3 m
- 89 / 40 lx
- Beam width at 3 m
- 8.57 m
- UGR
- <19
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Wall Surface
Rav
Black & Dark Gray
White

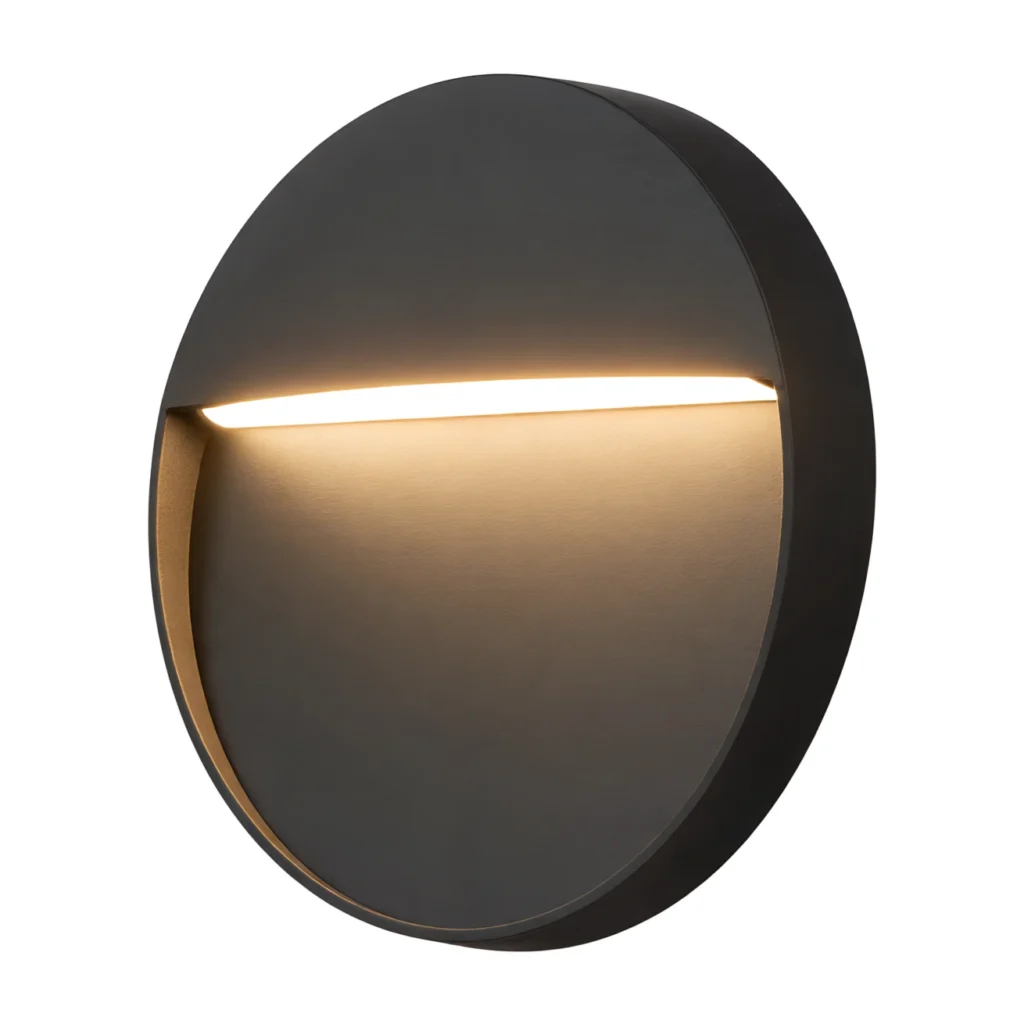

Rav Wall Surface luminaire, indoor and outdoor use with medium asymmetrical optic, recessed into solid walls for general lighting, consisting of, Polyester powder coated ISO 9227 die-cast aluminium housing. it is a surface-mounted LED step light that stands out for its extremely fine design.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-STL35204.2 | 4.2W | LED | 450lm | A121 X B35 mm |
| LP-STL35208.4 | 8.4W | LED | 1013lm | A121 X B35 mm |
| LP-STL35304.2 | 4.2W | LED | 450lm | A121 X B35 mm |
| LP-STL35308.4 | 8.4W | LED | 1013lm | A121 X B35 mm |
Technical Specification
Construction
HousingDie-Casting Aluminum
DiffuserClear / Frosted Glass
Color AvailableWhite, Black & Dark-Gray
ReflectorAluminium Reflector
Optical & Performance
Beam Angle110°
Lifespan>50,000 Hours (L90 B10)
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-20C° ~ 55C°
TMSeries WiringRohsRecycleProtectionPluginLM 80OutdoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
