Photometric
- Item code
- LP-ODL357012
- Output
- 1,440 lm · 12 W
- Beam angle
- 60°
- Peak intensity
- 1,376 cd
- Centre lux at 2 m / 3 m
- 344 / 153 lx
- Beam width at 3 m
- 3.46 m
- BUG rating
- B1-U0-G0
- CRI
- >90
Calculated from rated lumens, power and beam angle for lighting design — not a laboratory measurement.
Wall Surface

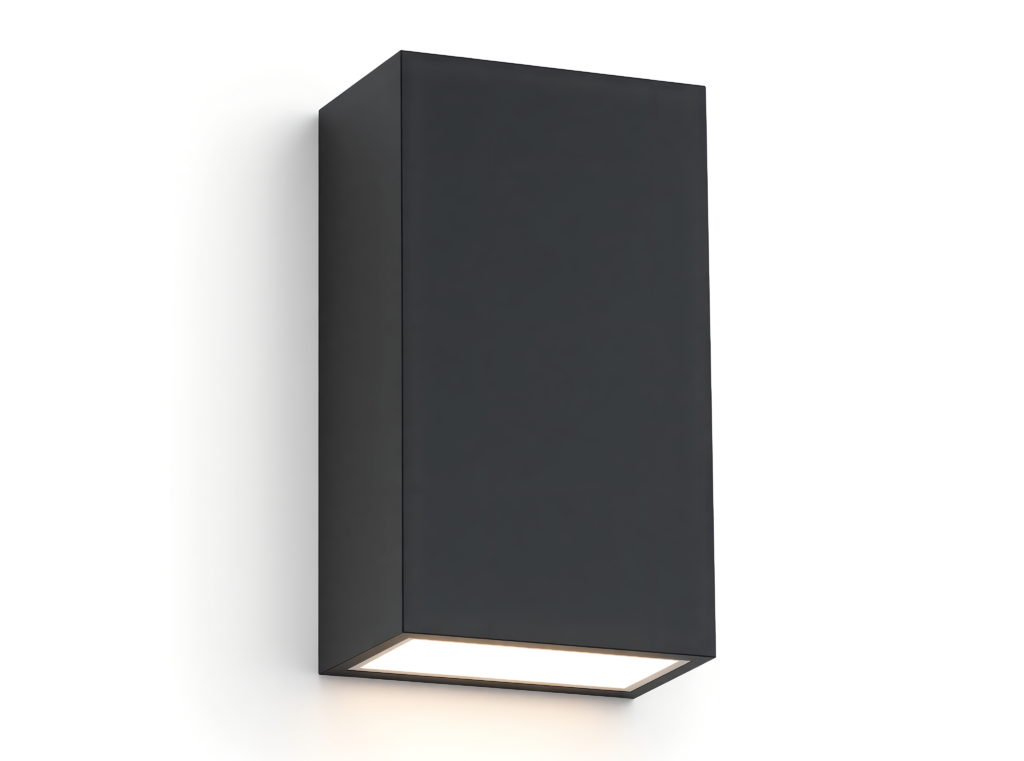

LUXE
Black & Dark Gray
White
Luxe is a modern up and down wall light that illuminate your home perfectly. Luxe is made of Die Cast Aluminum with Clear Glass Diffuser. IP rated with IP65 Protection. It is Ideal for homes, hotels, restaurants, lobby. or any outdoor or indoor type application.
Item Codes
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-ODL357012 | 02x6W | LED | 1440lm | A91 X B160 X C56 mm |
Technical Specification
Construction
HousingDie Cast Aluminum
DiffuserGlass Diffuser
Color AvailableWhite , Black & Dark Gray
ReflectorAluminium Reflector
Optical & Performance
Beam Angle60° / 90°
Lifespan>50,000 Hours (L90 B10)
Electrical
VoltageAC220~240V
LED DriverLight Plus, TriDonic, PHILIPS, OSRAM, MW
Protection & Environment
Working Temperature-10C° ~ 55C°
IP Rating54 / 65
TMSeries WiringRohsRecycleProtectionPluginLM 80OutdoorLEDFlicker FreeFEnergy StarENECCRI 90CidetCEA
